Specifications
warranty :
1 Year
customized support :
OEM, ODM
Place of Origin :
Guangdong, China
Brand Name :
3nh
Model Number :
YG268
Measure Angle :
20/60/85
Measurement Range :
20: 0-2000gu 60:0-1000gu 85: 0-160gu
Division Value :
0.1gu
Displayed Accuracy :
0.01
Measuring Time :
0.5s
Storage :
35000(Basic Mode &Statistic Mode : 1500; Continuou
Description

3nh Car Paint Coating Glossmeter YG268 20 60 85 Degree Surface Glossiness test Machine

Product Description
YG268 Tri-angle Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.

Advantages

3nh Car Paint Coating Glossmeter YG268 20 60 85 Degree Surface Glossiness test Machine

Product Parameters

Model YG268 Tri-angle Gloss Meter
Measuring Angle 20° 60°85°
Measuring Range 20°: 0-2000GU
60°: 0-1000GU
85°: 0-160GU
Division Value 0.1GU
Measuring Modes Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
Accurate Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time Within 30s-120s
Long-time Calibration Automatically check and made the calibration
Language Chinese & English
Storage 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB
PC Software GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range 0-40ºC(32-104° F)
Storage Temperature Range -20-50ºC(-4-122° F)
Humidity Range < 85% RH, without condensation
Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer,Bluetooth

Notification: the technical parameter is only for reference

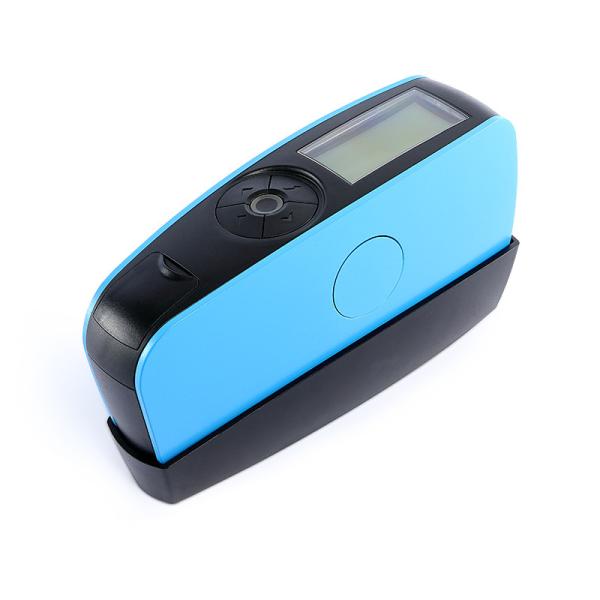

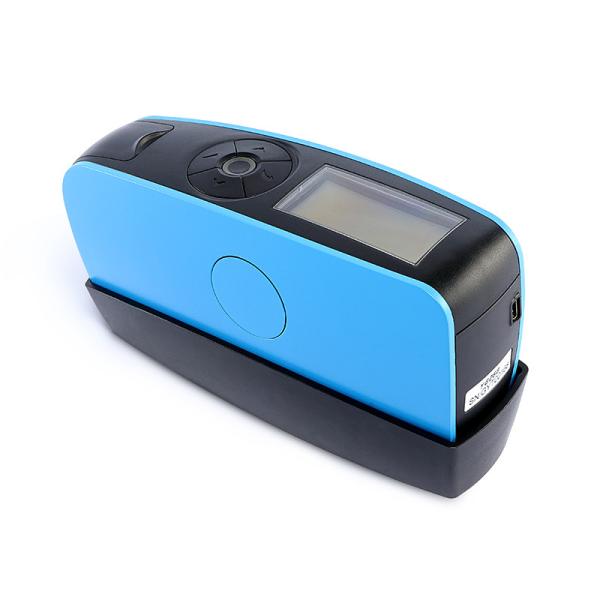

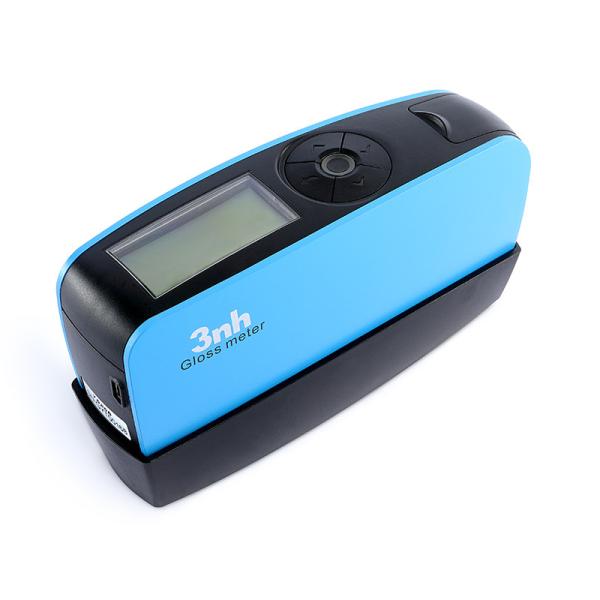

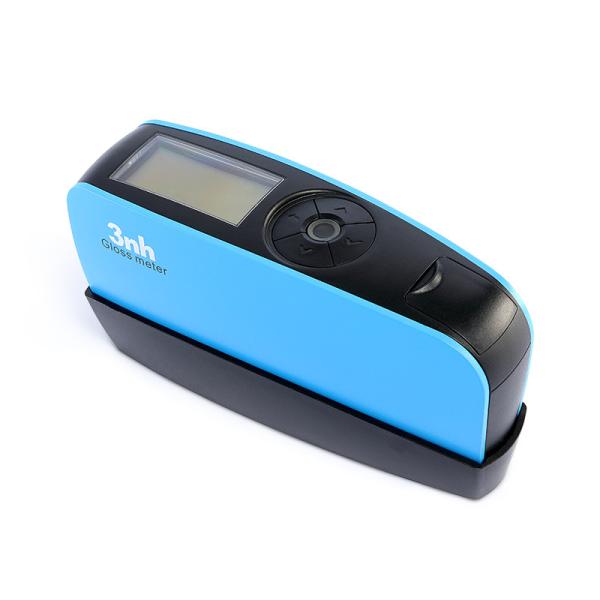

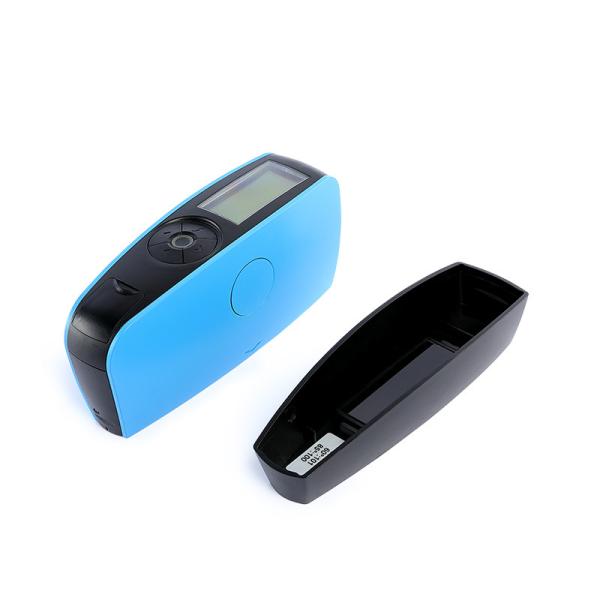

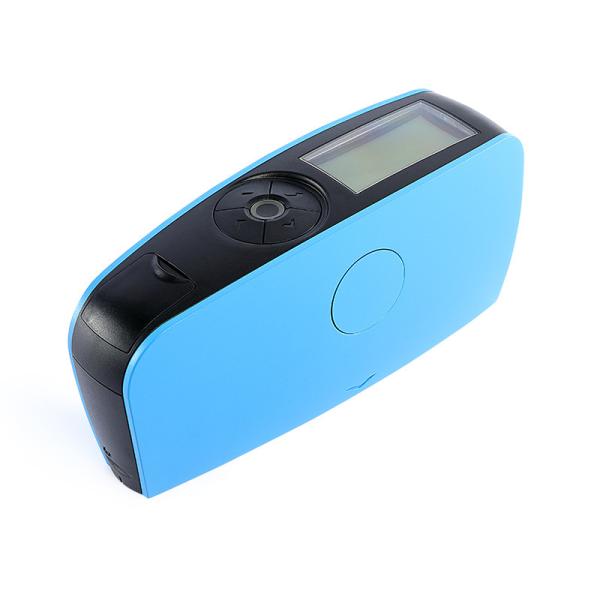

Detailed Images

3nh Car Paint Coating Glossmeter YG268 20 60 85 Degree Surface Glossiness test Machine3nh Car Paint Coating Glossmeter YG268 20 60 85 Degree Surface Glossiness test Machine3nh Car Paint Coating Glossmeter YG268 20 60 85 Degree Surface Glossiness test Machine

3nh Car Paint Coating Glossmeter YG268 20 60 85 Degree Surface Glossiness test Machine

Company Information

3nh Car Paint Coating Glossmeter YG268 20 60 85 Degree Surface Glossiness test Machine

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 26 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

7. Do you support OEM and ODM service?
Answer: Yes, we support. Our MOQ for OEM and ODM service is 5 pcs for one model.

8. What about the warranty?
Answer: We offer 12 months warranaty for the instrument except consumables, and we offer the lifespan maintenenace for all goods.
