High Collection Efficiency Raman Spectroscopy Probe Raman Fiber Probe 1064nm
High Collection Efficiency Raman Spectroscopy Probe Raman Fiber Probe 1064nm
High Collection Efficiency Raman Spectroscopy Probe Raman Fiber Probe 1064nm
High Collection Efficiency Raman Spectroscopy Probe Raman Fiber Probe 1064nm
High Collection Efficiency Raman Spectroscopy Probe Raman Fiber Probe 1064nm
High Collection Efficiency Raman Spectroscopy Probe Raman Fiber Probe 1064nm
Specifications
Brand Name :
JINSP
Model Number :
PR100 PR200 PR300
Place of Origin :
CHINA
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100PCS/ 60 - 80 working days
Delivery Time :
60 - 80 working days
Packaging Details :
International Shipping Package
Excitation Wavelengths :
532 nm, 785 nm, and 1064 nm
Environmental Adaptability :
Withstands high and low temperatures, high-pressure, and is suitable to harsh and extreme reaction conditions
Product Name :
Raman Probe for Automated Sampler in Continuous Flow Reaction Systems
Corrosion Resistance :
Not Resistant To Corrosive Liquid
Fiber Optic Cable :
1.3 M PVC Jacketed As Standard, 3 M Or 5 M Length Are Optional
Compact and Lightweight :
Suitable for routine measurements of liquids and solids in conjunction with a sample chamber
Accepted Payment Methods :
T/T, Paypal, Western Union, L/C, etc.
Product Category :
Industrial Online Instruments
Description

Customizing Raman Probe for Raman Systems Analysis

Achieve unmatched signal accuracy with our optical probes, optimized for superior light capture in complex environments. Their temperature- and pressure-resistant construction makes them perfect for industrial, pharmaceutical, and chemical processes. Tailor the design, size, and mounting interface for seamless integration.

Our flow cells enhance compatibility, supporting multiple optical materials and configurations for peak efficiency. With high chemical resistance and adaptable fittings, they are ideal for aggressive fluids and high-pressure systems, ensuring durability and ease of use.

Product table list and parameters:

/ PR100 PR200 PR201 PR202 PR300
/ Optical Probe LAB Immersion Probe LAB Immersion Probe LAB Immersion Probe Industrial Immersion Probe
Probe Tube Material 304 stainless
steel		 C276 alloy, 304 stainless steel, 316L stainless teel, Monel alloy, or TA2 optional 316L stainless steel, resistant to SIP/CIP
sterilization		 C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional
Outer Diameter 10mm 10mm 16mm 12mm 60mm
Support customizing
Probe Tube Length 80mm 350 mm
Support customizing from 100 mm ~ 350 mm		 270 mm
Support customizing from 100 mm ~ 1000 mm		 120 mm
Support customizing from 120mm ~ 320 mm		 1.9 m
Support customizing from 1 m ~ 3 m
Spectral Range 200 ~ 3900 cm-1 (532 nm or 785 nm excitation wavelength)
230 ~ 3100 cm-1 (1064 nm excitation wavelength)
Sample Type Any sample type L (clear liquid) or S (opaque or turbid liquid) or C (slurries or semi-solids)
Fiber Optic Cable 1.3 m PVC jacketed as standard, 3 m or 5 m length are optional 5 m as standard ,10 m, 50 m or 100 m length are optional; PVC jacket as standard, TPU or silica gel jacket are optional 50 m
Support customizing
Temperature Range 0ºC ~ 100 ºC -40ºC ~ 200 ºC -40 ºC ~ 150 ºC -30 ºC ~ 200 ºC -60 ºC ~ 200 ºC
Maximum Pressure ambient condition 30 MPa 30 MPa 1 MPa 30 MPa
Corrosion Resistance Not resistant to corrosive liquid Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution pH range: 1-14 Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic
solution
Optical Fiber
Configuration		 100 μm excitation fiber, 200 μm collection fiber, N.A. 0.22
Filter Efficiency OD6, customizing is available
Connection Interface FC and SMA

Technical Highlights:

  • A variety of materials are available as options. Flow cells are suitable for processes under high temperature, high pressure, or with strong acid/alkali,etc.
  • With different specifications of interface, flow cells can be coupled with pipelines of different specifications.
  • Special optical design to maximize collection efficiency and Raman intensities.
  • Good sealing and convenient connection.


Applications:

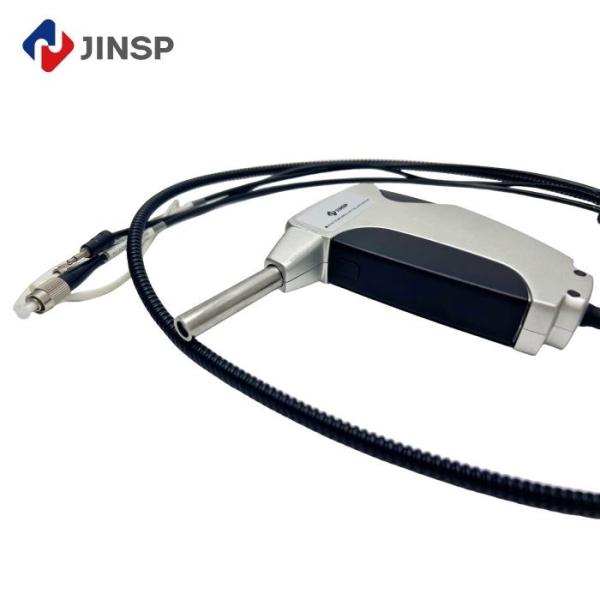

The PR100 is a highly adaptable Raman probe suitable for offline lab measurements at 532 nm, 785 nm, and 1064 nm wavelengths. Its lightweight, space-saving design makes it perfect for routine testing of liquids and solids in sample holders. Beyond benchtop use, it supports microscope integration for detailed Raman imaging and can be configured with flow-through cells and reactors for continuous reaction tracking in industrial settings.

High Collection Efficiency Raman Spectroscopy Probe Raman Fiber Probe 1064nm

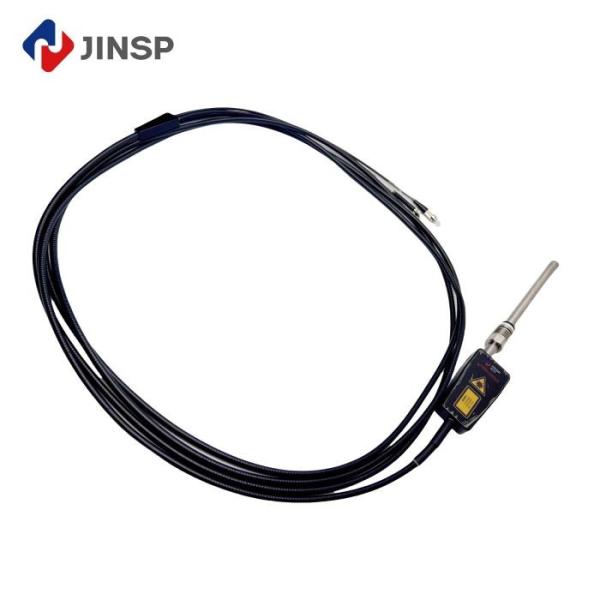

Our PR200/PR201/PR202 probe series provides reliable in-situ monitoring for laboratory reactions. These immersion units feature direct flask insertion capability, with a specialized variant optimized for stirred solution analysis. Multiple construction materials ensure compatibility with extreme process conditions. The lineup includes small-interface (PR200) and medium-interface (PR201) configurations. For bioprocessing applications, the PR202 offers unique advantages with its sterilizable, removable probe section and standardized PG13.5 connection interface.

Engineered to excel in punishing industrial conditions, the PR300 withstands aggressive operational environments with its high-temperature and high-pressure capabilities. The probe's protective housing maintains optical component integrity while the standardized flange connection facilitates seamless reactor integration. Its corrosion-resistant materials and customizable flange specifications make it adaptable to various monitoring scenarios in harsh production settings.

High Collection Efficiency Raman Spectroscopy Probe Raman Fiber Probe 1064nm

Support and Services:

  • The Raman Probe product technical support and services include:
  • Assistance with product installation, setup, and calibration
  • Troubleshooting and diagnosis of any issues or errors
  • Regular maintenance and cleaning recommendations
  • Access to software updates and upgrades
  • Product training and education
  • Technical consultation with experienced support staff

FAQ:

Q: What is the minimum order quantity for the JINSP Raman Probe ?

A: The minimum order quantity for the JINSP Raman Probe is 1PC.

Q: What is the price of the JINSP Raman Probe?

A: The price of the JINSP Raman Probe is negotiable.

Q: What payment terms are accepted for the JINSP Raman Probe ?

A: The accepted payment terms for the JINSP are T/T and Western Union.

Q: What is the delivery time for the JINSP Raman Probe?

A: The delivery time for the JINSP Raman Probe is 40-70 working days.

Q: Where is the JINSP Raman Probe manufactured?

A: All Raman Probe is designed and manufactured in China.
