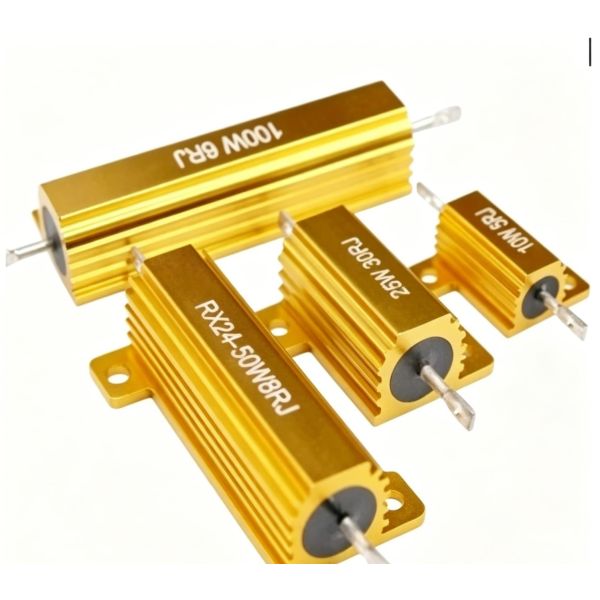

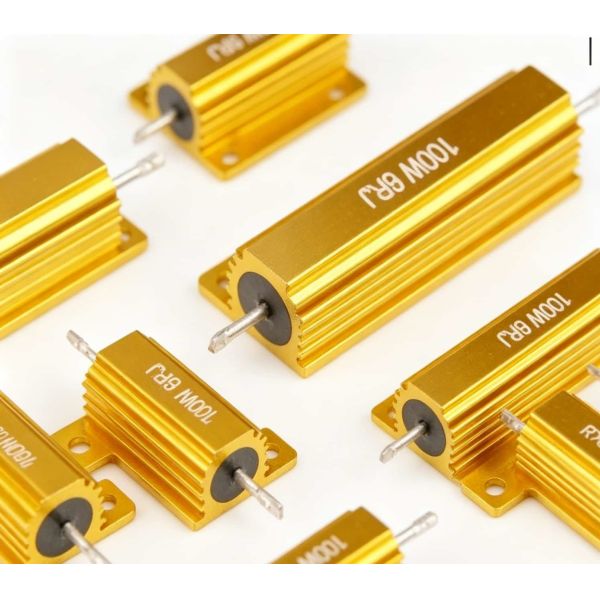

These high-power, gold-plated aluminum-cased fixed resistors are manufactured using an anodized aluminum alloy housing and a fully welded process. The gold oxide coating not only enhances their aesthetics but also provides excellent corrosion resistance and thermal conductivity.

The molded seal effectively prevents moisture, vibration, and dust, ensuring stable operation in harsh environments. Designed for high-power applications, this series of resistors can be directly mounted on the housing or heatsink, significantly improving heat dissipation efficiency and extending product lifespan. They are widely used in industrial control, power electronics, and frequency conversion systems.

Technical Specifications

Non-Inductive Winding Design —— 1. Effectively reduces parasitic inductance, ensuring stable performance in high-frequency and pulse circuits.

Excellent thermal conductivity: The aluminum shell structure and heat sink design enable rapid heat dissipation, enhancing load-bearing capacity.

Rugged and reliable structure: Utilizing a fully welded manufacturing process, it is shock-resistant and impact-resistant, adaptable to various industrial environments.

Superior protection performance: The molded package structure provides excellent moisture, dust, and oxidation resistance.

High long-term stability: Low resistance drift during long-term operation ensures system reliability.

High-power gold-plated aluminum-cased fixed resistors are widely used in:

• Inverters and servo systems: for energy feedback and dynamic braking;
• Power supplies and charging equipment: for current limiting and overload protection;
• Industrial automation control: for testing and load regulation circuits;
• Motor control and welding equipment: for energy absorption and stable current output;
• Power and new energy systems: such as wind power, photovoltaic inverters, and energy storage control modules.
