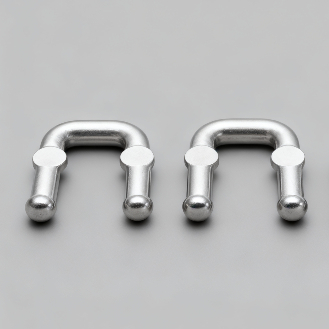

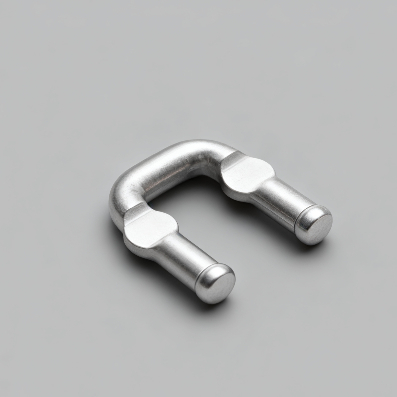

1Milli Ohm Low Resistance Resistor High Stability SHUNT Resistor Alloy Foil
1Milli Ohm Low Resistance Resistor High Stability SHUNT Resistor Alloy Foil
Specifications
Brand Name :
TYOHM
Model Number :
CSR
Place of Origin :
China
MOQ :
1K
Price :
Please contact us for details
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Delivery Time :
7-10 work days
Packaging Details :
T/B
Resistance value :
1~20Ω
Resistance Tolerance :
±5% ( J ) or ±2% ( G )
Short Time Overload :
10 times of rated wattage for 5 seconds ( ±2% )
Resistance to Soldering Heat :
270±5°C for 10±1 seconds / 350±10°C for 3.5±0.5 seconds ( No evidence of mechanical damage )
Power Rating Load :
Rated voltage for 30 minutes
Load Life :
Rated power load 90 minutes ON 30 minutes OFF 70 1000 hours
Description
Durable Low-Inductance Milli Ohm Wire Resistor ( SHUNT )

1. Milli ohm.
2. Low inductance.
3. High stability.
4. It is custom-made 1.Milli ohm.

1Milli Ohm Low Resistance Resistor High Stability SHUNT Resistor Alloy Foil

Product Technical Specifications
Item Specifications
Product Name Milli Ohm Wire Resistors (Shunt)
Operating Temperature Range -55℃ ～ +200℃
Structure Type Metal Wire Wound / Alloy Foil
Inductance Characteristics Extremely low inductance design, suitable for high-frequency measurements
Stability Maintains high stability under various environmental conditions
Manufacturing Method Custom manufacturing available
Standards Compliance Meets RoHS and REACH environmental requirements

Compact Size and Excellent Electrical Performance

The milliohm (shunt) features a compact and modular design, suitable for a variety of devices requiring precise current sensing. Its size can be flexibly customized according to power ratings and mounting methods to meet the needs of high-current measurement systems, while also accommodating miniaturized, high-density circuit board designs.

With its low inductive reactance and high thermal conductivity, this resistor effectively reduces thermal noise and signal drift, providing reliable assurance for high-precision current sampling and power monitoring.

1Milli Ohm Low Resistance Resistor High Stability SHUNT Resistor Alloy Foil
High Precision and Superior Current Sensing Performance

The MILLI OHM WIRE RESISTORS (SHUNT) is a professional resistor designed for high-precision current sensing. This product features an extremely low milli-ohm resistance range, typically between a few milliohms and tens of milliohms, enabling accurate measurement of large currents and ensuring high-precision output for circuit control and energy management.

Its low inductance design maintains signal stability and fast response even in high-frequency and transient current environments, significantly reducing measurement errors.

Furthermore, the resistor element is wound from a highly conductive alloy material, possessing excellent thermal stability and anti-aging properties, maintaining consistent electrical characteristics over long-term use to meet the demands of high-precision measurement and high-reliability applications.
