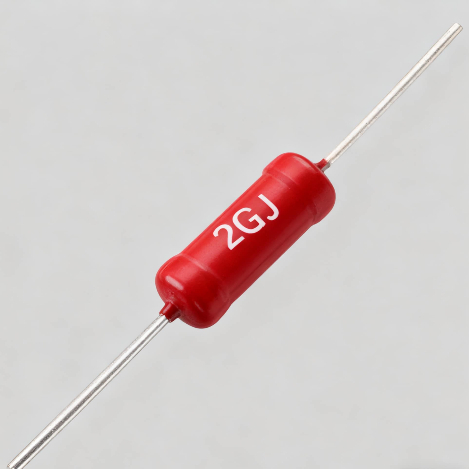

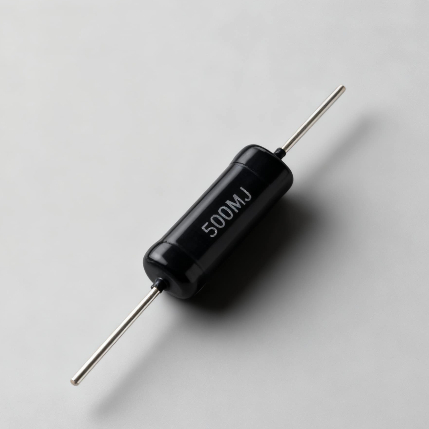

Cylindrical Thick Film High Voltage Resistor
Product Overview

Cylindrical thick-film high-voltage resistors are manufactured using a high-performance ceramic substrate and thick-film sintering process, exhibiting excellent withstand voltage, pulse withstand capability, and long-term stability.

The products are available in silicone or glass dielectric encapsulation, enabling reliable operation in various environments including air, high-voltage oil, and epoxy resin.

Resistance tolerances cover ±1%, ±2%, ±5%, and ±10%, meeting diverse accuracy requirements.

Suitable for high-voltage and surge absorption circuits, these resistors are ideal high-performance components in power supplies, medical equipment, and high-voltage testing equipment.

0.25W ～ 5W Pulse Resistors High Resistance High Voltage 1000VDC

Product Parameters
Item Parameter Description
Product Type Cylindrical Thick Film Inductive High Voltage Resistor
Package Type Silicone Resin Encapsulation / Glass Dielectric Encapsulation
Overload Characteristics
5 times the rated power, but not more than 1.5 times the
maximum continuous working voltage. 5 seconds continuously
Substrate Material 95% or more high-quality alumina ceramic (Al₂O₃)
Resistor Film Material Ruthenium and Palladium thick film paste
Sintering Temperature 850℃ high-temperature sintering
Lead-out Material Tin-plated copper pins
Advantages High voltage resistance, pulse resistance, high stability, moisture resistance
Operating Environment Air, high-pressure oil, epoxy resin
Performance Characteristics

This product utilizes a high thermal conductivity alumina ceramic substrate and precious metal thick-film material, ensuring excellent heat dissipation and electrical stability. The thick-film layer is sintered at 850℃, resulting in a dense and firmly adhered resistive film capable of withstanding high voltage and strong pulse impacts. Tin-plated copper pins ensure good conductivity and reliable soldering. The product features excellent moisture resistance, high voltage resistance, and high long-term stability, making it suitable for harsh environments and high-reliability applications.

0.25W ～ 5W Pulse Resistors High Resistance High Voltage 1000VDC

Applications
  • High-voltage power equipment and power modules
  • Electrostatic spraying equipment and vacuum systems
  • Medical imaging equipment (CT, X-ray machines)
  • High-voltage dividers and testing instruments
  • High-voltage capacitors and precision instruments
