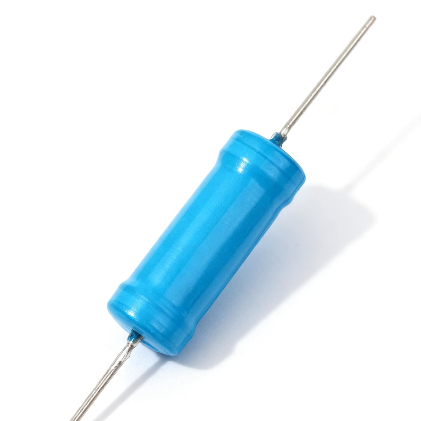

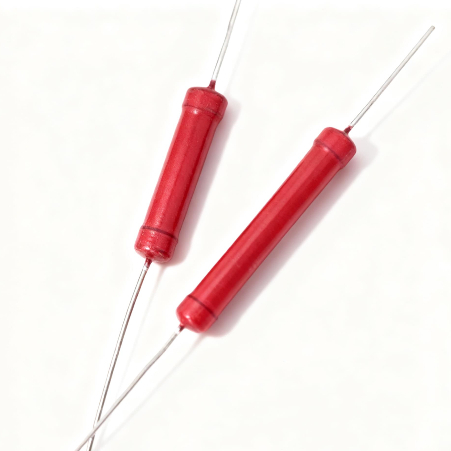

The cylindrical thick-film non-inductive high-voltage resistor is manufactured using advanced thick-film technology, possessing excellent withstand voltage, stability, and reliability.

Its substrate is high-purity alumina ceramic with a purity of over 95%, and the resistive film is formed by sintering precious metal pastes such as silver, ruthenium, and palladium at 850℃, exhibiting good thermal conductivity and electrical properties.

The product is available with silicone or glass encapsulation, enabling stable operation in various environments including air, high-pressure oil, and epoxy resin.

Its small size and high power density make it suitable for high-voltage pulse and voltage regulation systems, meeting the stringent application requirements of industrial and medical fields.

High Voltage and Pulse Withstand Capability: Operates stably under high voltage pulse environments, exhibiting excellent surge withstand performance.

Inductive Structure Design: Effectively reduces the influence of parasitic inductance, ensuring accurate signal transmission in high-frequency and high-voltage systems.

Excellent Thermal Conductivity and Stability: High-purity ceramic substrate and precious metal thick-film technology ensure stable resistance under long-term load.

Strong Moisture Resistance and Corrosion Resistance: Adapts to complex environments, maintaining reliable electrical characteristics even after long-term use.

Multiple Packaging Options: Silicone or glass packaging structures are available to suit different media environments, depending on application requirements.

Cylindrical thick-film non-inductive high-voltage resistors are widely used in high-voltage and pulse control systems, especially suitable for the following equipment:

• High Voltage Power & Test Equipment
• Electrostatic Devices & Sprayers
• Medical CT & X-ray Systems
• Vacuum Equipment & Pressure Circuits
• High Voltage Instruments & Energy Absorption Systems
