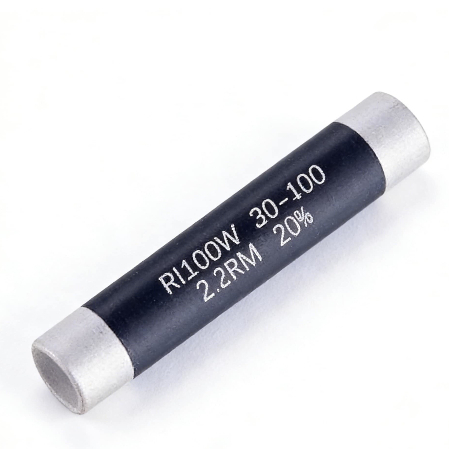

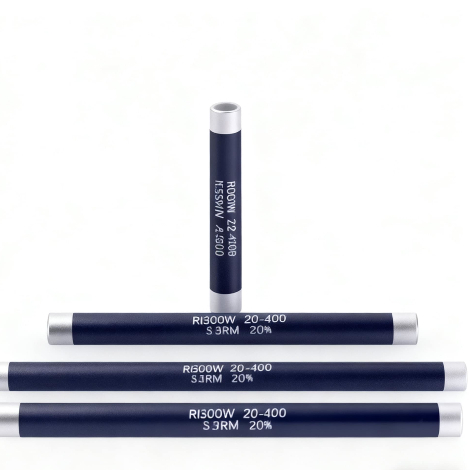

25W ～ 500W Non Inductive Resistance Glaze Film Resistor
25W ～ 500W Non Inductive Resistance Glaze Film Resistor
Specifications
Place of Origin :
China
Brand Name :
TYOHM
MOQ :
0.5K
Price :
Please contact us for details
Packaging Details :
T/B
Delivery Time :
7-10 work days
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Power Value :
25W ～ 500W
Resistance Range :
2.2Ω ～ 10KΩ
Resistance Accuracy :
±10% ; ±5%
Temperature Coefficient :
150~500 ppm/°C
Operating temperature :
-55°C ~ 125°C
Color :
Black
Description
Cylindrical High-Frequency Non-Inductive Glaze Film Resistor
Product Overview

Cylindrical high-frequency non-inductive glaze film resistors are manufactured using advanced metal thin-film technology. The resistive film layer is uniformly attached to the surface of a high-performance ceramic substrate in a surrounding manner, featuring high power, wide resistance range, and excellent frequency characteristics. Specifically designed for high-frequency, AC/DC, or pulse circuits, these resistors effectively suppress parasitic inductance, ensuring the stability and accuracy of signal transmission. Their compact structure and reliable performance make them ideal load and absorption components for high-power electronic systems.

Product Parameters｜Technical Specifications
Item Parameter Description
Product Name Cylindrical High-Frequency Non-Inductive Enamel Film Resistor
Manufacturing Process Metal Thin Film Surround Deposition Process
Power Range 0.5W ～ 10W
Resistance Range 0.1Ω ～ 1MΩ
Resistance Accuracy ±1%, ±2%, ±5%
Temperature Coefficient ±50～±200 ppm/℃
Substrate Material High-purity alumina ceramic (Al₂O₃)
Resistor Film Material Metal enamel film (high-temperature sintering)
Operating Temperature Range -55℃ ～ +155℃
Lead Material Tinned copper wire
Product Characteristics

This series of resistors utilizes a high-temperature glaze film sintering process, ensuring a tight bond between the resistive film layer and the substrate, resulting in excellent heat dissipation and electrical stability. The non-inductive winding structure effectively eliminates parasitic inductance, achieving fast frequency response and low noise performance. The resistors are small in size, lightweight, and highly conductive, while also possessing high insulation and excellent pulse resistance. Their high-temperature resistance, moisture resistance, and long lifespan ensure long-term reliable operation under complex conditions.

Applications
  • High-frequency amplifier circuits and filtering systems
  • Radio frequency power amplifiers (RF PAs)
  • Communication and radar equipment
  • Power converters and inverters
  • Precision measuring instruments and testing systems
  • Industrial power supplies and dummy load absorption circuits
