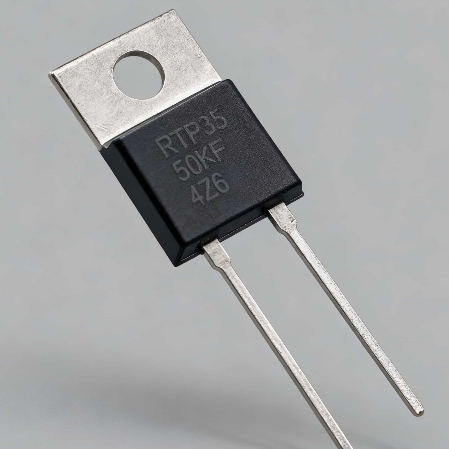

RTP35 Non Inductive Resistors 35W Power High Power Wire Wound Resistor
RTP35 Non Inductive Resistors 35W Power High Power Wire Wound Resistor
Specifications
Place of Origin :
China
Brand Name :
TYOHM
MOQ :
1K
Price :
Please contact us for details
Packaging Details :
T/B
Delivery Time :
7-10 work days
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Package :
TO-220 Power Package
Operating Temperature Range :
0°C ~ 150°C
Rated Power (Heater) :
35W ( 25℃ )
Rated Power (Without Heatsink) :
2.5W ( 25℃ )
Inductance :
<1 μH
Material :
Copper ; Alumina ; plastic
Description
RTP35 Power Type Non-Inductive Resistor
Product Overview

The RTP35 series power type non-inductive resistors utilize a high-performance TO-220 package, offering excellent heat dissipation and stable electrical characteristics. This product has a rated power of up to 35W when mounted with a heatsink, and a rated power of 2.5W at room temperature (25°C) without a heatsink. Its non-inductive design effectively eliminates the influence of parasitic inductance on high-frequency circuits, ensuring signal purity and rapid response, making it particularly suitable for electronic systems with high precision and stability requirements. The RTP35 is not only compact and easy to install, but also maintains excellent electrical reliability at high power densities.

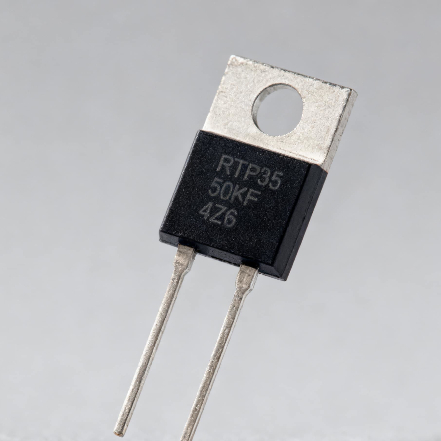

RTP35 Non Inductive Resistors 35W Power High Power Wire Wound Resistor

Product Parameters｜Technical Specifications
Item Parameter Description
Product Model RTP35 Power Type Non-Inductive Resistor
Rated Power (Heater) 35W ( 25℃ )
Rated Power (Without Heatsink) 2.5W ( 25℃ )
Mounting Method Single screw mounting, easy for heatsink installation
Insulation Performance Conductive parts are completely insulated from the metal base plate
Housing Material High-protection molded plastic housing
Resistance Characteristics Non-inductive design, suitable for high-frequency circuits
Performance Characteristics｜Key Features

The RTP35 resistor features a highly insulated metal substrate and molded plastic housing, enhancing mechanical strength and environmental resistance while ensuring safety and reliability. Its non-inductive structure is particularly suitable for high-frequency and pulsed load applications, guaranteeing undistorted output waveforms. It can be mounted to a heatsink with a single screw, achieving high power density and excellent thermal conductivity. The insulation design between the conductive layer and the metal substrate provides excellent electrical isolation, effectively preventing leakage or interference problems.

RTP35 Non Inductive Resistors 35W Power High Power Wire Wound Resistor

Applications
  • RF power amplifiers and buffer circuits
  • Switching power supplies and regulated power supply modules
  • Automation controllers and uninterruptible power supplies (UPS)
  • Low-energy pulsed loads and power regulation circuits
