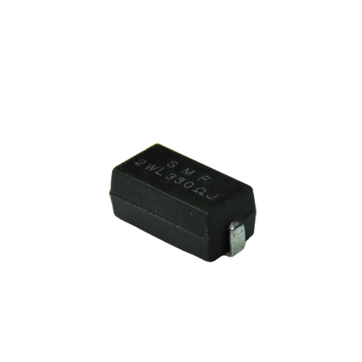

Durable and Stable 10 to 2M Ohm 2WL Automotive Resistors Metal Film Chip Resistors
Durable and Stable 10 to 2M Ohm 2WL Automotive Resistors Metal Film Chip Resistors
Specifications
Brand Name :
TYOHM
Model Number :
SMF
Place of Origin :
China
MOQ :
1K
Price :
Please contact us for details
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Delivery Time :
7-10 work days
Packaging Details :
T/B
Short Time Overload :
5 times of rated wattage for 5 seconds ( ±2% )
Dielectric Withstanding Voltage :
AC 500V for 1 minutes ( No evidence of mechanical damage or insulation breakdown )
Insulation Resistance :
10,000MΩ ( DC 500V megger )
Solder-ability :
235±5°C for 2 seconds ( Minimum 95% coverage )
Resistance to Soldering Heat :
270±5°C for 10±1 seconds ( No evidence of mechanical damage )
Moisture-proof Load Life :
Rated power load 90 minutes ON 30 minutes OFF 40°C 95% RH 500 hours ( ΔR/R≤±2% )
Description
Automotive High Reliability Power Metal Film Chip Resistors
  1. Flameproof UL94V0 molded package, resistant to heat, humidity & insulation.
  2. Special design for automatic surface mounting.
  3. Excellent mechanical strength & electrical stability.
  4. Reducing assembly costs.

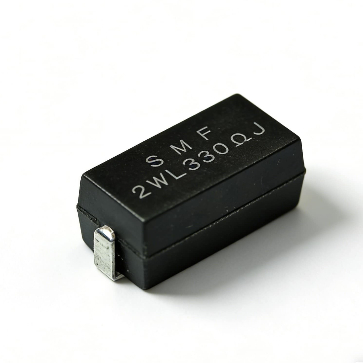

  5. AEC-Q200 qualified.Durable and Stable 10 to 2M Ohm 2WL Automotive Resistors Metal Film Chip Resistors
Product Overview

Power-type metal film chip resistors are high-performance resistive components designed specifically for high-power-density circuits and surface-mount (SMT) applications.

This series features excellent heat resistance, moisture resistance, and insulation properties, enabling stable operation in high-temperature and complex environments. Utilizing a metal film structure, it maintains stable resistance even under high power loads.

Its structure is optimized for automated production lines, effectively reducing assembly costs and improving production efficiency, meeting the miniaturization and high reliability requirements of modern electronic devices.

Product Technical Specifications
Item Parameter Description
Product Name Power Type Metal Film Resistor
Power Range 2WL
Resistance Range 10Ω ～ 2MΩ
Resistance Tolerance ±1%, ±5%
Temperature Coefficient ±100ppm/°C
Operating Temperature Range -55°C ～ +200°C
Package Type SMD Surface Mount
Encapsulation Material Flame Retardant Epoxy Resin
Durable and Stable 10 to 2M Ohm 2WL Automotive Resistors Metal Film Chip Resistors
Product Performance Advantages

High Power Handling Capacity Capability
Optimized metal film structure design enables higher power density in a small size.

Flameproof & Environmental Resistance
High temperature resistance, humidity resistance, and excellent insulation properties.

Excellent Mechanical Strength
Molded encapsulation effectively prevents mechanical stress damage, ensuring long-term reliability.

Low Assembly Cost
Supports automated surface mount technology, simplifying the production process and reducing assembly costs.

Applications

Power Metal Film Resistors are widely used in:

  • Power Conversion & Regulation Modules
  • Automotive Control Systems
  • Industrial Automation Equipment
  • Communication & Networking Devices
  • Home Appliances & Smart Devices
