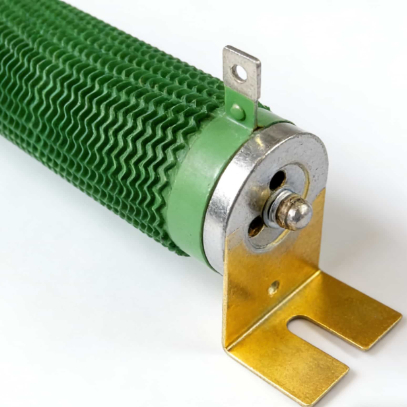

Ripple Painted High Power Corrugated Wire Wound Resistors
Ripple Painted High Power Corrugated Wire Wound Resistors
Specifications
Place of Origin :
China
Brand Name :
TYOHM
MOQ :
0.5K
Price :
Please contact us for details
Packaging Details :
T/B
Delivery Time :
7-10 work days
Payment Terms :
T/T
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
overload :
10 times of rated wattage for 10 seconds. ( ±2% )
Terminal tensile strength :
20N，30S
collision :
Frequency 48-80 times/minute, 2000 times
Vibrate :
10～500Hz，0.75mmm or 98m/s²，6h
Solderability :
Welding groove method 235 ± 5 ℃, 2s
Steady damp-heat :
40±2℃，93±3%RH，1000h
Description

Ripple Painted Wire Wound Resistor

Product Overview

Corrugated glaze resistors utilize high-quality resistance wire wound on a ceramic substrate and coated with a high-temperature insulating glaze layer, resulting in excellent heat dissipation and high-temperature load capacity.

The corrugated structure effectively increases the heat dissipation area, allowing the resistor to maintain stable resistance characteristics and low temperature rise even under high power conditions.

This product employs a fully welded structure, ensuring reliable contact and long-term stability, making it an ideal choice for high-power applications.

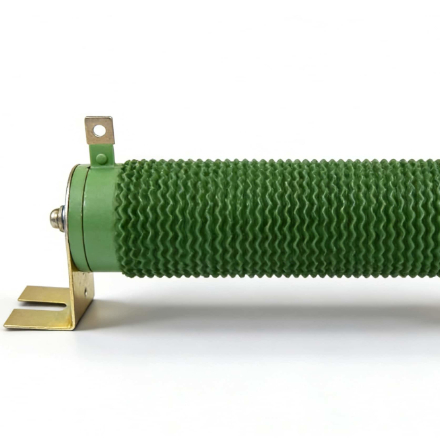

Ripple Painted High Power Corrugated Wire Wound Resistors

Product Parameters

Item Parameter Description
Product Name Corrugated Wirewound Resistor
Manufacturing Process High-temperature corrugated wire winding + insulating varnish encapsulation structure
Resistance Accuracy ±1%, ±2%, ±5%, ±10%
Housing Material High-strength ceramic or metal tube
Terminal Structure Fully soldered or screw-mounted
Optional Accessories Mounting bracket, heat sink (optional)

Key Features

This resistor features a wide power range and excellent high-temperature load performance, enabling stable operation in high-temperature, high-humidity, or high-vibration environments. Its all-welded structure design ensures a robust and reliable conductive path and excellent resistance to mechanical shock. The surface insulating varnish layer provides moisture-proof, dust-proof, and corrosion-resistant properties, extending its overall service life. Optional mounting accessories are also available for flexible installation and heat dissipation in various devices.

Ripple Painted High Power Corrugated Wire Wound Resistors

Applications

  • Large power supplies and power control equipment
  • Electrical drives and automation systems
  • Locomotive, elevator, and crane braking circuits
  • Motor starting and speed control systems
  • Electrical testing and dummy load devices
