1. Super heat dissipation with small linear temperature coefficient

2. Instant overload capability with low noise figure and low annual shift on resistance values

3. Flameproof construction with lightweight design and lower cost than enamel types

4. Durable winding wires that outperform enamel types in high temperature environments

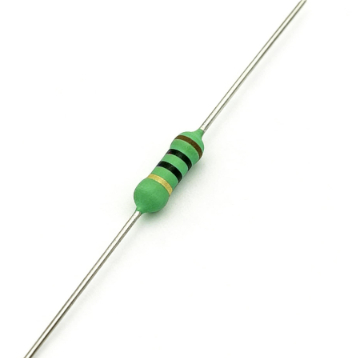

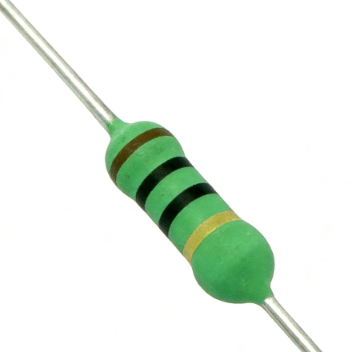

Flameproof Small Type Wire Wound Resistors are precision resistive components that combine high power handling capacity with excellent heat resistance.

This series is constructed from a high thermal conductivity ceramic substrate and high-quality resistance alloy wire, exhibiting superior heat dissipation efficiency and extremely low linear temperature coefficient, ensuring stable operation under high temperature and high load conditions.

The surface is coated with a flameproof coating, effectively preventing combustion and arcing, providing superior safety compared to traditional enamel resistors.

Furthermore, the Small Type design allows for high power density while maintaining a compact size, offering greater installation flexibility and making it particularly suitable for applications such as space-constrained power modules and compact electronic control systems.

Its lightweight package not only saves installation space but also reduces assembly costs, providing a more reliable solution for modern high-density electronic designs.

Superior Heat Dissipation & Stability

The unique wire-wound structure combined with the ceramic substrate provides excellent heat conduction and temperature control performance.

Instant Overload & Low Noise

Withstands instantaneous current surges while maintaining low noise characteristics and extremely low resistance drift.

Flameproof & Heat Resistant

The surface coating has passed flame retardant testing, preventing arcing and combustion, ensuring safety and reliability.

Durable Alloy Wire
Uses high-strength resistance alloy wire, offering superior high-temperature durability and mechanical stability compared to porcelain-enameled resistors.

Wire Wound Resistors, Flameproof are widely used in:

• Power Supply & Chargers
• Motor Control Circuits
• Instrumentation Equipment
• Industrial Automation Systems
• Overload Protection & Current Limiting Circuits
