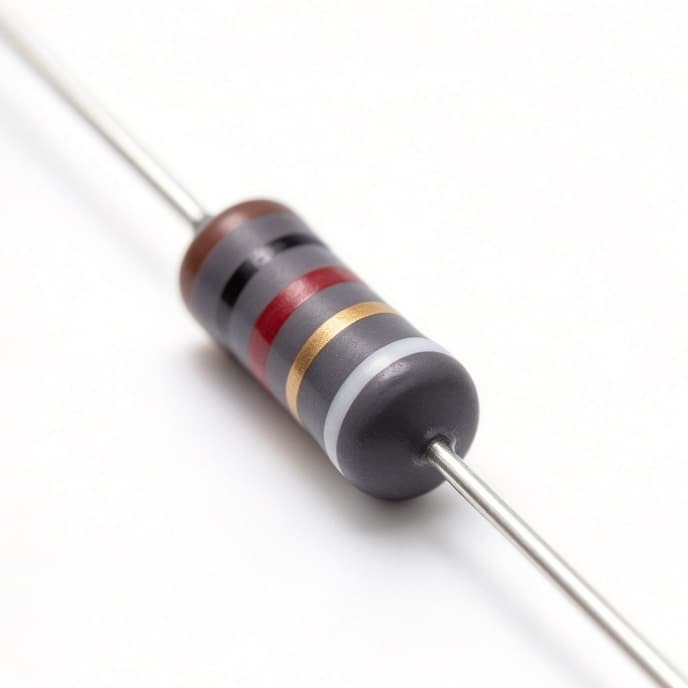

1/2W 5% Anti-Pulse Resistor NRSS Small Non-Inductive Type
1/2W 5% Anti-Pulse Resistor NRSS Small Non-Inductive Type
1/2W 5% Anti-Pulse Resistor NRSS Small Non-Inductive Type
1/2W 5% Anti-Pulse Resistor NRSS Small Non-Inductive Type
Specifications
Max. Working Voltage :
350V
Price :
Please contact us for details
Packaging Details :
T/B
Resistance Accuracy :
±5% ( J )
Model Number :
NRSS
Supply Ability :
Depending on the specific circumstances, it generally takes 5-7 work days to complete
Terminal Strength :
1 kg
Payment Terms :
T/T
Delivery Time :
7-10 work days
Resistance Temp. Coeff. :
±300 ppm/°C
Place of Origin :
China
Resistance Range(Ω) :
0.22~200K
Brand Name :
TYOHM
Rated wattage(W) :
1/2W
MOQ :
2K
Description
Features

  1. High power, Small body size.

  2. Excellent pulse characteristics.

  3. Flameproof painting, resistant to heat & solvents.

  4. Very low inductance (less than 1 μH).

Product Overview

The NRSS 1/2W 5% anti-pulse non-inductive resistor is a compact resistor designed for electronic circuit applications where pulse characteristics and low inductance are important selection considerations. It features flameproof coating with resistance to heat and solvents, making it a candidate component for power supply circuits, electronic equipment, and pulse-related circuit designs.

Technical Specifications
Parameter Specification
Series NRSS
Product Type Anti-Pulse Non-Inductive Resistor, Small Type
Rated Power 1/2W
Resistance Tolerance ±5% (J)
Resistance Range 0.22Ω–200kΩ

1/2W 5% Anti-Pulse Resistor NRSS Small Non-Inductive Type

Applications
1. Power Supply Circuits

The NRSS non-inductive resistor can be considered for positions in power supply circuits where pulse characteristics and low inductance are relevant to component selection. Engineers should evaluate circuit voltage, current, transient waveform, and rated power before choosing a resistance value.

2. Electronic Equipment and PCB Designs

Its small-type construction makes the NRSS series a candidate for compact electronic assemblies and PCB component selection. Layout evaluation should include pad design, thermal conditions, and clearance from adjacent components.

3. Pulse-Related Electronic Circuits

For circuits exposed to pulse loads, the NRSS series can be evaluated as an anti-pulse resistor option. Suitability depends on pulse amplitude, duration, repetition rate, and energy.

4. Industrial Electronic Equipment

The series may be evaluated for industrial control and general electronic equipment according to operating temperature, resistance value, and electrical load requirements.
