SWIR Plastic Bottle Sorting Machine 1200mm Belt Bottle Sorting Equipment
SWIR Plastic Bottle Sorting Machine 1200mm Belt Bottle Sorting Equipment
Specifications
Model :
HPB1
Belt Width (mm) :
1200
Air Nozzle :
88
Throughput (t/h) :
1.5~3.0
Power (kW) :
7
Dimension (mm) :
9600×2000×2900
Brand Name :
PHOENIX
Model Number :
HPB AI-SWIR Sorter
Place of Origin :
Hefei
MOQ :
1
Price :
Price Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,,
Delivery Time :
5-8 work days
Description
HPB Series Plastic Bottle Sorting Machine
The HPB series intelligent plastic bottle sorting machine is engineered for efficient sorting of mixed plastic bottles, handling both bale form and loose plastic bottles by material and color classification.
Advanced Sorting Technology
HPB series bottle sorting equipment integrates cutting-edge deep learning and visible light technology to accurately detect and remove bottles with different colors. The system supports separation of PET and non-PET bottle materials including PP, PE, PC, PS, ABS, PVC, PA, and more.
Multi-Technology Integration
To meet the challenges of dynamic market requirements, HPB series plastic bottle sorting machines can be equipped with NIR technology, dual-vision UV technology, or their combination to achieve comprehensive sorting capabilities for color, shape, material, and aging plastic bottles in a single machine.
The compact design of the HPB series bottle sorting machine ensures seamless integration into both new and existing processing plants, optimizing space utilization while maintaining high throughput performance.

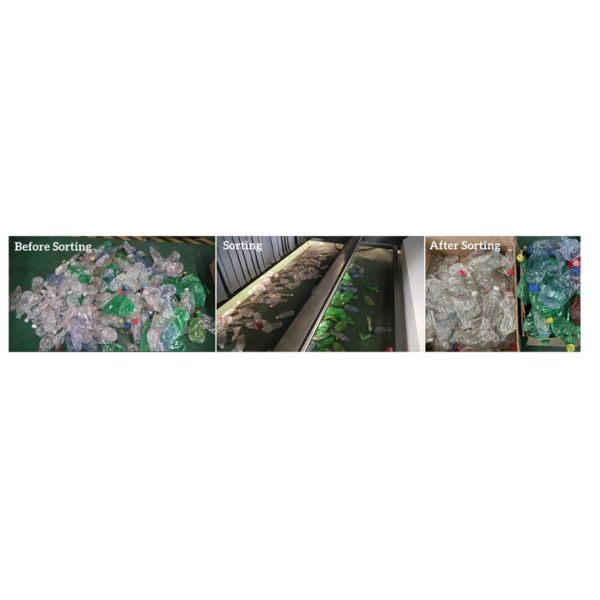

Sorting Applications
SWIR Plastic Bottle Sorting Machine 1200mm Belt Bottle Sorting Equipment
Technical Specifications
Model Belt Width (mm) Air Nozzle Throughput (t/h) Air Pressure (MPa) Air Consumption (m³/min) Power (kW) Unpacked Weight (kg) Dimension (mm)
HPB1 1200 88 1.5~3.0 0.6~0.8 <3.5 7 4000 9600*2000*2900
HPB2 2000 160 3.0~4.0 0.6~0.8 <6.5 12 5000 9600*3200*2900
HPB3 2800 224 4.0~6.0 0.6~0.8 <9.0 16 6500 9600*4000*2900
