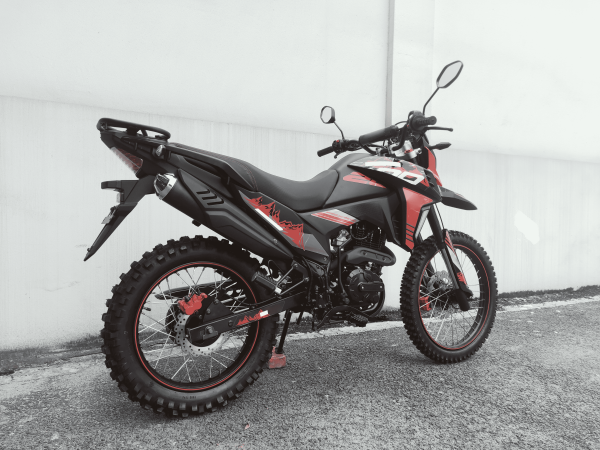

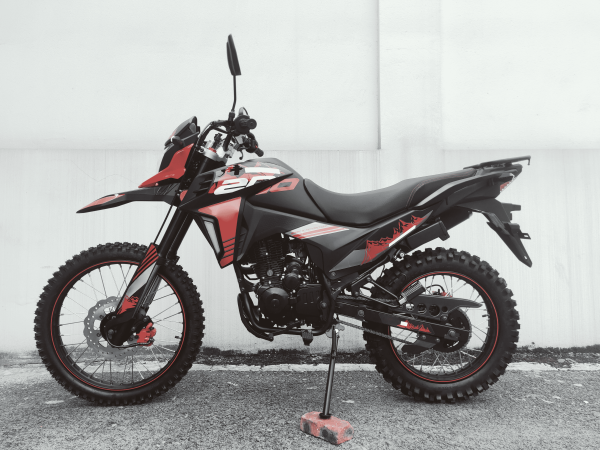

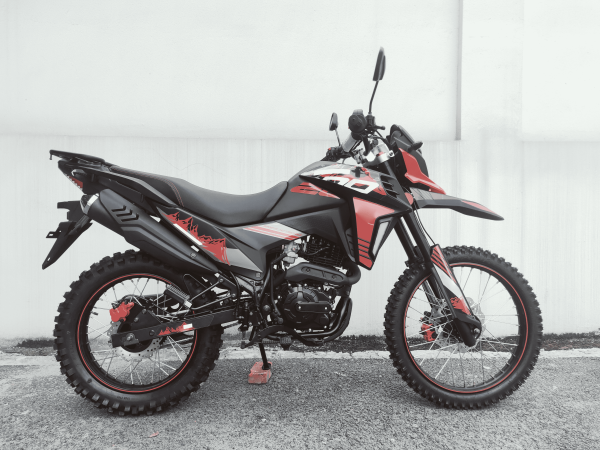

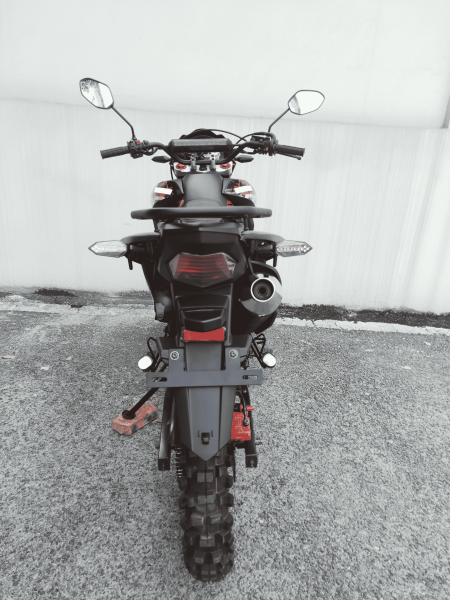

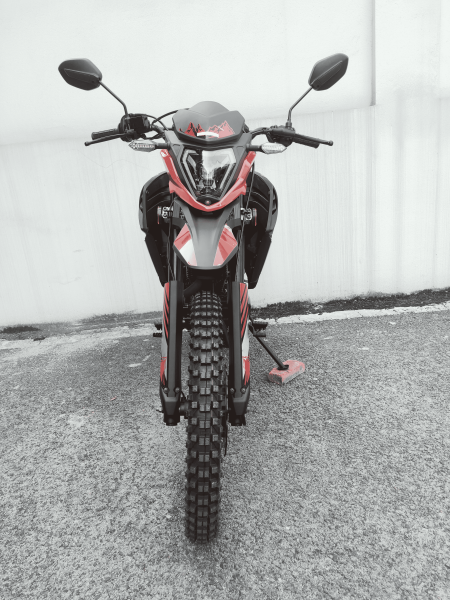

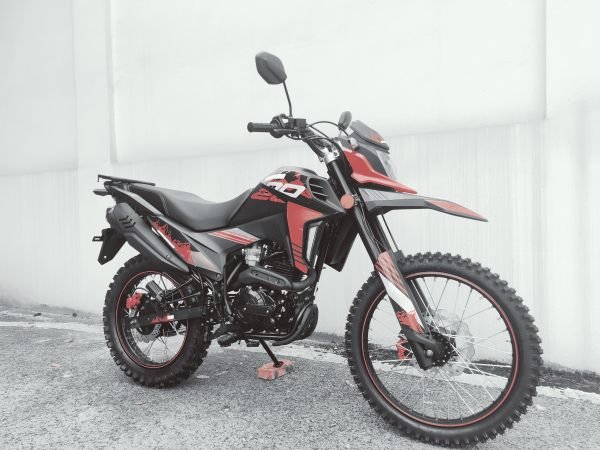

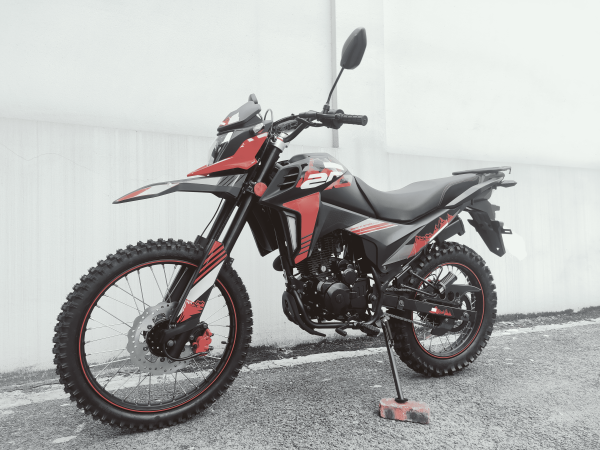

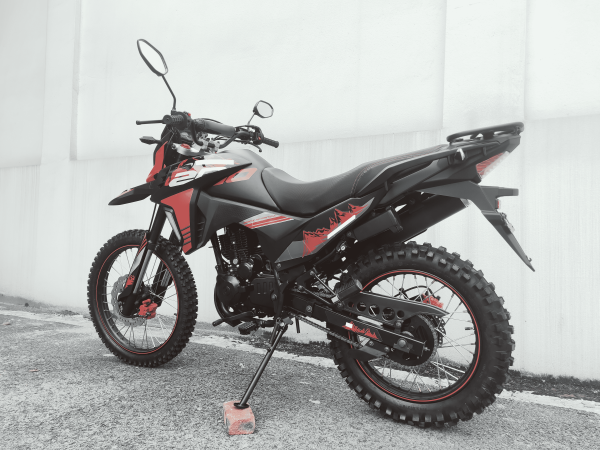

YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
YH200GY-G Off Road Motorcycle 200cc Water Cooled Dirt bike Honda Suzuki Yamaha Bajaj TVS
Specifications
Max. Torque :
14.5N.m
Max. Power :
10.5Kw/h
Engine Type :
Single-cylinder, water-cooled, four-stroke
Rear Braking :
Disc brakes
Start System :
Electric kick start
Ignition Type :
CDI
MOQ :
96PCS
Brand Name :
OEM
Model Number :
YH200GY-G
Place of Origin :
Chongqing, China
MOQ :
40HQ
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Customized
Delivery Time :
45 work days
Packaging Details :
SKD 96PCS/40HQ，CKD 147PCS/40HQ
Front Braking :
Disc brakes
Displacement :
197CC
Engine :
CG200
Description

Description:

CG200 engine, Single-cylinder, four-stroke, air-cooled engine with internal and external balance shafts, 12V/12-pole, 5/6-speed transmission; inverted front fork, single rear center shock absorber with rocker arm, large swingarm, front and rear disc brakes, slatted wheels, rear grab handle, muffler, bumper with engine guard/barrel guard, rear rack, full LED lighting, standard rearview mirrors.

Specifications:

Item

Parameter

Dimensions (Length x Width x Height)

2120 x820x 1210

Seat Height

870mm

Wheelbase

1385mm

Minimum Ground Clearance

280mm

Maximum Load

150kg

Steering Angle

40

Side Stand Tilt Angle

14

Ride Capacity

2 Person

Dry Weight

96kg

Fuel Tank Capacity

12L

Front Braking System

Disc brakes

Rear Braking System

Disc brakes

Front Tire Size

80/100-21

Rear Tire Size

100/100-18

Battery Size

12V/6.5Ah

Engine Type

Single-cylinder, water-cooled, four-stroke

Engine displacement

197CC

Bore x stroke

65.5×66.2

Compression ratio

9.0:1

Maximum power

10.5Kw/h

Maximum torque

14.5N.m

Maximum speed

100Km/h

Start-up acceleration

10S

Overtaking acceleration

11S

Lubrication method

Pressure, Splash

Oil volume

1.2L

Clutch type

Multi-plate wet clutch, manual

Ignition method

CDI

Spark plug

A8RTC

Starting method

Electric kick starter

Transmission method

Chain drive

Final gear ratio

13:43

Packaging parameters:

SKD

CKD

Package Dimensions (Length x Width x Height)

1760*460*840

1400*770*440

Gross Weight

145kg

115kg

Quantity

96

147

Frequently Asked Questions:

Q1. About us:

A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.

Q2. Payment Terms:

A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.

Q3. Delivery Timeline:

A: Depending on the order quantity, usually around 45 working days

Q4. Customization:

A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.

Q5. After-sales Service:

A: We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
