Specifications
Brand Name :
UNIVEE
Model Number :
U-DF
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
8-10 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Backwash Duration :
5-10 Minutes
Cleaning Method :
Backwashing
Disc Material :
Polypropylene
Backwash Frequency :
Every 24-48 Hours
Disc Diameter :
2100mm
Filter Media :
Cloth, Mesh, Or Paper
Cost :
Affordable
Filtration Method :
Rotary Discs
Description

Product Description:

The Vacuum Disc Filter works by using vacuum absorb technology to draw the liquid through the filter media.

Disc filter is a kind of continuous vacuum filtration equipment, it is mainly consisted with tank, main shaft, filtrate disc, distribution valve, material stripping device washing unit, drive unit, discharge unit etc.

The filtration cell of disc filter lines up together, which is made of shaped round filter disc. The piled material layer remains in the groove or ringlike edges when the slurry flows passed the filter disc. The back washing process ensures the water washing from the inner to outside of the filter disc, which can flush the solid down and discharge from the sewage outlet.

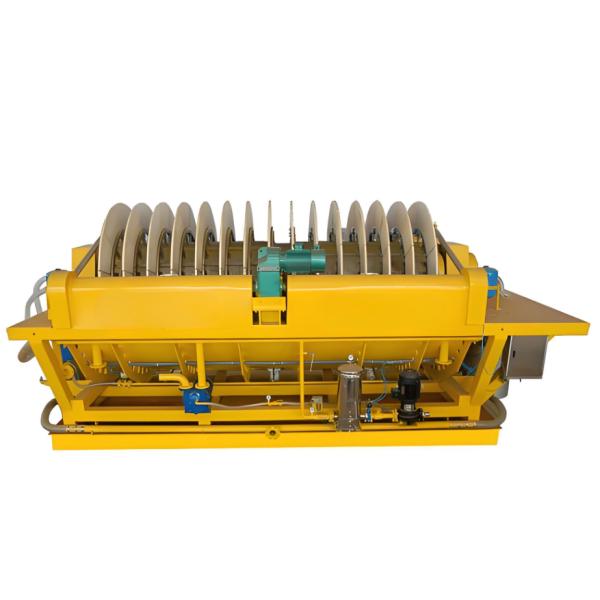

Polypropylene Disc Filter Efficient Machine Backwashing System Rotary Filtration

Technical Parameters:

Filtration Area 60 m2
Quantiy of Disc 5 pcs
Power 5.5 Kw
Capacity
0.2-1.2t/h·m2

Applications:

  • Gold Concentration
  • Copper Concentration
  • Iron Concentration
  • Zinc Concentration
  • Lead Concentration
  • Lead and Zinc Tailings
  • Fine Coal Concentration
  • Cyanide Residue
  • Zinc Oxide

Working Principles:

The filter disc absorbs the slurry through holes by the function of vacuum negative pressure and form piled material layer. The filtrate shall be discharged from inside of filter plate through pipes, distribution valve and discharging tank.

After transferring the cake out of hopper, clean the filter cake and the cleaning can be omitted if not required.

The cake absorbed on the filter disc shall be transferred to the drying area and continue dewatering under vacuum effect.

After the cake dewatered, it transfers to the unloading area, and unload the cake with ceramic drawknife.

Polypropylene Disc Filter Efficient Machine Backwashing System Rotary Filtration

Packing and Shipping:

Product Packaging:

  • Each disc filter product is packaged in a sturdy cardboard box.
  • The box will be securely sealed with tape to prevent any damage during shipping.
  • A label with the product information and handling instructions will be attached to the box.

Shipping:

  • The disc filter product will be shipped via a reputable courier service.
  • The shipment will be fully insured against any damage or loss during transit.
  • Delivery times will vary depending on the destination, but customers can expect their order to arrive within the estimated timeframe provided by the courier service.

FAQ:

Q: What is the brand name of this disc filter product?

A: The brand name of this disc filter product is UNIVEE.

Q: Where is this disc filter product made?

A: This disc filter product is made in China.

Q: What is the filtration efficiency of this disc filter product?

A: The filtration efficiency of this disc filter product is up to 98%.
