Product Description:

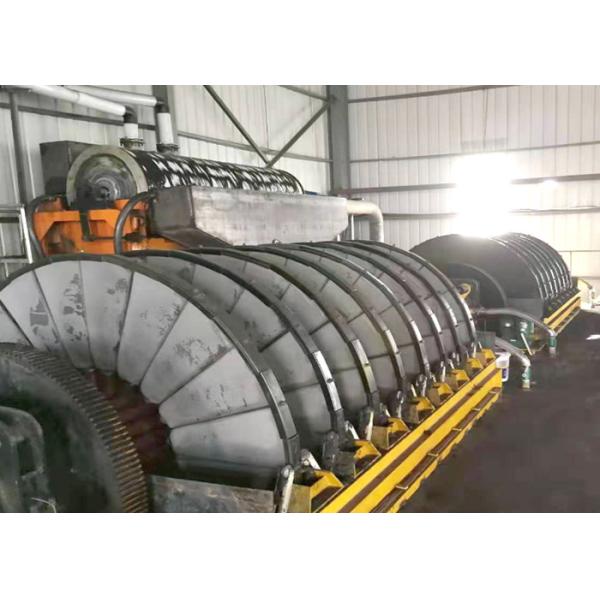

Disc filter is a kind of continuous vacuum filtration equipment, it is mainly consisted with tank, main shaft, filtrate disc, distribution valve, material stripping device washing unit, drive unit, discharge unit etc.

The filter disc is the core component of disc filter. A special grooved or ridged filter discs formed a certain dimensional channel, it can block the particle size larger than this channel to achieve the purpose of filtration. The disc filter has an excellent performance and lower consumption than traditional mechanical devices.

Our Disc Filter product is not only efficient but also economic making it the perfect choice for those on a budget.

Features:

• Filter cloth matches sector filter chamber to realize convenient locking and pressing.
• High-pressure automatic washing device can wash filter cloth exhaustively in all directions and maintain good dewatering effect of filter cloth.
• Connection between filter sector and filtrate pipeline is fixed by modules, which is simpler, more convenient and quicker to replace.
• Distribution valve divides multiple areas to meet needs of process designs for different slurry.
• Vertical disc filter adopts unpowered filtrate discharge mode, which is more energy-saving and simpler than previous auxiliary forced filtrate discharge structure.

Technical Parameters:

Applications:

1. Gold Concentration
2. Copper Concentration
3. Iron Concentration
4. Zinc Concentration
5. Fine Coal Concentration

Support and Services:

Our Disc Filter is designed and manufactured to provide reliable and efficient performance in various industries.We offer technical support and services to ensure that our equipment meets your specific needs and operates at optimal levels, which including:
