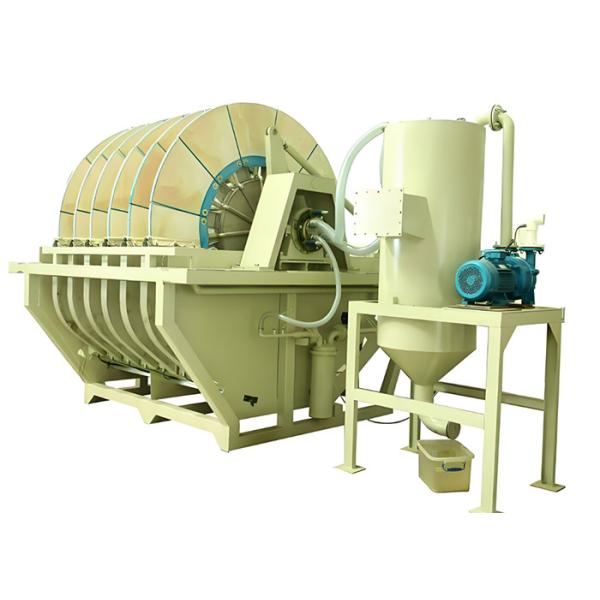

Diameter 2600mm Rotary Vacuum Disc Filters For Wastewater Treatment
Diameter 2600mm Rotary Vacuum Disc Filters For Wastewater Treatment
Diameter 2600mm Rotary Vacuum Disc Filters For Wastewater Treatment
Diameter 2600mm Rotary Vacuum Disc Filters For Wastewater Treatment
Specifications
Brand Name :
UNIVEE
Model Number :
U-DF
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
8-10 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Disc Material :
Polypropylene
Vacuum System :
Available
Filtration Type :
Mechanical Filtration
Disc Diameter :
2600mm
Backwash :
Available
Installation :
Vertical
Power :
5 kw
Application :
Sludge Treatment
Description

Product Description:

The piled material layer remains in the groove or ringlike edges when the slurry flows passed the filter disc. The back washing process ensures the water washing from the inner to outside of the filter disc, which can flush the solid down and discharge from the sewage outlet.

The discs are compacted stack together in the cell. The groove between two disc layers can block and filtrate the solid in slurry.

The slurry flows into the filter, the particle size bigger than the groove shall be blocked in the external.

The filter disc is the core component of disc filter. A special grooved or ridged filter discs formed a certain dimensional channel, it can block the particle size larger than this channel to achieve the purpose of filtration. The disc filter has an excellent performance and lower consumption than traditional mechanical devices.

Diameter 2600mm Rotary Vacuum Disc Filters For Wastewater Treatment

Features:

The surface of sector filter chamber constituting filter disc is covered with bucket filter holes. This structure can optimize filtration area ratio of sector filter chamber skeleton. It is made of high-strength, high-toughness plastic or organic material, and service life has been increased several times.
Filter cloth matches sector filter chamber to realize convenient locking and pressing.
High-pressure automatic washing device can wash filter cloth exhaustively in all directions and maintain good dewatering effect of filter cloth.

Technical Parameters:

Filtration Area 40 m2
Quantiy of Disc 5 pcs
Power 5.5 Kw
Capacity
0.2-1.2t/h·m2

Applications:

  • Sector Filter Chamber
There are two types of sector filter chamber. It can be divided into metal filter sector and non-metal filter sector according to different materials.
Diameter 2600mm Rotary Vacuum Disc Filters For Wastewater Treatment

2. Stirring Device

Swing frame stirring deivce expands lateral area of striing rod and reduces perpendicular area of disc rotation direction, which reduce the resistance. Striier is equipped with an “arrow” type structure. It can not only easily mix slurry again under a fast sedimentation speed, but also can achieve stepless speed regulation.
Diameter 2600mm Rotary Vacuum Disc Filters For Wastewater Treatment

3. Distribution Valve

It is generally composed of three parts. One is partition valve. It can divide the surface area of vertical discs into several areas to meet process needs for different slurry treatment. The second is filtration valve. Its surface is evenly distributed with some round holes. As the main filter media, filter cloth has a very important influence on filtration effect.
Diameter 2600mm Rotary Vacuum Disc Filters For Wastewater Treatment

FAQ:

Q: What is the brand name of this disc filter?

A: The brand name of this disc filter is UNIVEE.

Q: What is the model number of this disc filter?

A: The model number of this disc filter is U-DF-31.

Q: Where is this disc filter manufactured?

A: This disc filter is manufactured in China.
