0.03-0.4MPa Hydrocyclone Water Treatment Centrifugal Desander Hydrocyclone
0.03-0.4MPa Hydrocyclone Water Treatment Centrifugal Desander Hydrocyclone
0.03-0.4MPa Hydrocyclone Water Treatment Centrifugal Desander Hydrocyclone
0.03-0.4MPa Hydrocyclone Water Treatment Centrifugal Desander Hydrocyclone
Specifications
Brand Name :
UNIVEE
Model Number :
U-H
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per month
Delivery Time :
4-6 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Size :
Inlet Pipe 300mm
Water Flow :
60m3/h
Pressure :
0.03-0.4MPa
Operating Principle :
Centrifugal Force
Installation :
Easy Installation
Durability :
High Durability
Operating Cost :
Low Operating Cost
Condition :
New
Description

Durability Hydrocyclone Water Treatment Low Operating Cost Utilizing Centrifugal Force Easy Installation

Product Description:

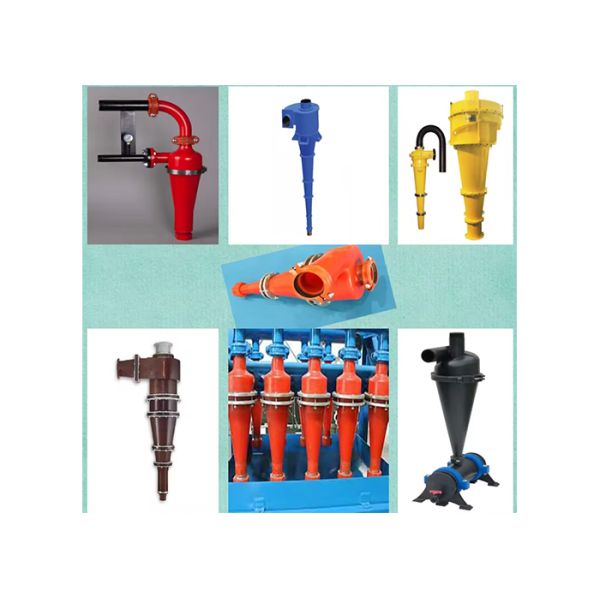

Hydrocyclone tank is consisted with a upper hollow cylinder and a lower inverted cone, besides this, a feeding pipe, overflow pipe and sand settling outlet.

The Hydrocyclone Water Treatment product is designed to remove sedimentation from water, making it ideal applied in industrial and municipal settings fields. This vortex water purification unit works by separating solid particles from liquid using centrifugal force.

0.03-0.4MPa Hydrocyclone Water Treatment Centrifugal Desander Hydrocyclone

Features:

Simple structure
Easy manuacture
Big processing capacity

Technical Parameters:

Inner Diameter (mm) Overflow Pipe (mm)

Underflow Pipe

(mm)

Cone Angle

(°)

Feeding Pressure

(MPa)

 Capacity (m3/h)

Particle Size

(μm)
750 240.260.280 120.140.160 20 0.03-0.4 400-500 74-250
660 180.200.220.240 80.110.150 20 0.03-0.4 250-360. 74-220
610 160.180.200.220 90.100.110 20 0.03-0.4 250-360 74-200
500 130.140.160.220

35.45.50.65.70.

80.90.100

 10.20.25 0.03-0.4 140-220 74-200
350 80.90.105.115.120

30.35.40.45.

50.60.70

 15.20.25 0.03-0.4 60-90

50-150

150-120
300 65.80.100.120 20.25.30.35.40 15.20 0.05-0.4 45-80 50-150 40-100

Applications:

Hydrocyclone is mainly applied for classifying, separation, concentration and desliming in mine processing. When hydrocyclone combined with grinding machine, is used for classifying system. When for desliming, it used for heavy metal desliming. When applied in concentration and dewatering, it can do the tailings treatment and recycle.

Support and Services:

Customized design
Equipment supply
Installation and commissioning
Operator training and process optimization
Routine maintenance and troubleshooting
Spare Parts and consumables

Packing and Shipping:

Product Packaging:

The Hydrocyclone Water Treatment product will be packaged securely in a cardboard box with foam padding to ensure safe transportation. The product will be sealed with tape and labeled with the product name and any necessary handling instructions.

Shipping:

The Hydrocyclone Water Treatment product will be shipped via a reliable courier service. The shipping cost will be calculated based on the destination and weight of the package. The customer will be provided with a tracking number to monitor the progress of their shipment. Delivery time will depend on the destination, but we will make every effort to ensure prompt delivery.

FAQ:

Q: What is a Hydrocyclone Water Treatment system?
A: A Hydrocyclone Water Treatment system is a device that utilizes centrifugal force to separate impurities from water or other liquids. It is commonly used in industries such as mining, oil and gas, and wastewater treatment.

Q: What is the Brand Name of this product?
A: The Brand Name of this product is UNIVEE.

Q: Where is this product manufactured?
A: This product is manufactured in China.
