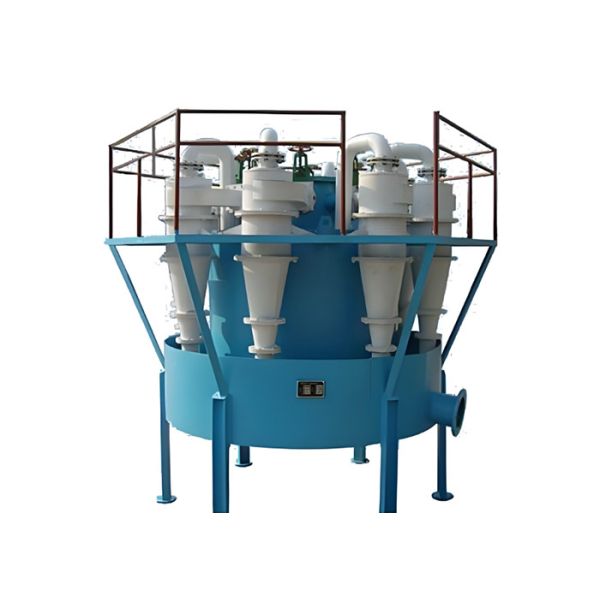

Mild Steel Desanding Cyclone Liquid Sedimentation Process Dewatering Cyclone
Mild Steel Desanding Cyclone Liquid Sedimentation Process Dewatering Cyclone
Mild Steel Desanding Cyclone Liquid Sedimentation Process Dewatering Cyclone
Mild Steel Desanding Cyclone Liquid Sedimentation Process Dewatering Cyclone
Specifications
Brand Name :
UNIVEE
Model Number :
U-H
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per month
Delivery Time :
4-6 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Application :
Water Treatment
Capacity :
500m3/h
Operating Principle :
Centrifugal Force
Size :
750mm
Condition :
New
Installation :
Easy Installation
Inlet/Outlet Connections :
Flanged Or Threaded
Material :
Mild Steel
Description

Product Description:

The Hydrocyclone Water Treatment product is designed to remove sedimentation from water, making it ideal applied in industrial and municipal settings fields. This vortex water purification unit works by separating solid particles from liquid using centrifugal force.

Adopt vertical volute axis direction type shaft with spiral down channel structure, smooth inner surface, ensure bigger dispersion of slurry. Better classifying efficiency of hydrocyclone, less abrasion, changeable inner sleeve, easy installation, convenience maintenance.

Mild Steel Desanding Cyclone Liquid Sedimentation Process Dewatering Cyclone

Features:

Simple structure
Easy manuacture
Big processing capacity

Technical Parameters:

Inner Diameter (mm) Overflow Pipe (mm)

Underflow Pipe

(mm)

Cone Angle

(°)

Feeding Pressure

(MPa)

 Capacity (m3/h)

Particle Size

(μm)
750 240.260.280 120.140.160 20 0.03-0.4 400-500 74-250
660 180.200.220.240 80.110.150 20 0.03-0.4 250-360. 74-220
610 160.180.200.220 90.100.110 20 0.03-0.4 250-360 74-200
500 130.140.160.220

35.45.50.65.70.

80.90.100

 10.20.25 0.03-0.4 140-220 74-200

Applications:

Hydrocyclone is mainly applied for classifying, separation, concentration and desliming in mine processing. When hydrocyclone combined with grinding machine, is used for classifying system. When for desliming, it used for heavy metal desliming. When applied in concentration and dewatering, it can do the tailings treatment and recycle.

Support and Services:

The Hydrocyclone Water Treatment product offers the following technical support and services:

  • Installation assistance and guidance
  • Product training and education
  • Maintenance and repair services
  • Product documentation and user manuals
  • Technical troubleshooting and support

Packing and Shipping:

UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.
Type of Packing:

Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.
Packed with fumigation package
Packed in plastic lorap, double bister and jute rope

FAQ:

Q: What is a Hydrocyclone Water Treatment system?
A: A Hydrocyclone Water Treatment system is a device that utilizes centrifugal force to separate impurities from water or other liquids. It is commonly used in industries such as mining, oil and gas, and wastewater treatment.

Q: What is the Brand Name of this product?
A: The Brand Name of this product is UNIVEE.

Q: What is the Model Number of this product?
A: The Model Number of this product is U-H.

Q: Where is this product manufactured?
A: This product is manufactured in China.
