Advanced Technology Durability Hydrocyclone Water Treatment Classifier Device
Advanced Technology Durability Hydrocyclone Water Treatment Classifier Device
Advanced Technology Durability Hydrocyclone Water Treatment Classifier Device
Advanced Technology Durability Hydrocyclone Water Treatment Classifier Device
Specifications
Brand Name :
UNIVEE
Model Number :
U-H
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per month
Delivery Time :
4-6 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Efficiency :
High Efficiency Separation
Application :
Water Treatment
Pressure :
0.03MPa
Operating Principle :
Centrifugal Force
Durability :
High Durability
Operating Cost :
Low Operating Cost
Condition :
New
Size :
Various Sizes Available
Description

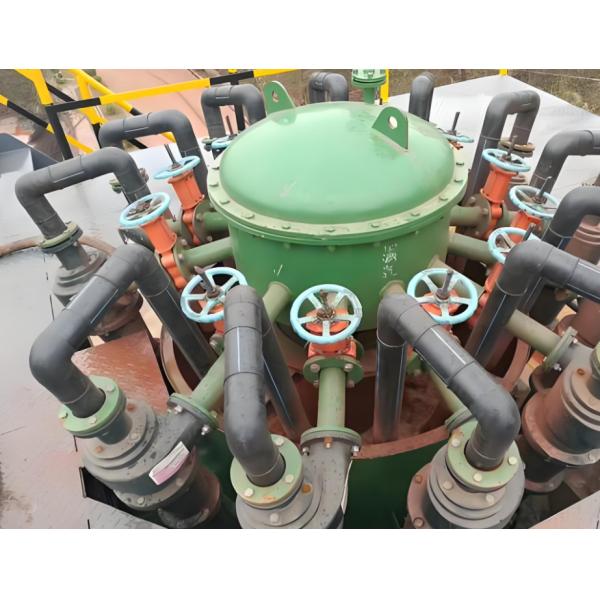

Advanced Technology Durability Hydrocyclone Water Treatment Classifier Devise

Product Description:

The Hydrocyclone Water Treatment product is available in various area to cater to your specific water treatment requirements.

Adopt vertical volute axis direction type shaft with spiral down channel structure, smooth inner surface, ensure bigger dispersion of slurry. Better classifying efficiency of hydrocyclone, less abrasion, changeable inner sleeve, easy installation, convenience maintenance.

According to the requirement of technical processing of client, our engineer can calculate a suitable diameter of overflow pipe and discharge outlet after testing work. If the diameter is not a normal one, it can be customized.
Advanced Technology Durability Hydrocyclone Water Treatment Classifier Device

Features:

Simple structure
Easy maintenance
Big processing capacity

Small footprint
Long life span
Anti-resistant

Technical Parameters:

Inner Diameter (mm) Overflow Pipe (mm)

Underflow Pipe

(mm)

Cone Angle

(°)

Feeding Pressure

(MPa)

 Capacity (m3/h)

Particle Size

(μm)
200 40.50.55.65 16.20.24.28.32 15,20 0.05-0.4 25-40

40-100

30-100
150 30.35.40.45.50

8.10.12.14.

16.18.20.22

 8.15.20 0.05-0.4 11-20

30-74

20-74
125 25.30.35.40

8.10.12.14.

16.18

 7.15 0.05-0.4 8-15 74-200

Applications:

The hydrocyclone water treatment product is used in various scenarios, including:

  • Oil and Gas Industry
  • Mining Concentrate
  • Food Processing Industry

Packing and Shipping:

UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.

Type of Packing:

Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.
Packed with fumigation package
Packed in plastic lorap, double bister and jute rope

FAQ:

Q: What is UNIVEE U-H Hydrocyclone Water Treatment?
A: UNIVEE U-H Hydrocyclone Water Treatment is a device that separates solids from liquids or removes dirt and other impurities from water.

Q: How does UNIVEE U-H Hydrocyclone Water Treatment work?
A: UNIVEE U-H Hydrocyclone Water Treatment works by using centrifugal force to separate particles from water. The water is fed into the hydrocyclone and spins around at high speed, causing the particles to separate from the water and collect at the bottom of the unit.

Q: What are the benefits of using UNIVEE U-H Hydrocyclone Water Treatment?
A: UNIVEE U-H Hydrocyclone Water Treatment is an efficient and cost-effective way to remove dirt and impurities from water. It can be used in a variety of applications, including industrial processes, wastewater treatment, and agriculture.

Q: Is UNIVEE U-H Hydrocyclone Water Treatment easy to install?
A: Yes, UNIVEE U-H Hydrocyclone Water Treatment is easy to install and can be used in conjunction with other water treatment systems to improve overall efficiency.
