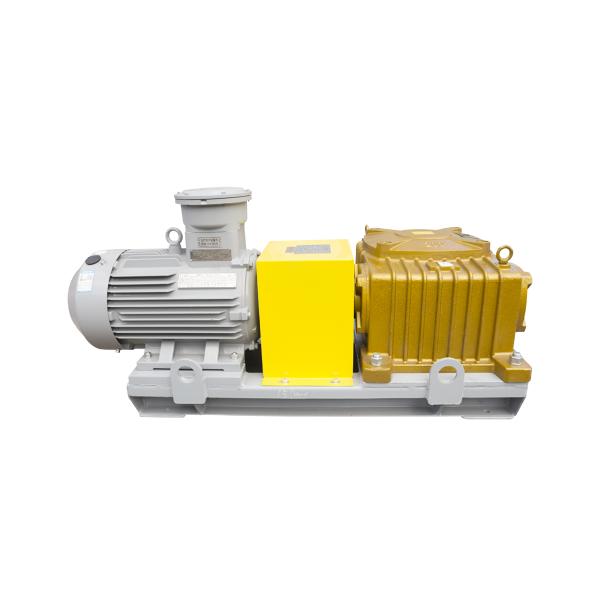

Mixing Mud Agitators 58rpm 72rpm Drilling Mud Agitator
Mixing Mud Agitators 58rpm 72rpm Drilling Mud Agitator
Mixing Mud Agitators 58rpm 72rpm Drilling Mud Agitator
Mixing Mud Agitators 58rpm 72rpm Drilling Mud Agitator
Mixing Mud Agitators 58rpm 72rpm Drilling Mud Agitator
Mixing Mud Agitators 58rpm 72rpm Drilling Mud Agitator
Mixing Mud Agitators 58rpm 72rpm Drilling Mud Agitator
Mixing Mud Agitators 58rpm 72rpm Drilling Mud Agitator
Specifications
Place of Origin :
Sichuan，China
Brand Name :
XBSY
Certification :
USE 18000,USE14000，EAC，CE，ISO9000
MOQ :
1
Packaging Details :
Ply Wood Box,iron box
Delivery Time :
1-2 months
Payment Terms :
TT
Supply Ability :
1000
Price :
Price Negotiable
Model :
JB / W7.5
Motor Power :
7.5
Motor Speed :
1440 / 1750
Impeller Speed (rpm) :
58 or 72
Impeller Discharge :
15710
Impeller Diameter (mm) :
860
Weight (kg) :
400
L × W × H (mm) :
1101×664×623
Description

​​XBSY JB/W Agitators: 50/60Hz Compatible Mixing Solutions for Global Rigs​

The XBSY JB/W7.5 mud agitator employs a tilted-blade impeller design to generate axial and radial flow patterns, ensuring uniform suspension of solid particles (e.g., barite, cuttings) and preventing sedimentation in drilling fluid tanks. With a 7.5kW motor driving the impeller at 58/72 RPM (50/60Hz), it delivers 15,710 L/min flow capacity, suitable for high-density mud systems. The worm gear reducer minimizes mechanical wear, reducing maintenance frequency by 40% compared to standard gearboxes. Its compact footprint (1101×664×623 mm) allows flexible integration into land-based and offshore rig tanks, while the corrosion-resistant construction extends service life in harsh environments.

Mixing Mud Agitators 58rpm 72rpm Drilling Mud Agitator

Features
Reliable Operation - good performance, low maintenance and low noise with worm/turbine reducer.
Good Mixing Effect - The use of inclined blades - Nice stirring and mixing effect.
Wide Range of Application - Diversified structure, widely used in land mud tanks and offshore platforms.

Model Motor Power Motor Speed Impeller Speed (rpm) Impeller Discharge Impeller Diameter (mm) Weight (kg) L × W × H (mm)
/ / / 50HZ 60HZ / Single Impeller Double Impeller / /
JB / W7.5 7.5 1440 / 1750 58 or 72 70 15710 860 U780/L520 400 1101×664×623
