Specifications
Place of Origin :
Sichuan，China
Brand Name :
XBSY
Certification :
USE 18000,USE14000，EAC，CE，ISO9000
MOQ :
1
Packaging Details :
Ply Wood Box,iron box
Delivery Time :
1-2 months
Payment Terms :
TT
Supply Ability :
1000
Price :
Price Negotiable
Model :
SB2×3
Flow (m³/h) :
25-55
Head (m) :
11-22
Rotational Speed(rpm) :
1440-1760
Efficiency (%) :
50-60
Power (kW) :
1.5-5.5，4-11
Weight (kg) :
223-320
Description

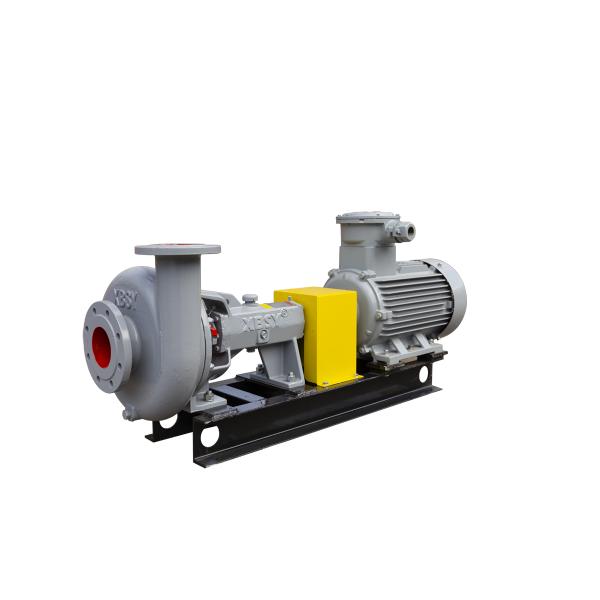

SB 2×3 Centrifugal Mud Pump for Oil Sludge Treatment System Compact and Reasonable Structure

  • Maximize fluid transfer efficiency with SB series’ optimized impeller and volute design. The SB2×3J-8 model achieves 54% efficiency at 40m³/h flow and 16m head, reducing energy consumption with 5.5kW motor power. Wide-flow-path impellers prevent clogging from solids-laden mud, minimizing downtime in shale shaker or desilter applications.
  • •

    ​​Solids Control​​: SB2×3J series handles 25–55m³/h for desander/desilter feed in mud recycling systems.

  • •

    ​​Cuttings Evacuation​​: Non-clogging impellers transport ≤15mm solids without jamming.

  • •

    ​​Rig Support​​: Compact size (≤1.35m length) enables deployment in mobile land rigs or offshore platforms.

    Technical specs: Max 11kW power, 1760 RPM speed, 320kg weight.

Oil Sludge Treatment System Centrifugal Pumps Compact Centrifugal Slurry Pump

Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of highly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).

Model Flow (m³/h) Head (m) Rotational Speed(rpm) Efficiency (%) Power (kW) Weight (kg) L*W*H (mm)
/ / / 50Hz 60Hz / Shaft Power Motor Power / /
SB2 × 3J - 10 55 22 1460 1760 60 5.5 11 320 1352×446×682
SB2 × 3J - 9 50 18 1440 1750 56 4.4 7.5 260 1232×446×650
SB2 × 3J - 8 40 16 1440 1750 54 3.2 5.5 245 1192×446×650
SB2 × 3J-7½ 25 11 1440 1750 50 1.5 4 223 1161×446×600
