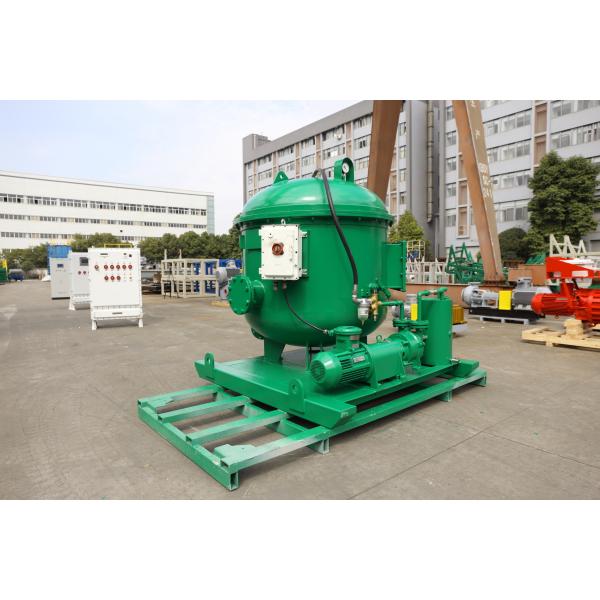

92% Gas Separation Vacuum Degasser 30KW – 37kW Vacuum Degasser Pressurisation Unit
92% Gas Separation Vacuum Degasser 30KW – 37kW Vacuum Degasser Pressurisation Unit
92% Gas Separation Vacuum Degasser 30KW – 37kW Vacuum Degasser Pressurisation Unit
92% Gas Separation Vacuum Degasser 30KW – 37kW Vacuum Degasser Pressurisation Unit
92% Gas Separation Vacuum Degasser 30KW – 37kW Vacuum Degasser Pressurisation Unit
92% Gas Separation Vacuum Degasser 30KW – 37kW Vacuum Degasser Pressurisation Unit
92% Gas Separation Vacuum Degasser 30KW – 37kW Vacuum Degasser Pressurisation Unit
92% Gas Separation Vacuum Degasser 30KW – 37kW Vacuum Degasser Pressurisation Unit
Specifications
Place of Origin :
Sichuan，China
Brand Name :
XBSY
Certification :
USE 18000,USE14000，EAC，CE，ISO9000
MOQ :
1
Packaging Details :
Ply Wood Box,iron box
Delivery Time :
1-2 months
Payment Terms :
TT
Supply Ability :
1000
Price :
Price Negotiable
Model :
ZSCQ / 180
Capacity (m³/h) :
180
Separation Area (c㎡) :
63000
Vacuum Level (MPa) :
0.02 ~ 0.04
Separation Efficiency (%) :
≥92
L × W × H (mm) :
2373 × 1380 × 1577
Weight (kg) :
1200
Description

Vacuum Degasser: ≥92% Gas Separation, 30–37kW Pump Compatibility

The ZSCQ/180 Vacuum Degasser delivers industry-leading gas separation efficiency (≥92%) for invasive drilling fluids. Its 63000cm² separation area and 0.02–0.04MPa vacuum level ensure rapid removal of entrained gases, stabilizing mud viscosity and restoring density. With integrated heavy-power agitation, the unit eliminates the need for transfer pumps, reducing operational costs. Compatible with 30–37kW centrifugal pumps and a 2890rpm vacuum system, it suits ultradeep and underbalanced drilling. Compact alloy design (2373×1380×1577mm, 1200kg) enables deployment in confined spaces.

Features
High suction efficiency - Water ring vacuum pump is used.
High separation efficiency - Adopting a multi-layer folded parachute separator - Large separation area, high gas separation efficiency.
Automatic control - Stainless steel floating ball is used to adjust the vacuum level automatically.
High treatment capacity - High efficiency jet discharge is used.
Easy maintenance - Designed with wide access ports.

Model ZSCQ / 180
Capacity (m³/h) 180
Separation Area (c㎡) 63000
Vacuum Level (MPa) 0.02 ~ 0.04
Separation Efficiency (%) ≥92
L × W × H (mm) 2373 × 1380 × 1577
Weight (kg) 1200
Matching Centrifugal Pumps
Flow (m3 /h) 180
Lift (m) 28 ~ 33
Rotational Speed (rpm) 1480
Mating Power (kW) 30 ~ 37

Vacuum Pumps
Rotational Speed (rpm) 2890
Mating Power (kW) 4
