Product Description:

Suitable for Single and Double Edge Boring: This tool is versatile and able to handle single and double edge boring work. The minimum processing diameter requirement is 20 mm.

Adjustability for Various Processing: According to different processing needs, the boring tool is easily adjustable to cater for small quantities of a variety of processing tasks. The processing depth can also be extended up to the required length using the extension rod. Clear side scales are included to help users adjust to the desired range without the need for presetting on a tool presetter.

Accessories Included: Each set comes with a set of locking screws, shims, and an L-shaped wrench. Please note that no inserts are included, so users should purchase inserts based on their specific requirements.

Additional Features: All CMR boring tools come equipped with internal coolant systems. Furthermore, a blind hole type tool holder is provided as a standard component.

Features:

Ultra-High Precision Adjustment
Micrometric diameter adjustment with resolution as fine as 1 μm, ensuring excellent hole accuracy.

High Repeatability
Consistent performance with repeatability of ±2 μm, ideal for precision hole finishing in mass production.

Modular Design
Interchangeable boring bars and tool holders for flexible setups and reduced tooling inventory.

Wide Boring Range
Suitable for fine boring diameters from Ø20 mm up to Ø500 mm, covering various industrial applications.

Digital Display Options
Models available with built-in digital readout and Bluetooth connectivity for fast, error-free adjustments.

High-Speed Compatibility
Balanced for high-speed machining (up to 20,000 rpm), minimizing vibration and improving surface finish.

Coolant Through Capability
Supports internal coolant supply (through-spindle coolant), improving chip evacuation and tool life.

High Rigidity & Stability
Rigid clamping mechanisms and body design for stable machining even under heavy cutting conditions.

Quick Adjustment and Setup
Easy and fast tool adjustment reduces machine downtime and increases overall productivity.

Machine Interface Versatility
Compatible with various machine interfaces including BT, HSK, CKB, ABS, and more.

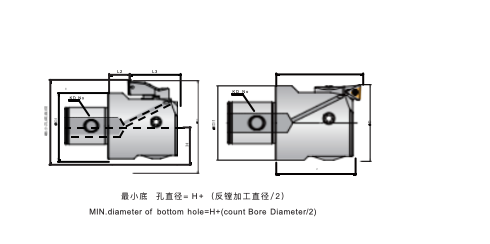

Technical Parameters:

Applications:

Aerospace Industry

Used for precision machining of engine components, actuator housings, and hydraulic systems requiring tight tolerances.

Automotive Manufacturing

Ideal for finishing cylinder bores, valve seats, transmission housings, and other precision internal diameters.

Mold and Die Industry

Used in mold base machining and alignment pin holes requiring high accuracy and excellent surface finish.

Hydraulics and Pneumatics

Precision boring of control valve bodies, hydraulic cylinders, and pneumatic manifold blocks.

Medical Equipment

Applied in the manufacturing of surgical instruments and orthopedic implants requiring micron-level accuracy.

Energy and Power Generation

Boring of turbine casings, pump housings, and compressor bodies in nuclear, wind, and oil & gas sectors.

Heavy Machinery and Construction Equipment

Used in finishing large, deep bores on gearboxes, drive units, and structural joints.

General Mechanical Engineering

Applicable to a wide range of custom precision boring tasks in general CNC machining and toolroom applications.
