Product Description:

Suitable for single and double edge boring, the minimum processing diameter is 20. According to various processing requirements, the boring tool can be easily adjusted to perform small amounts of various processing tasks. The processing depth can be extended to the required length with the extension rod. Clear side scales on the tool allow the user to adjust to the required range easily without needing to preset on the tool presetter.

The tool comes with a set of locking screws, shims, and an L-shaped wrench. No inserts are attached, so please purchase them according to your needs. All CMR boring tools have internal coolant systems. A blind hole type tool holder is included as standard.

Features:

Ultra-High Precision Adjustment

Micrometric diameter adjustment with resolution as fine as 1 μm, ensuring excellent hole accuracy.

High Repeatability

Consistent performance with repeatability of ±2 μm, ideal for precision hole finishing in mass production.

Modular Design

Interchangeable boring bars and tool holders for flexible setups and reduced tooling inventory.

Wide Boring Range

Suitable for fine boring diameters from Ø20 mm up to Ø500 mm, covering various industrial applications.

Digital Display Options

Models available with built-in digital readout and Bluetooth connectivity for fast, error-free adjustments.

High-Speed Compatibility

Balanced for high-speed machining (up to 20,000 rpm), minimizing vibration and improving surface finish.

Coolant Through Capability

Supports internal coolant supply (through-spindle coolant), improving chip evacuation and tool life.

High Rigidity & Stability

Rigid clamping mechanisms and body design for stable machining even under heavy cutting conditions.

Quick Adjustment and Setup

Easy and fast tool adjustment reduces machine downtime and increases overall productivity.

Machine Interface Versatility

Compatible with various machine interfaces including BT, HSK, CKB, ABS, and more.

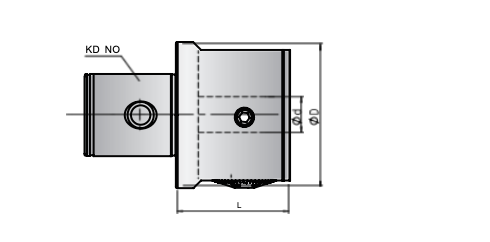

Technical Parameters:

Applications:

Application Fields of Fine Boring Heads

Aerospace Industry:
Used for precision machining of engine components, actuator housings, and hydraulic systems requiring tight tolerances.

Automotive Manufacturing:
Ideal for finishing cylinder bores, valve seats, transmission housings, and other precision internal diameters.

Mold and Die Industry:
Used in mold base machining and alignment pin holes requiring high accuracy and excellent surface finish.

Hydraulics and Pneumatics:
Precision boring of control valve bodies, hydraulic cylinders, and pneumatic manifold blocks.

Medical Equipment:
Applied in the manufacturing of surgical instruments and orthopedic implants requiring micron-level accuracy.

Energy and Power Generation:
Boring of turbine casings, pump housings, and compressor bodies in nuclear, wind, and oil & gas sectors.

Heavy Machinery and Construction Equipment:
Used in finishing large, deep bores on gearboxes, drive units, and structural joints.

General Mechanical Engineering:
Applicable to a wide range of custom precision boring tasks in general CNC machining and toolroom applications.
