Customized Solar Tempered Glass High Light Transmittance Glass Energy Saving For Solar Energy
Customized Solar Tempered Glass High Light Transmittance Glass Energy Saving For Solar Energy
Customized Solar Tempered Glass High Light Transmittance Glass Energy Saving For Solar Energy
Customized Solar Tempered Glass High Light Transmittance Glass Energy Saving For Solar Energy
Specifications
Brand Name :
YIWO
Model Number :
YIWO25102807
Place of Origin :
QINHUANGDAO,HEBEI,CHINA
MOQ :
one wooden crate
Price :
USD0.9-USD2.1/SQM
Supply Ability :
2000000 sqm/year
Packaging Details :
wooden crates with paper inside every two sheets which is suitable for export transportation
Delivery Time :
5-7 working days
Certification :
CE/TUV
other name :
Solar Tempered Glass
technique :
Tempered
Feature :
High transmittance
Structure :
Solid
Size :
Can be customized
Glass Shape :
Flat
Surface :
Patterned
Thickness :
2mm,2.5mm,3.2mm,4mm
color :
Ultra white, clear
Application :
solar panel, greenhouse
Heat resistance :
High
Description

High Light Transmittance Tempered Solar Glass 2mm Thickness With Energy Saving For Solar Energy

Products description:

solar tempered glass have specifical textured surface, are wildly be used as light protect glass, solar panel protect glass, their light transmittance>91.5%.

Feature :

1. Solar panel glass :Ultra white glass (3.2mm, 4mm)
2. energy saving, eco -friendly
3. solar use

specification

Material Ultra white glass
Thickness 2mm, 3.2mm
Dimension 2272X1128X2mm, customizable by request
Certification & Standard EN 12150, IEC 61215, GB 15763.2-2005, ASTM E903
Coating Hardness Front Glass: ≥3H; Back Glass: ≥9H (Pencil Hardness Test)
ight Transmittance ≥91.6% (3.2mm Standard PV Glass); ≥93.6% (3.2mm AR Coated PV Glass)
Optical Performance Front Glass: PV Transmittance ≥93.5% (≤3.2mm); Back Glass: PV Reflectance ≥70%
Temperature Coefficient -0.39%/°C
Weight 20.0kg/piece (Based on 1762×1134×3.2mm)
Operating Temperature Range -40°C ~ 85°C
Mechanical Strength Bending Strength ≥150MPa; Impact Resistance: Pass 1kg steel ball drop test from 1m height
Weather Resistance Resistance to humidity, UV radiation, and salt spray (Complies with IEC 61730)

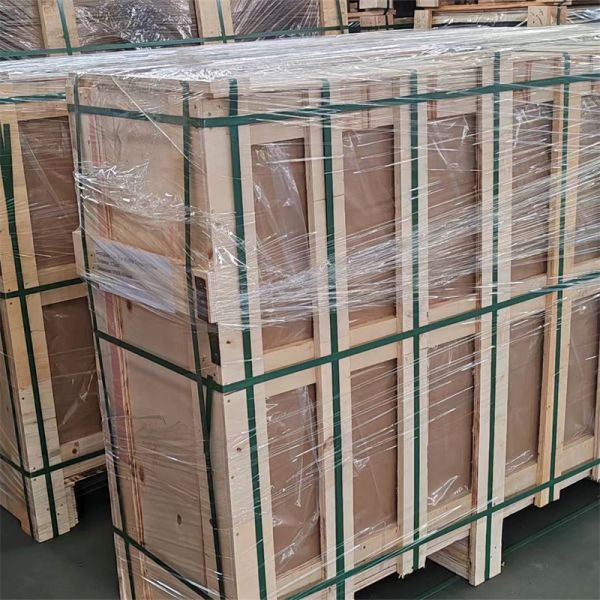

packaging&shipping

(1)Interlay paper or plastic between two sheets;
(2)Seaworthy wooden crates;
(3) Iron belt for consolidation

Customized Solar Tempered Glass High Light Transmittance Glass Energy Saving For Solar EnergyCustomized Solar Tempered Glass High Light Transmittance Glass Energy Saving For Solar Energy
