Ultra White Low Iron Solar Tempered Glass Patterned Transparent Solar Glass For Solar Panel

Product Description

High transparent glass is ultra-white glass takes full advantage of the diffuse reflection of the pattern to decrease the light reflection. Thus has a very high solar transmittance at any angle incidence. It is the ideal encapsulation material for solar panels(PV modules) and the flat solar thermal products.

Feature:

1. Low Iron Glass: Utilizes high-purity low iron glass (also known as "extra clear glass") as the base material, which effectively minimizes iron oxide content to reduce visible light absorption, laying a solid foundation for superior light transmittance.
2. Perfect Heat Resistant: Features excellent thermal stability and can withstand abrupt temperature changes of up to 220°C, maintaining structural integrity even in extreme outdoor thermal environments.
3. High Solar Transmittance: Boasts a solar transmittance of over 91.5% (for 3.2mm thickness), maximizing the conversion efficiency of solar panels by allowing more sunlight to reach the photovoltaic cells.
4. Reduce Light Reflection: Equipped with an optional anti-reflective (AR) coating or optimized surface texture, which significantly reduces surface light reflection, ensuring high light utilization rate at various incident angles.
5. Eco-friendly: Adopts environmentally sustainable production processes with no harmful emissions; the glass itself is 100% recyclable, aligning with global green energy and low-carbon development goals.
6. Non-toxic & Compliance with International Environmental Standards: Composed of non-toxic chemical components without heavy metals or harmful substances. It fully complies with the rigorous environmental regulations and standards of the European Union (ROHS, REACH), the United States (EPA), and Japan (JIS), ensuring wide market accessibility.

Specification :

thickness : 3.2-4mm

Maximum size: 2250*3500mm(annealed)
1219*1930mm (tempered),

Thickness: 3.2&4mm

Solar transmittance:(3.2mm polished samples ISO9050/2003)>=91.7%

Applications:

Use For Solar, Photovoltaic Module; Street Lamp Lens; Building Glass Curtain Wall,Greenhouse, Solar Heater Collector

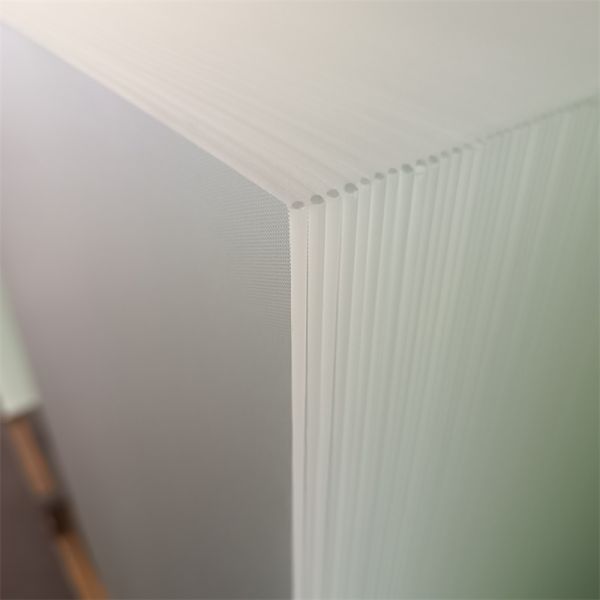

Product pictures
