IEC IP68 Solar Power Generation Panel 5400Pa Dustproof Solar Photovoltaic System
IEC IP68 Solar Power Generation Panel 5400Pa Dustproof Solar Photovoltaic System
IEC IP68 Solar Power Generation Panel 5400Pa Dustproof Solar Photovoltaic System
IEC IP68 Solar Power Generation Panel 5400Pa Dustproof Solar Photovoltaic System
IEC IP68 Solar Power Generation Panel 5400Pa Dustproof Solar Photovoltaic System
IEC IP68 Solar Power Generation Panel 5400Pa Dustproof Solar Photovoltaic System
Specifications
Brand Name :
welons
Model Number :
Custom
Certification :
CE ROHS FCC
Place of Origin :
China
MOQ :
100 pcs
Packaging Details :
1.2mX2.4m wooden Case packaging
Maximum Power :
450W
Price :
USD 30-300 /pcs
Delivery Time :
5-8 work days
Payment Terms :
T/T
Supply Ability :
500000 pcs per year
Description
450W High-Efficiency Monocrystalline Solar Panel
This monocrystalline PV module delivers stable, high-yield power generation for residential, commercial, and industrial solar systems. Built with premium Grade A mono solar cells and advanced encapsulation technology, it ensures long service life, excellent weather resistance, and reliable performance even in low-light environments.

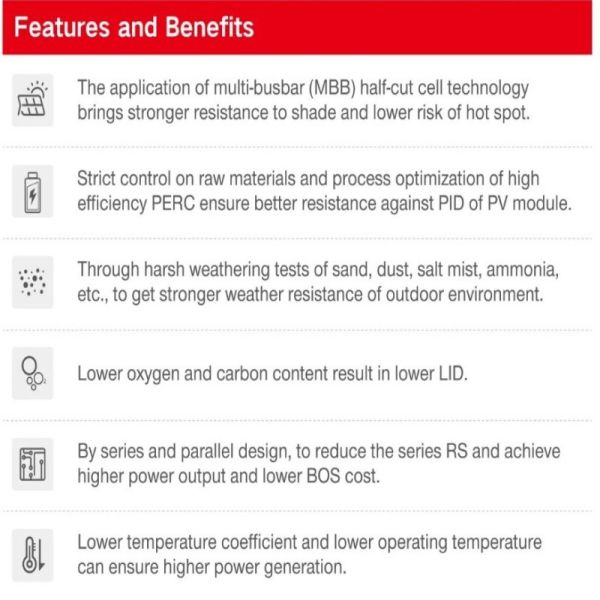

Key Features

  • High Power Output: 450W rated power, efficient energy conversion up to 22.0%–23.5%
  • Premium Grade A Mono Cells: Low attenuation, high stability, long lifespan
  • Half-Cut Design: Better anti-shading performance, higher reliability
  • Durable Construction: Tempered glass, aluminum frame, wind and snow load resistant
  • IP68 Waterproof & Dustproof: Suitable for outdoor harsh environments
  • IEC & CE Certified: Safe, reliable, and compatible with global standards
  • 25-Year Linear Power Warranty: Stable output and long-term investment protection

Applications

  • Residential rooftop solar systems
  • Commercial & industrial rooftop PV
  • Solar power stations
  • Off-grid and hybrid solar systems
  • Agricultural PV, carports, and BIPV projects

Specifications (General)

  • Maximum Power (Pmax): 450W
  • Cell Type: Monocrystalline
  • Panel Type: Half-cut mono
  • Glass: 3.2mm high-transmittance tempered glass
  • Frame: Anodized aluminum alloy
  • Operating Temperature: -40°C ~ +85°C
  • Warranty: 25-year performance warranty
Parameter Details
Cell Type Monocrystalline (182mm Multi-Busbar)
Module Dimension 1724×1134×35mm
Weight 20.9KG ±3%
Structure 3.2mm High-Transmittance AR Coated Tempered Glass + EVA Film + White Backsheet
Frame Anodized Aluminum Alloy

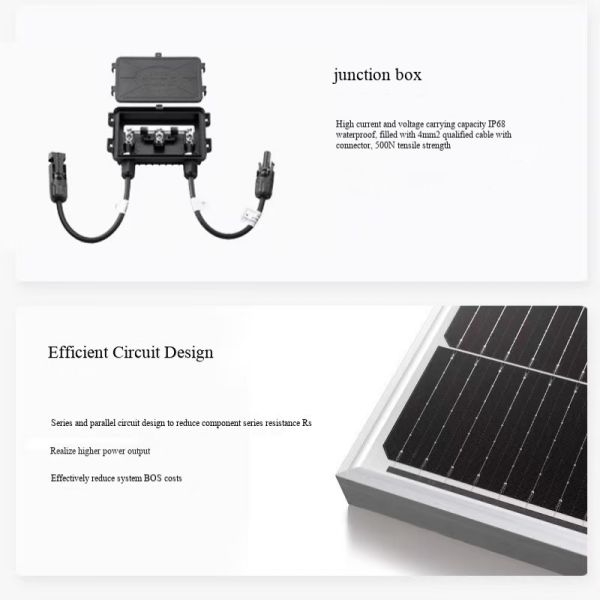

Junction Box 3-part, IP68 Protection Rating
Cable 4.0mm², (+) 280mm / (-) 280mm (Customizable)
Connector Original MC4 / MC4 Compatible
Mechanical Load Front 5400Pa / Rear 2400Pa (Static Pressure)
