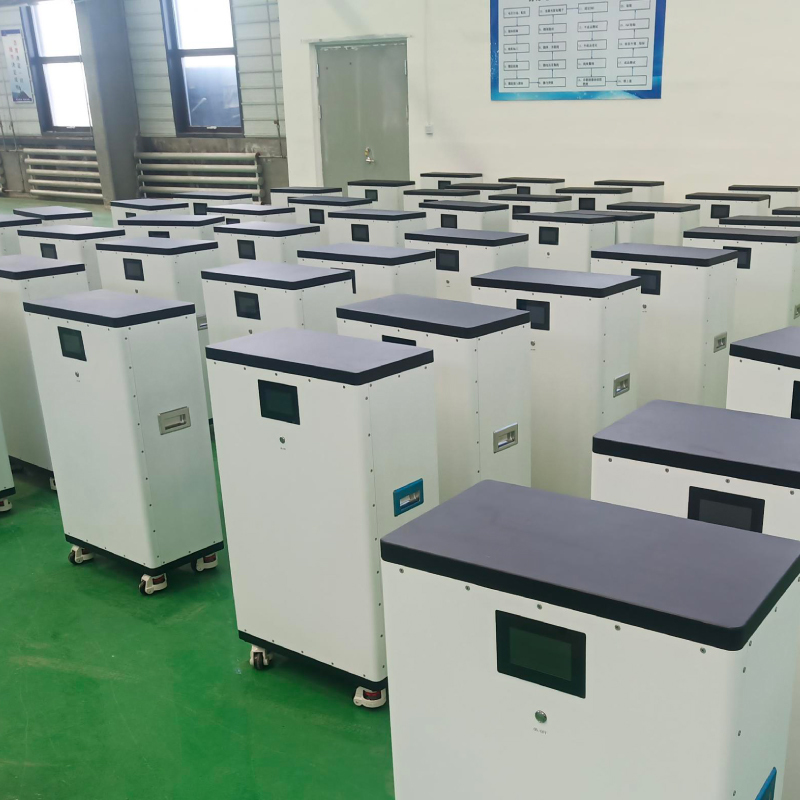

7680Wh Solar Energy Battery Storage 300AH 25.60V Solar PV And Battery Storage
7680Wh Solar Energy Battery Storage 300AH 25.60V Solar PV And Battery Storage
7680Wh Solar Energy Battery Storage 300AH 25.60V Solar PV And Battery Storage
7680Wh Solar Energy Battery Storage 300AH 25.60V Solar PV And Battery Storage
7680Wh Solar Energy Battery Storage 300AH 25.60V Solar PV And Battery Storage
7680Wh Solar Energy Battery Storage 300AH 25.60V Solar PV And Battery Storage
Specifications
Nominal Capacity :
300AH
Load Voltage :
≥42.0V
Discharge cut-off voltage :
20.0V
Discharging Cut-off Voltage :
20V
Finished Product Weight :
Approximately 75KG
Energy :
7680Wh
Instantaneous Current :
250A/1000MS
Rated Capacity :
300Ah
Minimum Capacity :
296.0Ah
Weight :
About 75KG
Discharging Current :
Continuous discharging current 200A
Charging Temperature :
0~45℃
Open Voltage :
20.0V-29.2V
Operating Temperature :
+10~+40℃ (Charge), -20~+60℃ (Discharge)
Finished Product Resistance :
≤ 120mΩ
Storage Temperature :
-20℃~45℃
Standard discharge current :
60.0A
Max discharge current :
200.0A
Charge voltage :
29.20V
Charging Voltage :
29.2V
communication mode :
RS232、RS485
Max charge current :
100.0A
Charging Current :
60A (maximum 100A)
Standard charge current :
60.0A
Discharging Temperature :
-20℃~55℃
Nominal Voltage :
25.60V
Internal Impedance :
≤80mΩ
Description

8kWh (25.6V 300Ah) Photovoltaic Energy Storage Battery

This high-capacity energy storage solution is designed for solar power generation systems. It allows for the efficient storage of excess electricity generated during the day, ensuring a reliable power supply for households during the night or inclement weather, ultimately reducing electricity costs.

Key Benefits

  • Efficient Energy Utilization: Maximize solar investment by storing surplus power.
  • Reliable Backup: Ensures power availability during night-time or rainy days.
  • Cost Optimization: Significantly reduces reliance on the grid and lowers electricity expenses.

Product Attributes

FOB Unitpiece
Packaging Size800*540*350mm

Technical Specifications

Parameter Detail 1 Detail 2
Nominal Voltage 25.6V 25.60V
Capacity 300AH 300Ah
Weight Approx. 75KG Approx. 75KG
Max Charge Current 100A 100.0A
Max Discharge Current 200A 200.0A
Communication - RS232, RS485
