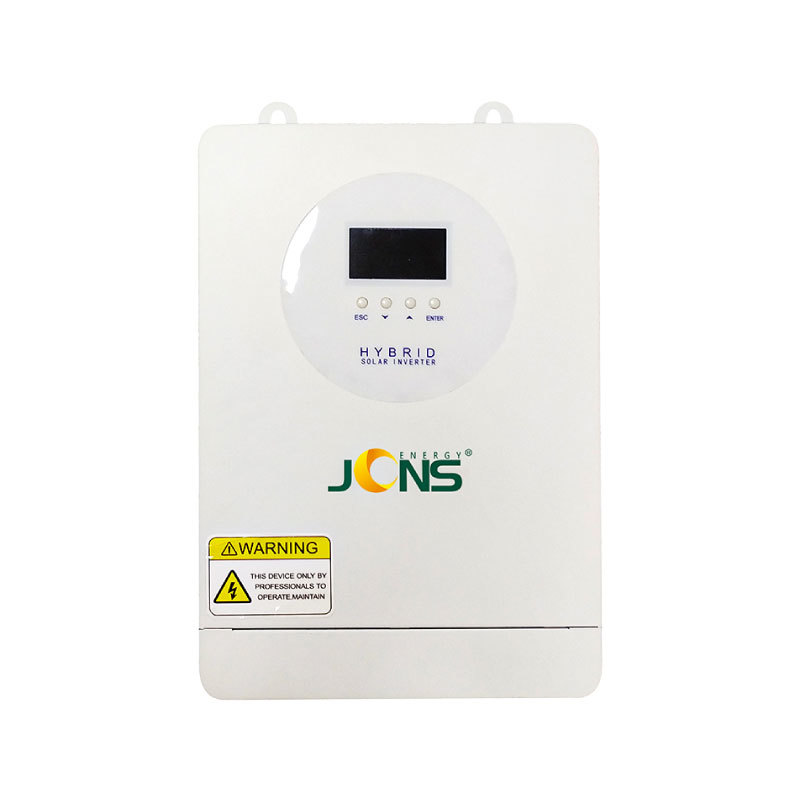

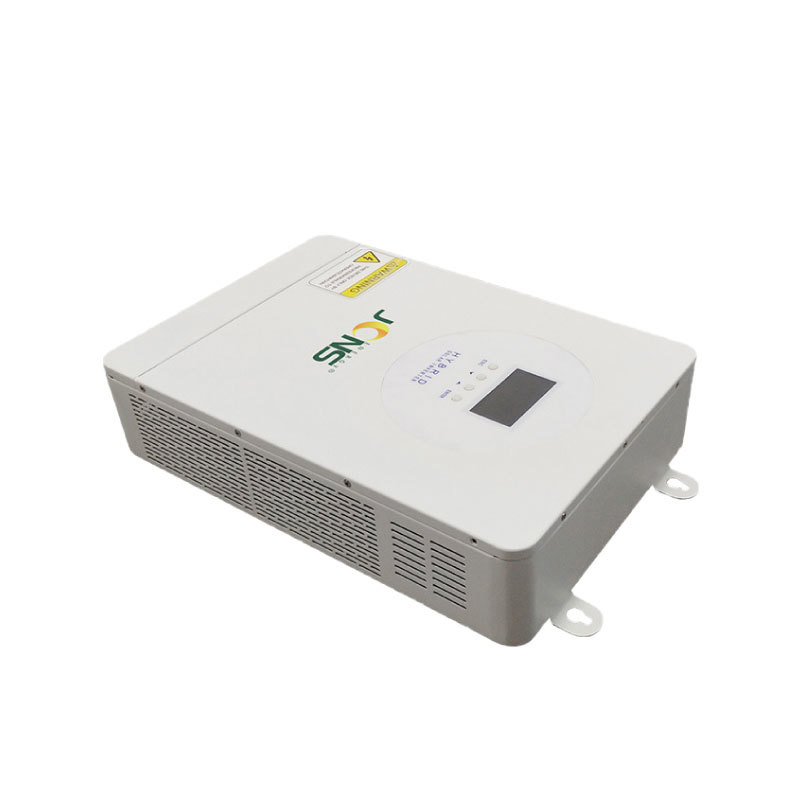

6200W Solar Hybrid Inverter 6.2kw Solar PV Inverter Pure Sine Wave
6200W Solar Hybrid Inverter 6.2kw Solar PV Inverter Pure Sine Wave
6200W Solar Hybrid Inverter 6.2kw Solar PV Inverter Pure Sine Wave
6200W Solar Hybrid Inverter 6.2kw Solar PV Inverter Pure Sine Wave
6200W Solar Hybrid Inverter 6.2kw Solar PV Inverter Pure Sine Wave
6200W Solar Hybrid Inverter 6.2kw Solar PV Inverter Pure Sine Wave
Specifications
INVERTER MODEL :
6.2KW
Low Loss Voltage :
170Vac±7V （UPS）；90Vac±7V （Appliances）
High DC Cut-off Voltage :
63Vdc
Surge Capacity :
2* rated power for 5 seconds
Max. PV Array Open Circuit Voltage :
500Vdc
Efficiency (Line Mode) :
>95%（ Rated R load, battery full charged ）
Transfer Time :
10ms typical （UPS）；20ms typical （Appliances）
Maximum Main Load :
6200W
Main Load Cut Off Voltage :
52VDC
AC Charging Current （Max） :
100Amp（@VI/P=230Vac）
High Loss Return Voltage :
270Vac±7V
Output Frequency :
50Hz
Low DC Cut-off Voltage :
41.0Vdc (@load＜50%) / 40.0Vdc (@load≥50%)
Nominal Py Voltage :
360Vdc
Net Weight，kg :
9.1kg/pcs
Peak Efficiency :
93%
Maximum Second Load(battery model) :
2066W
Output Short Circuit Protection :
Circuit Breaker
Cold Start Voltage :
46.0Vdc
Safety Certification :
CE
High Loss Return Frequency :
63+ 1Hz
Max. PV Array Power :
6500W
Nominal Input Voltage :
230Vac
High DC Recovery Voltage :
62Vdc
Dimension(D*W*H)，mm :
430*296*102mm
Low Loss Frequency :
40±1HZ
Output Voltage Waveform :
Pure Sine Wave
Low DC Warning Voltage :
44.0Vdc (@load＜50%) / 42.0Vdc (@load≥50%)
Operating Temperature Range :
-10°C ~ 50°C
Input Voltage Waveform :
Sinusoidal （utility or generator）
Nominal Input Frequency :
50Hz/60Hz（Auto detection）
Output Voltage Regulation :
230Vac+5%
Low DC Warning Return Voltage :
45.0Vdc (@load＜50%) / 44.0Vdc (@load≥50%)
Full Load :
6200W
Main Load Return Voltage :
54VDC
PV Array MPPT Voltage Range :
60Vdc-500Vdc
Humidity :
5% to 95% Relative Humidity (Non-condensing)
Low Loss Return Voltage :
180Vac±7V （UPS）；100Vac±7V（Appliances）
Max AC Input Voltage :
300Vac
Nominal DC Input Voltage :
48Vdc
Bulk Charging Voltage :
58.4 (Flooded) / 56.4 (AGM/Gel)
Storage temperature :
-15°C~ 60°C
High Loss Voltage :
280Vac+7V
Charging Algorithm :
3-Step
Floating Charging Voltage :
54Vdc
Max Charging Current :
120Amp
Rated Output Power :
6.2kw
Low Loss Return Frequency :
42+1Hz
High Loss Frequency :
65+1Hz
Overload Protection :
3s@≥150% load；5s@101%~150% load
No Load Power Consumption :
50W
Description
6200w Solar hybrid inverter, photovoltaic inverter

6200W Solar Photovoltaic Inverter

The 6200W solar photovoltaic inverter serves as the essential core component of your photovoltaic system. Engineered for high performance, it efficiently converts direct current (DC) from solar panels into stable alternating current (AC), ensuring reliable power for both residential households and grid-tied applications.

✔ High Conversion Efficiency: Optimized for maximum energy harvest.
✔ Pure Sine Wave Output: Ensures safety for sensitive electronic appliances.
✔ Robust Protection: Advanced overload and short-circuit safeguards.

Product Attributes

FOB Unit: Piece
Packaging: Not specified

Technical Specifications

Parameter Specification
Rated Output Power 6.2KW
Dimensions 430*296*102mm
Net Weight 9.1kg/pcs
Safety Certification CE
Max. PV Array Power 6500W
Output Waveform Pure Sine Wave
Operating Temperature -10°C ~ 50°C
Efficiency (Line Mode) >95%
