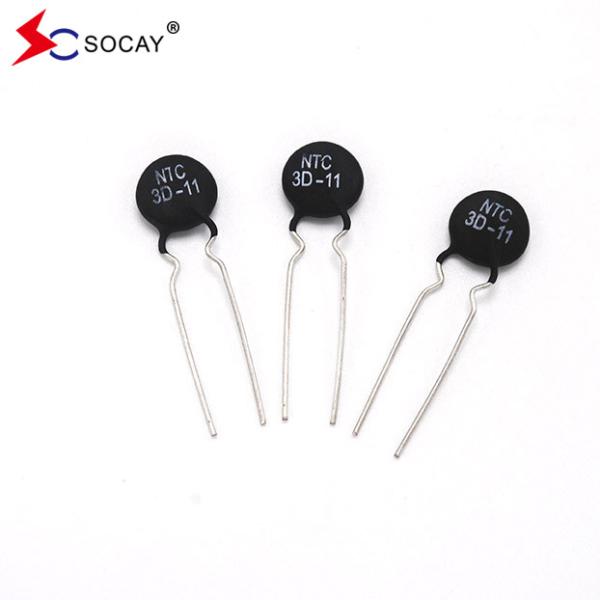

Ф11mm NTC Thermistor MF72-SCN8D-11 NTC 3D-11 For LED Driver Circuit Electric Motor
Ф11mm NTC Thermistor MF72-SCN8D-11 NTC 3D-11 For LED Driver Circuit Electric Motor
Ф11mm NTC Thermistor MF72-SCN8D-11 NTC 3D-11 For LED Driver Circuit Electric Motor
Ф11mm NTC Thermistor MF72-SCN8D-11 NTC 3D-11 For LED Driver Circuit Electric Motor
Specifications
Brand Name :
SOCAY
Model Number :
MF72-SCN8D-11
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000PCS / 500PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Product Name :
NTC Thermistor
Package Type :
Ф11mm
R25 :
8Ω
Imax :
3A
Resistance under Load :
255mΩ
δ :
14mW/℃
τ :
47 Secs.
Storage Temperature Range :
-10 to +40 ℃
Description

SOCAY NTC Thermistor MF72-SCN8D-11 in Stock Body Size Ф11mm for LED Driver Circuit

DATASHEET: MF72-SCN8D-11_v2105.1.pdf

Part Number

Resistance

at 25℃

±20%

Max.

Permissible

Working

Current

Resistance

under Load

(mΩ)

Dissipation

Factor

Thermal

Time

Constant

Maximum permissible capacitance

@240Vac

R25(Ω) Imax(A) (mΩ) δ(mW/℃) τ(Sec.) C(μF)
MF72-SCN8D-11 8 3 255 14 47 220


Ф11mm NTC Thermistor MF72-SCN8D-11 NTC 3D-11 For LED Driver Circuit Electric Motor

Features:

  • RoHS & Halogen Free (HF) compliant
  • Body size: φ13mm
  • Radial lead resin coated
  • High power rating
  • Wide resistance range
  • Cost effective
  • Operating temperature range: -40~+200℃
  • Agency recognition: UL /cUL/RoHS


Applications:

u Switch mode power supply

u Electric motor

u Transformer

u Adapter

u Projector

u Halogen lamp

u LED driver circuit

Storage Conditions of Products:

u Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.

Relative Humidity: ≤ 75%RH.

Keep away from corrosive atmosphere and sunlight.

u Period of Storage: 1 year.

Ф11mm NTC Thermistor MF72-SCN8D-11 NTC 3D-11 For LED Driver Circuit Electric Motor

Ф11mm NTC Thermistor MF72-SCN8D-11 NTC 3D-11 For LED Driver Circuit Electric Motor

Ф11mm NTC Thermistor MF72-SCN8D-11 NTC 3D-11 For LED Driver Circuit Electric Motor

Part Number Type of L Quantity (pcs/bag)
MF72-SCN8D-11 Lshort 1000
Llong 500

Item Test conditions / Methods Test Result

Tensile Strength

of Terminals

 Fasten body with a Load Applied to each lead 3.0Kg for 1sec. No break out and damage

Bending

Strength of

Terminals

 Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. No break out and damage
Solder Ability When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%. More than 95% solder ability
Temp. Cycle Test

(-40℃×→+25℃×3min) × 5Cycles

(-85℃×→+25℃×3min) × 5Cycles

 ∣ΔR/R∣≤ ±20 %
Humidity Test 45℃ 95%RH×1000 hours ∣ΔR/R∣≤ ±20 %
Load Life 6 AMP×1000 hours ∣ΔR/R∣≤ ±20 %
Insulation Test DC 700V R≥500MΩ
