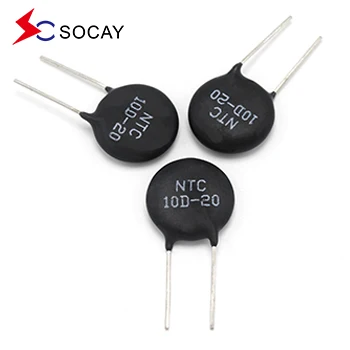

SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
Specifications
Brand Name :
SOCAY
Model Number :
MF72-SCN10D-5
Certification :
UL,REACH,RoHS,ISO
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
2000PCS
Price :
Negotiable
Delivery Time :
5-8 work days
Packaging Details :
Bulk
Product Name :
NTC Thermistor
Package Type :
Ф5mm
NTC R25 :
10Ω
Imax（A） :
0.7A
Resistance under Load :
771mΩ
δ（mW/℃） :
6mW/℃
τ（Secs.） :
20Secs.
Capacitance :
47μF
Description

SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range


DATASHEET: MF72-SCN10D-5.pdf

Features:

RoHS & Halogen Free (HF) compliant

Body size: Ф5mm

Radial lead resin coated

High power rating

Wide resistance range

Cost effectiv

Operating temperature range: -40~+200℃

 Certificate: UL /cUL/RoHS

Utilize:

Switch mode power supply

 Power operated

Transformer

Adapter

Projector

Halogen lamp

LED driver circuit
​

Product storage conditions:

Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.

Relative Humidity: ≤ 75%RH.

Keep away from corrosive atmosphere and sunlight.

Period of Storage: 1 year

Electrical characteristics:

Part No.

Resistance

at 25℃

±20%

Max.

Permissible

Working

Current

Resistance

under Load

(mΩ)

Dissipation

Factor

Thermal

Time

Constant

Maximum permissible capacitance

@240Vac
R25(Ω) Imax(A) (mΩ) δ(mW/℃) τ(Sec.) C(μF)
MF72-SCN2.5D-13 10 0.7 771 6 20 47

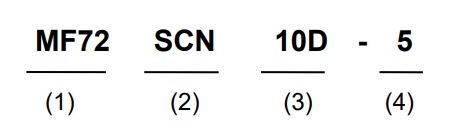

Part No. Code:

SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range

(1) MF72: MF72 Series.

(2) SCN: Socay NTC.

(3) 2.5D: Zero Power Resistance at 25℃(R25): 10=10Ω.

(4) Body Size: 5=Ф5mm.

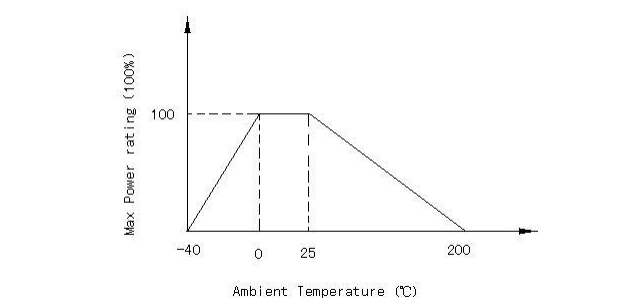

Maximum Power

SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range

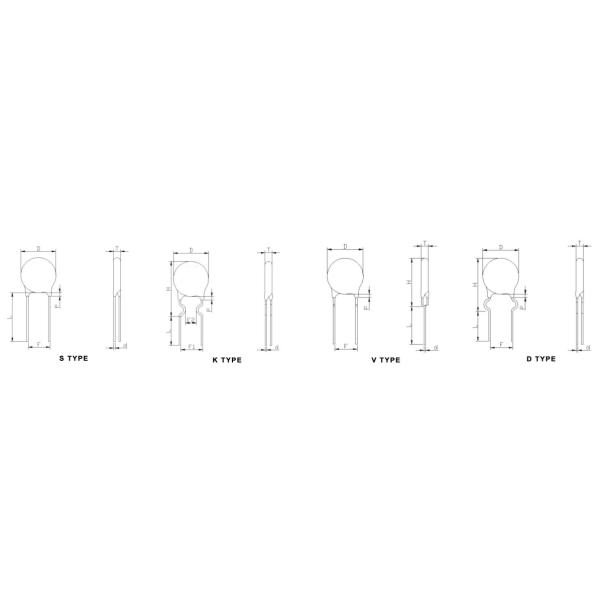

Dimensions and Structure (Unit: mm)

SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range

D max T max P max F H Lshort / Llong d Type
6 4 3 5±0.5 -- 7±1/20±1 0.55 S
6 4 3 5±0.5 10±1 4±1/20±1 0.55 K/V/D

Packing:

Part Number Type of L Quantity (pcs/bag)
MF72-SCN10D-5 Lshort 2000
Llong 1000

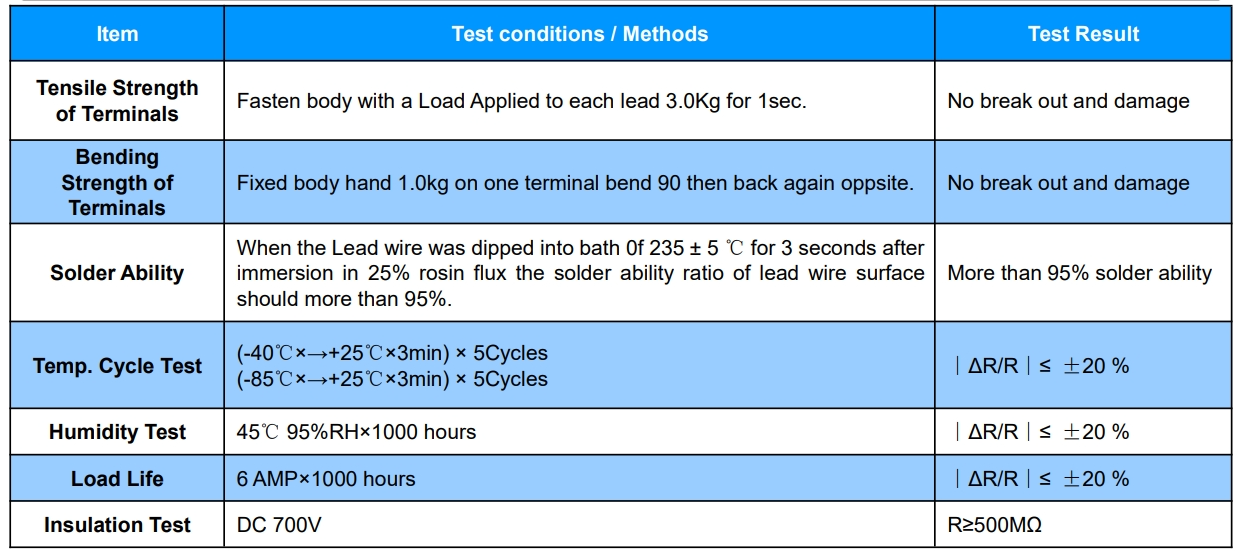

Dependability​:

SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range

SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range

Company Profile:

We are a manufacturer and supplier with over 20 years of experience in electronic components, as shown below,
1- ESD
2- TVS Diodes
3- PPTC Resettable Fuse
4- Gas Discharge Tube
5- NTC Themistor
6- Varistor,etc.
SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance RangeSOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance RangeSOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance RangeSOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance RangeSOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance RangeSOCAY Power NTC Thermistor MF72-SCN10D-5 10Ω Imax Wide Resistance Range

FAQ

Q: May we get some samples?

A: Of course,samples are available.

Q: What is product lead time?
For GDT, TVS, and ESD, the lead time will 1-2 weeks. For TSS, MOV, MLV, NTC, and PPTC, the lead time 2-3 weeks. According your specific requirements, we will further confirm the accurate lead time.


Q: Do you support customization?
A: Of course, We do.

Please feel free to contact us if you have any question.

Contact Person: Aria Wei
Tel/WhatsApp/Wechat/Skype: +8615778830733
Email Address: sc72@socay.com
Website: www.socay.com / www.socay.en.alibaba.com

Address: Floor 4, Building C, Hengxing Science park, No.19 Minqing Road, Longhua District, Shenzhen
