1550nm Butterfly SOA PM with 23dbm Max Output Power for Fiber Optic Sensor Systems and Optical Communication
1550nm Butterfly SOA PM with 23dbm Max Output Power for Fiber Optic Sensor Systems and Optical Communication
1550nm Butterfly SOA PM with 23dbm Max Output Power for Fiber Optic Sensor Systems and Optical Communication
1550nm Butterfly SOA PM with 23dbm Max Output Power for Fiber Optic Sensor Systems and Optical Communication
Specifications
Brand Name :
JANHOO
Model Number :
JSA-BT525G35-PM
Place of Origin :
CHINA
MOQ :
1
Price :
1500USD
Delivery Time :
1-3DAYS
Description
1550nm Butterfly SOA PM, max output power 23dbm
Product Applications
Applied in distributed fiber optic sensor systems, replacing acousto-optic modulators, used as modulators/choppers
Applied in wide-spectrum light sources, such as the wide-spectrum light source for fiber grating demodulators
Applied in optical communication systems, achieving signal amplification at 1550nm wavelengths, substituting for some EDFA (Erbium-Doped Fiber Amplifiers)
Applied in wind lidar, space light detection, and space optical communication, combined with narrow linewidth lasers to form MOPA (Master Oscillator Power Amplifier) lasers

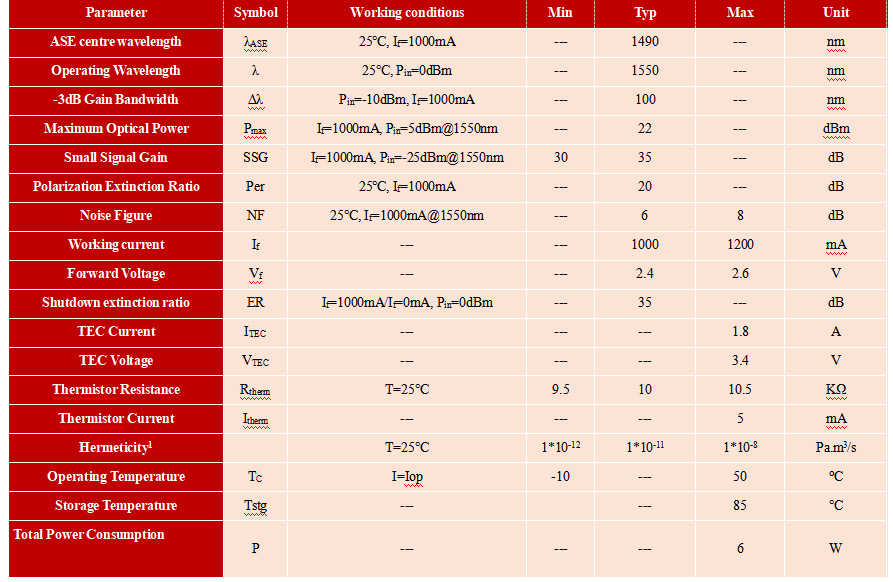

Product Specifications
1550nm Butterfly SOA PM with 23dbm Max Output Power for Fiber Optic Sensor Systems and Optical Communication
Note: The hermeticity value is determined for the tube housing package, excluding any residual interference from outside the housing as per the test results.
1550nm Butterfly SOA PM with 23dbm Max Output Power for Fiber Optic Sensor Systems and Optical Communication 1550nm Butterfly SOA PM with 23dbm Max Output Power for Fiber Optic Sensor Systems and Optical Communication 1550nm Butterfly SOA PM with 23dbm Max Output Power for Fiber Optic Sensor Systems and Optical Communication 1550nm Butterfly SOA PM with 23dbm Max Output Power for Fiber Optic Sensor Systems and Optical Communication
