850nm 20mW High Output Power Superluminescent Diode with 3dB Bandwidth >45nm for Single-Mode Fiber-Optic Applications
850nm 20mW High Output Power Superluminescent Diode with 3dB Bandwidth >45nm for Single-Mode Fiber-Optic Applications
850nm 20mW High Output Power Superluminescent Diode with 3dB Bandwidth >45nm for Single-Mode Fiber-Optic Applications
850nm 20mW High Output Power Superluminescent Diode with 3dB Bandwidth >45nm for Single-Mode Fiber-Optic Applications
Specifications
Brand Name :
JANHOO
Model Number :
JSL-BT8330P20
Place of Origin :
CHINA
MOQ :
1
Price :
1000USD
Delivery Time :
7days
Description
1. Description:

The 850nm single-mode fiber-optic superluminescent light emitting diode (SLED) module used in high reliability OCT applications.

2. Features:
  • 20mW High output power;
  • 14PIN BTF Package;
  • 3dB bandwidth of >45nm;
  • Operating Temperature -45~+70℃;
  • SM fiber or PM fiber pigtail.
3. Applications:
  • Fiber optic gyroscopes;
  • Biomedical imaging device;
  • Optical coherence topography;
  • Optical test instrument.
4. Absolute Maximum Ratings:
Parameter Symbol Min. Typ. Max. Unit
Storage temperature TS -45 - 85 ℃
Operating case temperature TC -20 - 70 ℃
Reverse voltage VCC - - 2.0 V
Forward current IC - - 290 mA
Thermoelectric cooler voltage V - - 3.2 V
Thermoelectric cooler current I - - 1.5 A
Storage humidity - 5 - 85 %RH
Lead solder temperature - - - 260 ℃
Lead solder time - - - 10 S
Tensile strength of pigtail - 1 - - kgf
Fiber bend radius - 30 - - mm
5. Electro-Optical Characteristics(25℃ laser temperature):
Parameter Symbol Min. Typ. Max. Unit Notes
Operating current IOP - 250 290 mA CW
Operating voltage VOP - 2.0 2.5 V CW
Power in fiber P 20 - - mW CW
3dB bandwidth Δλ 45 50 nm CW
Center length λC 830 840 850 nm CW
Monitor current IM 0.05 0.1 - mA
Ripple wave Rip - 0.15 0.3 dB
TEC current IC - - 1.0 A TC = -20~+70℃
TEC voltage VC - - 2.5 V TC = -20~+70℃
Thermistor resistance Rth 9.5 10 10.5 KΩ TC = 25℃
Thermistor B constant B - 3950 - K -
6. Fiber Pigtail Specifications:
Part Description
SM Fibre CS780
Pigtail type 900μm loose tube
Optical connector FC/APC
Fibre Pigtail Length 1m

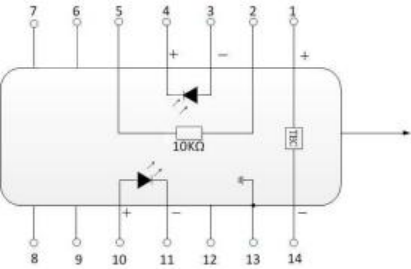

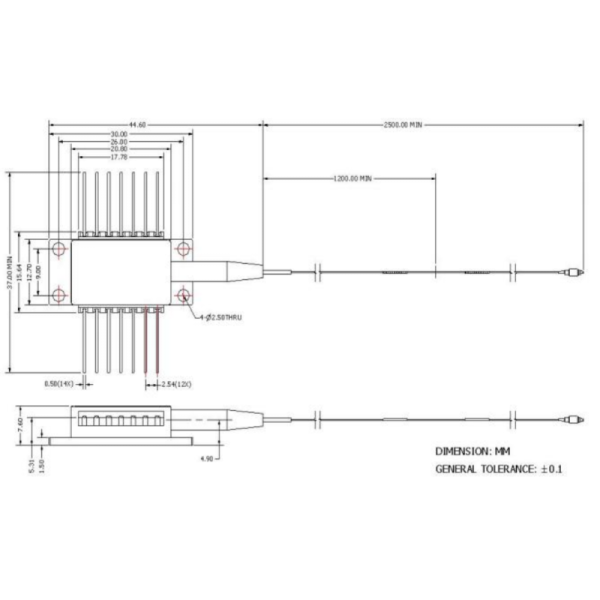

7. Package drawing&PIN-OUT Definition(Unit:mm):

850nm 20mW High Output Power Superluminescent Diode with 3dB Bandwidth >45nm for Single-Mode Fiber-Optic Applications

850nm 20mW High Output Power Superluminescent Diode with 3dB Bandwidth >45nm for Single-Mode Fiber-Optic Applications

PIN Description PIN Description
1 TEC(+) 14 TEC(-)
2 Thermistor 13 Case Ground
3 PDAnode 12 NC
4 PD Cathode 11 SLD Cathode
5 Thermistor 10 SLDAnode
6 NC 9 NC
7 NC 8 NC
