840nm Wavelength 10mW Output Power 35nm 3dB Bandwidth Superluminescent Diode SLED Module for OCT Applications
840nm Wavelength 10mW Output Power 35nm 3dB Bandwidth Superluminescent Diode SLED Module for OCT Applications
840nm Wavelength 10mW Output Power 35nm 3dB Bandwidth Superluminescent Diode SLED Module for OCT Applications
840nm Wavelength 10mW Output Power 35nm 3dB Bandwidth Superluminescent Diode SLED Module for OCT Applications
Specifications
Brand Name :
JANHOO
Model Number :
JSL-BT8330P05
Place of Origin :
CHINA
MOQ :
1
Price :
857USD
Delivery Time :
7days
Wavelength :
840nm
Description
1. Description:

The single-mode fiber-optic superluminiscent light emitting diode (SLED) module used in high reliability OCT applications, frequency up to 1.5GHz.

2. Features:
  • High output power;
  • 14PIN BTF Package;
  • 3dB bandwidth of >35nm;
  • Operating Temperature -45~+70℃;
  • SM fiber or PM fiber pigtail.
3. Applications:
  • Fiber optic gyroscopes;
  • Clinical healing equipment;
  • Biomedical imaging device;
  • Optical coherence topography.
4. Absolute Maximum Ratings:
Parameter Symbol Min. Typ. Max. Unit
Reverse voltage VCC - - 2.0 V
Forward current IC - - 250 mA
Thermoelectric cooler voltage V - - 3.2 V
Thermoelectric cooler current I - - 1.2 A
Storage humidity - 5 - 85 %RH
Lead solder temperature - - - 260 ℃
Lead solder time - - - 10 S
Tensile strength of pigtail - 1 - - kgf
Fiber bend radius - 30 - - mm
Operating case temperature TC -45 - 70 ℃
Storage temperature TS -55 - 85 ℃
5. Electro-Optical Characteristics(25℃ laser temperature):
Parameter Symbol Min. Typ. Max. Unit Notes
Operating current ITH - 180 220 mA CW
Power in fiber P 10.0 - - mW CW, ITH = 180mA
3dB bandwidth Δλ 30 35 nm CW
Center length λC 820 840 860 nm CW
Spectrum modulation - - 0.1 0.2 dB -
Parameter Symbol Min. Typ. Max. Unit Notes
Extinction ER - 16 - dB CW
TEC current IC - - 2 A TC=-45~+70℃
TEC voltage VC - - 3.5 V TC=-45~+70℃
Thermistor resistance Rth 9.5 10 10.5 KΩ TC= 25℃
Thermistor B constant B - 3950 - K -
6. Fiber Pigtail Specifications:
Part Description
SM Fibre SM 5/125 Corning HI780 or equivalent
Pigtail type 900μm loose tube
Optical connector FC/APC
Fibre Pigtail Length 1m
SM Fibre SM 5/125 Corning HI780 or equivalent

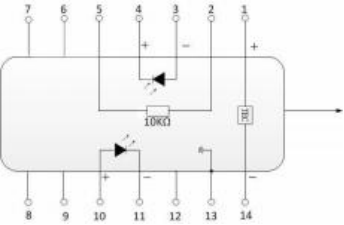

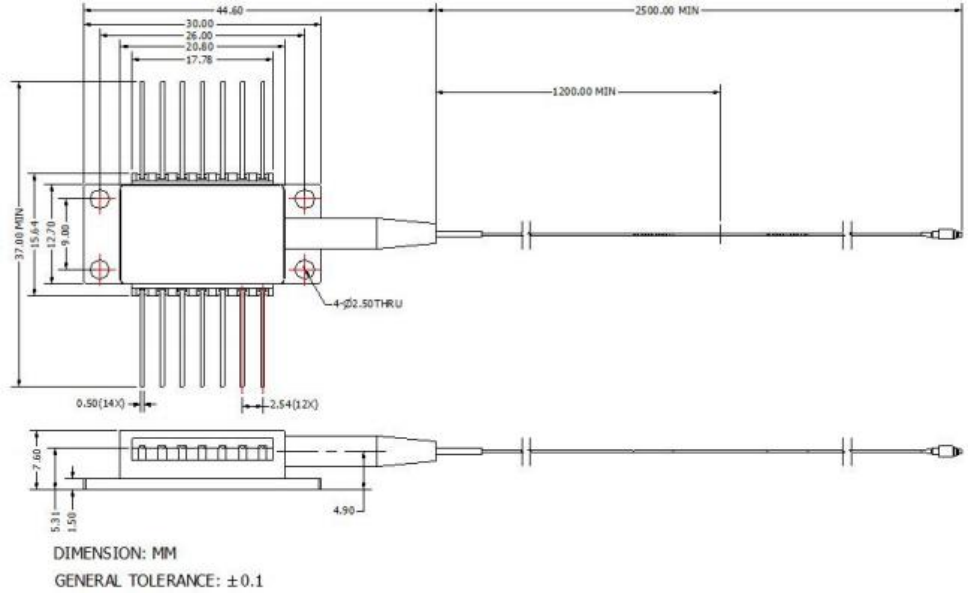

7. Package drawing&PIN-OUT Definition(Unit:mm):

840nm Wavelength 10mW Output Power 35nm 3dB Bandwidth Superluminescent Diode SLED Module for OCT Applications

840nm Wavelength 10mW Output Power 35nm 3dB Bandwidth Superluminescent Diode SLED Module for OCT Applications

PIN Description PIN Description
1 TEC(+) 14 TEC(-)
2 Thermistor 13 Case Ground
3 NC 12 NC
4 NC 11 SLD Cathode
5 Thermistor 10 SLDAnode
6 NC 9 NC
7 NC 8 NC
