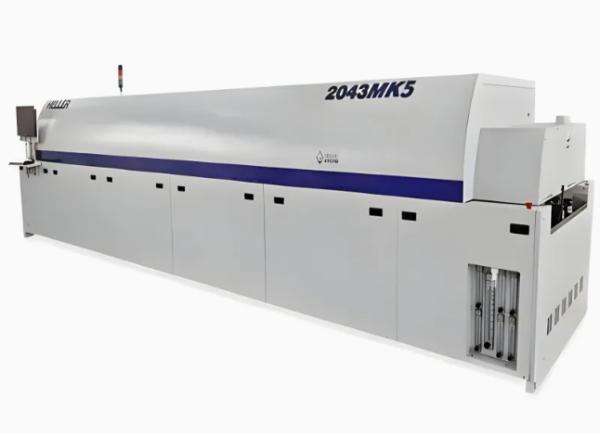

HELLER 2043 MK5 SMT Solder Reflow Oven for SMT Line Machine
HELLER 2043 MK5 SMT Solder Reflow Oven for SMT Line Machine
HELLER 2043 MK5 SMT Solder Reflow Oven for SMT Line Machine
HELLER 2043 MK5 SMT Solder Reflow Oven for SMT Line Machine
HELLER 2043 MK5 SMT Solder Reflow Oven for SMT Line Machine
HELLER 2043 MK5 SMT Solder Reflow Oven for SMT Line Machine
Specifications
Brand Name :
HELLER
Model Number :
2043
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, Credit card
Supply Ability :
5000
Delivery Time :
3-5 days
Packaging Details :
wooden box
product name :
HELLER 2043 MK5 SMT Solder Reflow Oven for SMT Line Machine
model :
2043
brand :
HELLER
Oven Length :
680cm
Process Gas Options :
Air, Nitrogen, Formic Acid, forming gas
Heated Zones :
Convection: 10 Top / 10 Bottom IR: 3 Top
327 cm / 430 cm :
327 cm / 430 cm
Cool Zones :
Cool Zones
500mm (L) x 450mm (W) x 29mm (H) :
500mm (L) x 450mm (W) x 29mm (H)
package :
wooden case
Description

HELLER 2043 MK5 SMT Solder Reflow Oven for SMT Line Machine

The ultimate high volume production solutions with belt speeds up to 1.4 m/min to accommodate the fastest pick and place systems.

  • Lead Free Certified!
  • Maintenance Free!
  • Lowest Nitrogen & Electrical Usage!
  • Integrated Cpk software at No Charge!

The 1936 and 2043 MK5 systems deliver the highest levels of repeatability with the lowest delta Ts. The latest breakthroughs associated with the Mark 5 reflow system now provide you with an even lower cost-of-ownership. Heller's new heating and cooling advances deliver up to 40% reduction in nitrogen and electrical consumption. This makes the MK 5 system not only the premier reflow soldering system but the best overall value in the industry!

HELLER 2043 MK5 SMT Solder Reflow Oven for SMT Line Machine

INNOVATION FOR YOUR BENEFIT

Advancements like the invention of the first waterless / filterless flux separation system earned Heller the prestigious Frost & Sullivan Award for Innovation in reflow soldering. But more importantly, this development extended preventative maintenance intervals from weeks to months for our systems. Additional breakthroughs in energy management have helped Heller's customers remain environmentally responsible while still maintaining their sustainability guidelines.

HELLER Solder Reflow Oven Detail

The 2043MK5-VR is the ultimate high volume production vacuum reflow oven with 10 heated convection zones and 3 IR zones and 430cm (169") in total heated length. A large vacuum chamber accommodates boards up to 500mm in length, and 3 cool zones provide cooling rates >3°C/sec - even on large boards.

Oven Length 680cm
Process Gas Options Air, Nitrogen, Formic Acid, forming gas
Heated Zones Convection: 10 Top / 10 Bottom IR: 3 Top
Heated Length (Convection/Total) 327 cm / 430 cm
Cool Zones 3 Top (Bottom Option)
Max Working Temperature (Convection / IR) Standard: 350°C / 400°C, Option: 400°C / 480°C
Min Vacuum Standard:10 Torr Option: <10 Torr
Max Board Size 500mm (L) x 450mm (W) x 29mm (H)
Cleanroom Option Down to Class 1000

HELLER 2043 MK5 SMT Solder Reflow Oven for SMT Line Machine
