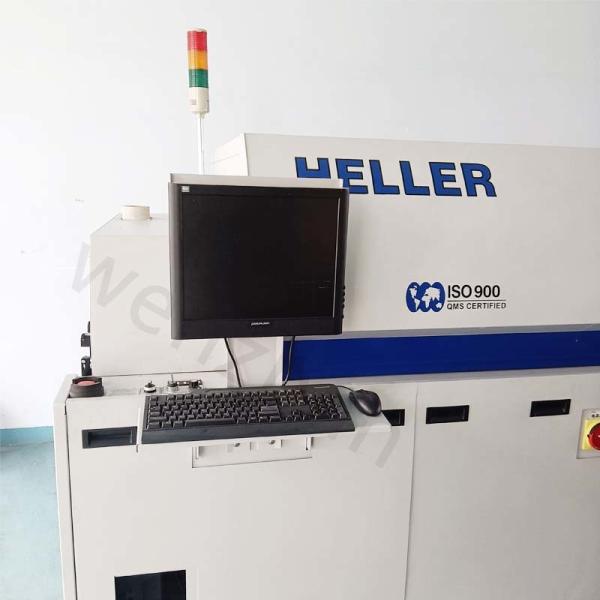

Smt Oven Reflow Solder Machine Heller Reflow Soldering Oven Heller 1809 MK3 Pcb Oven Reflow Machine for Smt Machine Line

The domestic reflow soldering machine is a crucial piece of equipment in the electronics manufacturing industry, primarily used for soldering surface mount devices (SMDs) onto printed circuit boards (PCBs). This machine ensures reliable electrical connections and is essential for producing high-quality electronic assemblies.

Functionality:

1. Heating Process: The reflow soldering machine uses a controlled heating process to melt solder paste applied to the PCB. The heating is typically done in multiple zones, allowing for precise temperature control to avoid damaging sensitive components.
2. Solder Paste Application: Prior to reflow, solder paste is applied to the PCB pads. The machine can accommodate various types of solder pastes, ensuring compatibility with different components and applications.
3. Conveyor System: The machine features a conveyor system that transports PCBs through different heating zones. This continuous movement allows for efficient processing of multiple boards in a single run.
4. Cooling Phase: After the soldering process, the PCBs enter a cooling zone where they are rapidly cooled to solidify the solder joints. This step is critical for ensuring strong and reliable connections.
5. Quality Control: Many reflow soldering machines include integrated inspection systems to check for defects such as insufficient solder or misaligned components, ensuring that only quality products proceed to the next manufacturing stage.

Usage Instructions:

1. Setup: Position the reflow soldering machine in a clean and controlled environment. Ensure all necessary connections and materials are ready.
2. Load PCBs: Place the PCBs onto the conveyor system, ensuring they are properly aligned and secured.
3. Configure Settings: Use the control panel to input parameters such as temperature profiles, conveyor speed, and time settings based on the solder paste specifications.
4. Start the Reflow Process: Activate the machine and monitor the process to ensure that the heating and cooling phases occur as planned.
5. Regular Maintenance: Conduct routine checks and maintenance to ensure the machine operates efficiently and reliably.

Application Areas:

Domestic reflow soldering machines are widely used in:

1. Consumer Electronics: For assembling devices like smartphones, tablets, and computers.
2. Automotive Electronics: In the production of electronic control units and sensors.
3. Medical Devices: For soldering components in critical medical equipment.

The domestic reflow soldering machine is essential for ensuring high-quality solder joints and reliable electronic assemblies in various applications.
