Automatic SMT PCB NGOK Unloader Machine With Magazine Loader Buffer Stocker For Production Line
Automatic SMT PCB NGOK Unloader Machine With Magazine Loader Buffer Stocker For Production Line
Automatic SMT PCB NGOK Unloader Machine With Magazine Loader Buffer Stocker For Production Line
Automatic SMT PCB NGOK Unloader Machine With Magazine Loader Buffer Stocker For Production Line
Automatic SMT PCB NGOK Unloader Machine With Magazine Loader Buffer Stocker For Production Line
Automatic SMT PCB NGOK Unloader Machine With Magazine Loader Buffer Stocker For Production Line
Automatic SMT PCB NGOK Unloader Machine With Magazine Loader Buffer Stocker For Production Line
Automatic SMT PCB NGOK Unloader Machine With Magazine Loader Buffer Stocker For Production Line
Automatic SMT PCB NGOK Unloader Machine With Magazine Loader Buffer Stocker For Production Line
Automatic SMT PCB NGOK Unloader Machine With Magazine Loader Buffer Stocker For Production Line
Specifications
Brand Name :
HXT
Model Number :
HXT-250
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$3,600
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
10-15
Packaging Details :
Wodden box
Dimensions :
1500mm×1500mm×1300mm
Power supply :
220V AC, single phase
PCB thickness :
0.6-3.0mm
Transfer speed :
10S/PCS
Transport height :
900±20mm
Delivery weight :
60-2000g
Description

SMT PCB NG OK Buffer Conveyor Unloader Machine With Vacuum Loader Magazine System Production Line

Automatic PCB Magazine Loader Unloader NGOK Buffer Stocker Machine For SMT Pick And Place Equipment

Factory Direct SMT NGOK Unloader Machine With PLC Control PCB Buffer Conveyor LED Production Line

Smart Customized NGOK Unloader Buffer Machine With Cooling System Easy Operation PCB Handling Equipment

Original SMT PCB Magazine Loader Unloader NGOK Buffer Stocker Machine For Pick And Place Assembly

Automatic NG OK Unloader Conveyor Machine With Chain Transmission Electronic Equipment Production Line

High Efficiency SMT PCB NGOK Buffer Unloader Machine With Motor PLC Control Industrial Assembly Line

Strip Die Bonder-Dual Dispensing

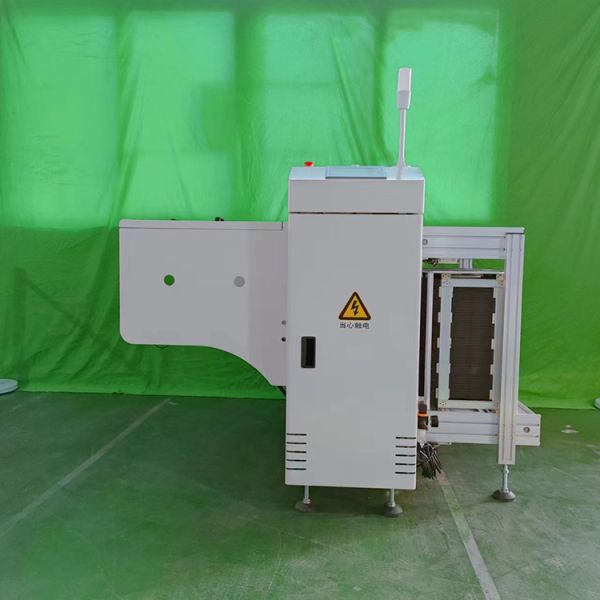

  • Appearance structure: sheet metal structure and aluminum profile into the frame, the surface is sprayed, and the color is corrugated white.
  • Microcomputer PLC control system, stable and reliable.
  • Touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue.
  • Multiple sound and light and touch screen alarm function.
  • The lifting step of the rack can be set according to the thickness of the PCB.
  • With automatic counting function, it is convenient for production statistics.
  • Humanized design ensures that the PCB board will not be broken, improving output capacity
  • The lower connection receives the PCB board and uses the motor to send the board to the material frame
  • Using stepping motor to push the plate, the strength can be adjusted, and the speed can be set on the touch screen.
  • The push plate device adopts two limit positions to protect the PCB board
  • Good boards and bad boards can be separated from top to bottom, and the number of layers can be set.
  • Double line numbers distinguish between NGOK
Product specification
Device model 250 330 390
Applicable frame size 355*320*563mm 460*400*563mm 535*460*563mm
PCB board size (MM) 350*(50-250) 450*(50-330) 530*(50-390)
PCB thickness 0.6-3.0mm 0.6-3.0mm 0.6-3.0mm
transfer speed 10S/PCS 10S/PCS 10S/PCS
Transport height 900±20mm 900±20mm 900±20mm
delivery weight 60-2000g 60-2000g 60-2000g
Dimensions (L*W*H) 1500x1500x1300mm 1900x1600x1250mm 2100x1750x1250mm
body weight About 200kg 380KG 420KG
Starting power/no-load power 200W 250W 300W
Power supply and negative charge 220V AC, single phase
Step selection 1~5 steps (10mmstep distance)
Supply air source 4-6kg
Fixed side Front fixation (rear fixation can be customized)
Transmission direction Left to right (can be customized from right to left)
Number of storage boxes 2pcs
Conveying direction L-R/R-L optional
Withstand voltage AC terminal to ground 1500VAC, 1 minute
Use environment Environment free of corrosive gas and dust
Anti-jamming Voltage noise: 1000Vp-p, wave width 1us, 1 minute
Transfer and connection push PCB board Using stepping motor (42*48)
Parallel transfer sub-NGOK PCB Adopt 86 high-precision stepping motor
Translation load transmission device Imported steel wire synchronous belt
NG line number Automatically move to the NG storage frame (the storage frame can be automatically entered and exited)
OK line number Automatically enter the OK box through the translation platform
Applications:

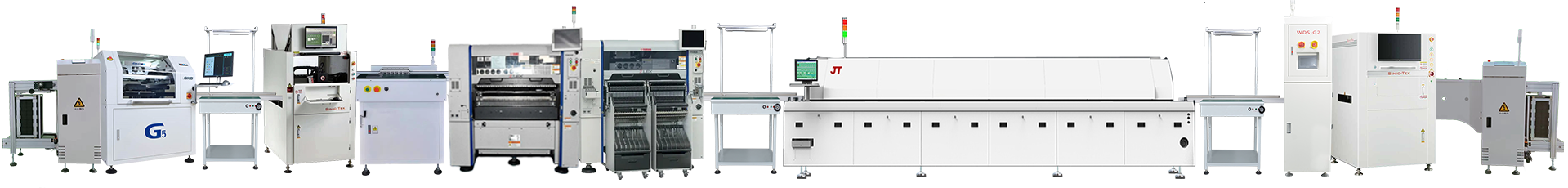

For SMT PCB board production assembling full line machines.
