Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Specifications
Brand Name :
HXT
Place of Origin :
Guangdong, China
MOQ :
1
Price :
5400
Certification :
CE
Payment Terms :
T/T
Supply Ability :
The production capacity is 50 units a month
Delivery Time :
10-15 days
Packaging Details :
Vacuum packing plus wooden box packing
Liquid tank capacity :
40 liters
Steel mesh size :
L750 × W750 × H40 mm
Overall dimensions :
L1000×W700×H1730 mm
Air pressure :
0.4～0.7 Mpa
Air consumption :
400～600 L/Min
Net weight :
210Kg
Description
High Pressure Automatic Pneumatic Stencil Cleaner with 4-Stage Filtration System – 360° Rotary Spray for Stencil, Misprint PCB Board & Scraper Cleaning
Product Introduction

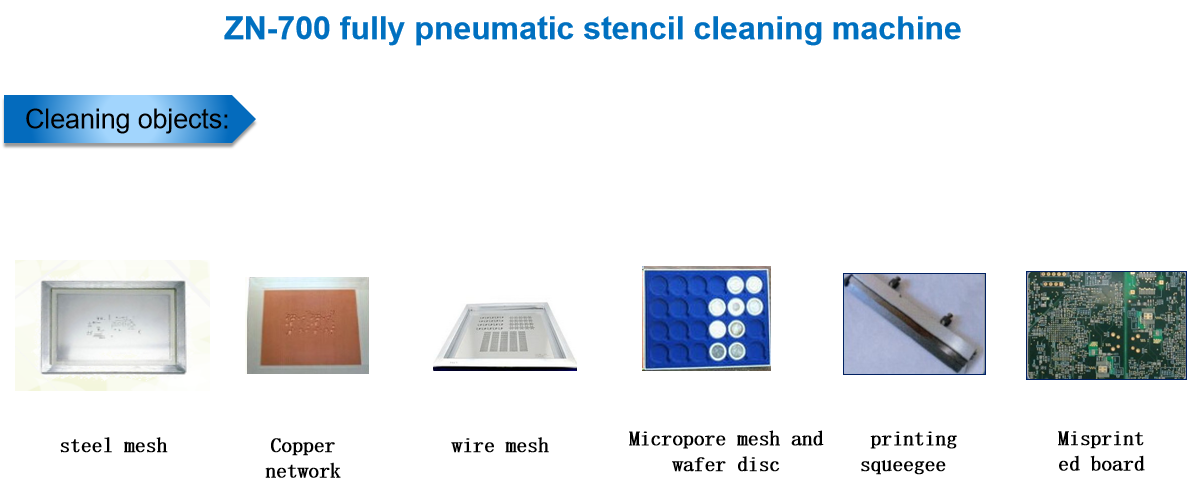

  • The Pneumatic Stencil Cleaner is designed for the SMT (Surface Mount Technology) production line. It efficiently removes solder paste, red glue, flux, and other high‑viscosity residues from:
  • SMT stencils (laser‑cut, step, and frameless)
  • Misprinted PCB boards
  • Squeegees / scrapers (metal or polyurethane)
  • Copper screens, fixtures, pallets, and tooling
  • By operating entirely on compressed air, the machine eliminates electrical ignition risks, making it ideal for environments where safety is paramount.
Key Applications
  • SMT laser stencils / step stencils
  • Misprinted PCB assemblies
  • Printing squeegees (metal or rubber)
  • Copper screens and silk screens
  • Wave solder pallets, fixtures, and carriers
  • Components with residual high‑viscosity adhesives
Technical Specifications
Applicable steel mesh sizeb: L750 × W750 × H40 (mm) [Extra large sizes need to be customized]
Overall dimensions : L1000×W700×H1730 (mm)
Liquid tank maximum capacity 40 liters
Optimum liquid usage 30 liters
Cleaning method: 360°rotating double-sided isobaric spray roll high-pressure spray (cleaning + drying)
Cleaning time 2-5min(for reference only)
Drying time 2-5min(for reference only)
External air source 0.4～0.7 (Mpa)
Air consumption 400～600(L/Min)
Exhaust port size Φ125×H25(mm)

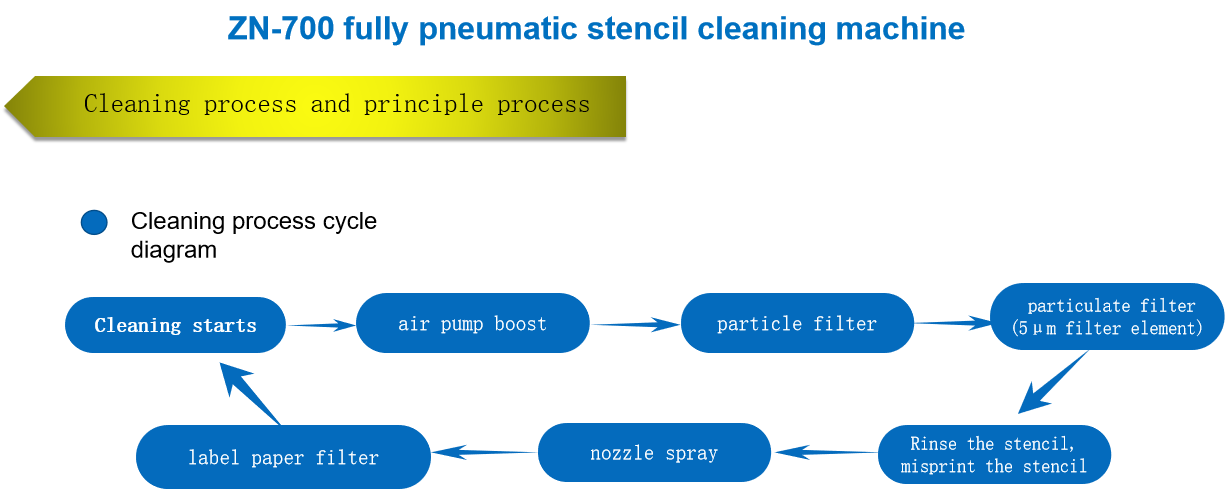

Filtration system (first level) First level filter: (filters impurities and labels)
Filtration system (secondary) Secondary filter: (filters solder paste and rosin particles)
Filtration system (three levels) Third level filter: 5㎛ filter element (filters solder paste and rosin particles)
Machine net weight: about 210Kg

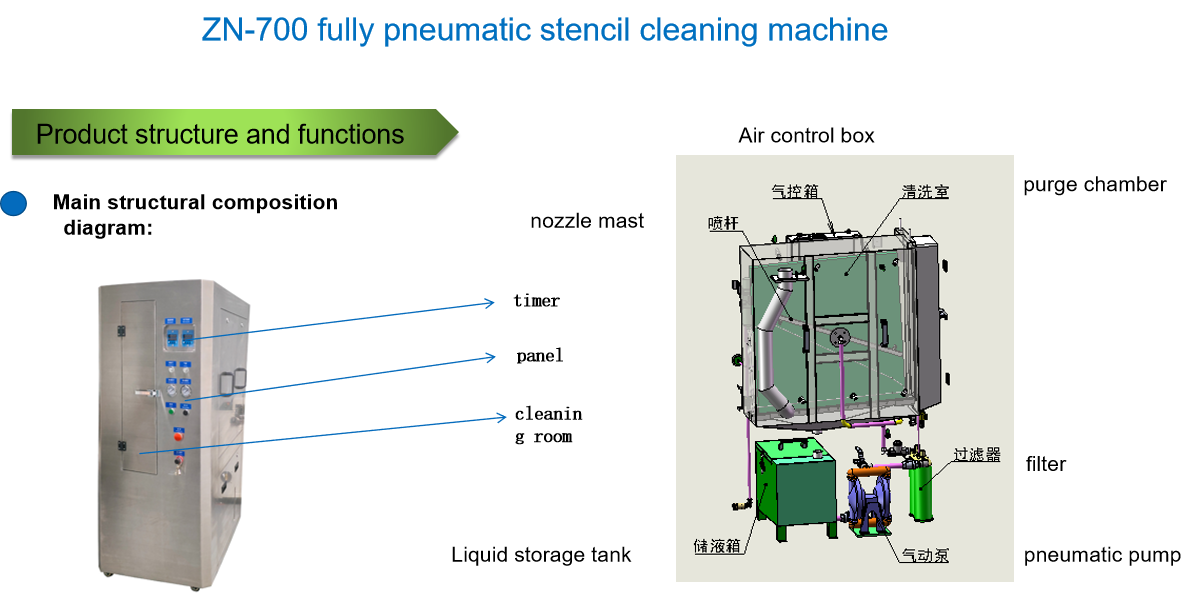

Machine Details
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Explosion-Proof Pneumatic Stencil Cleaner SMT Stencil Cleaning Machine For PCB Solder Paste & Glue Removal
Key Features
  • Fully Pneumatic Drive – No electrical connection required; powered solely by compressed air.
  • 360° High‑Pressure Rotary Spray – Ensures thorough cleaning of stencil apertures, PCB surfaces, and complex tooling.
  • Multi‑Stage Filtration System – Integrated 4‑stage filtration separates solder particles and contaminants, extending cleaning fluid life.
  • Versatile Solvent Compatibility – Works with IPA, water‑based cleaners, and solvent‑based solutions.
  • One‑Button Automatic Cycle – Combines washing, rinsing, and drying in a fully automatic sequence.
Applicable Industries
  • Electronics Manufacturing Services (EMS)
  • Consumer electronics (smartphones, tablets, home appliances)
  • Automotive electronics (PCBs requiring high reliability)
  • Medical device manufacturing (strict cleanliness standards)
  • Aerospace & defense (explosion‑proof environments)
  • SMT contract manufacturers
  • Semiconductor packaging (post‑solder‑printing cleaning)
