Specifications
Place of Origin :
Guangdong, China
Brand Name :
HXT
MOQ :
1
Price :
$23,000-23,500
Voltage :
380 V
Product Name :
PCBA Cleaning Machine
Usage :
PCB Washing Machine
Function :
Automatic
Industry :
PCBA Cleaning Machine
Type :
Electronic components PCBA cleaning Solder Flux
Description
Industrial PCB Contamination Removal Machine Ionic Tester Lead Free Soldering Cleaning System
Multi Stage PCBA Washer Jet Spray Rinsing Drying Visual Inspection High Precision Cleaner
Robotic PCBA Cleaning Machine High Speed Efficient Environmentally Friendly CE ISO Certified
Automatic Offline PCBA Cleaning Machine SME-5600
Industrial PCB Flux Removal Water Based Batch Washer
Product Overview
The SME-5600 is an energy-saving, environmentally protective, integrated high-end cleaning machine that automatically completes cleaning, rinsing, and drying processes in one chamber with simple push-button operation.
Automatic Water-based Industrial PCBA Cleaning Machine for Solder Flux Removal



Key Applications
Ideal for cleaning various PCBA types including Car electronics, Military, Aerospace, Telecom, Medical devices, and Digital meters. Effectively removes Rosin flux, No-clean flux, Water-soluble flux, Solder paste ball, and other organic/inorganic contaminants from SMT and THT PCBA.
Technical Specifications
Parameter Specification
Cleaning basket L610 x W560 x H100(mm) x 2 layers
Liquid tank capacity 60L
Concentrate liquid tank capacity 30L
Temporary tank capacity 18L
Clean time 10~20min (0~99min adjustable)
Rinse time 1~3min/times (0~10min adjustable)
Hot air dry time 15~30min (0~60min adjustable)
Rinse times 3~5times (1~59 times adjustable)
Cleaning liquid temp Room temp~75℃
Rinse DI water temp Room temp~75℃
Hot air dry temp Room temp~99℃
Power/air supply AC380V,50/60HZ,65A /0.5~0.7Mpa,200~400L/Min
Machine size L1300xW1200xH1850(mm)
Machine weight 600KG

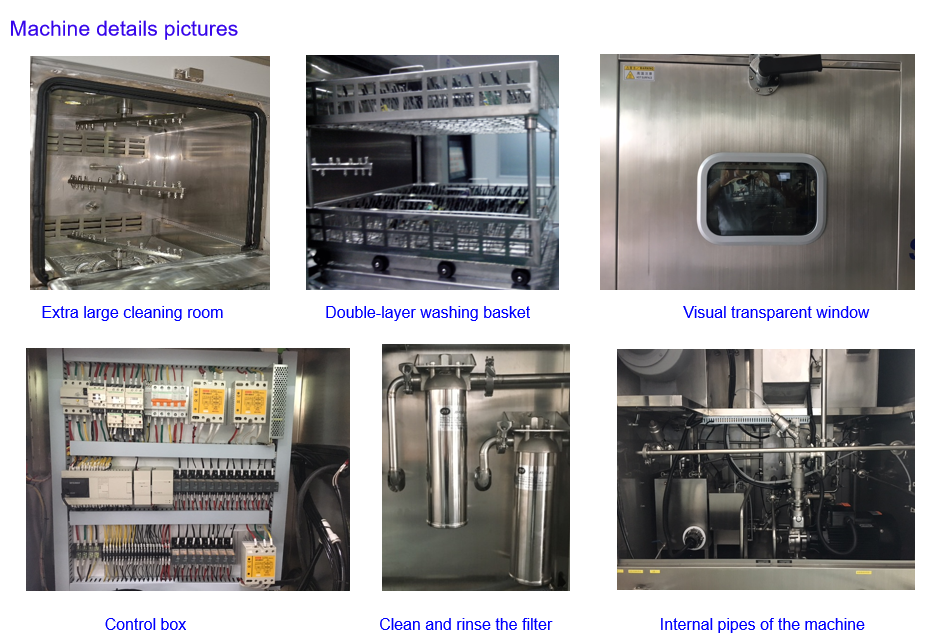

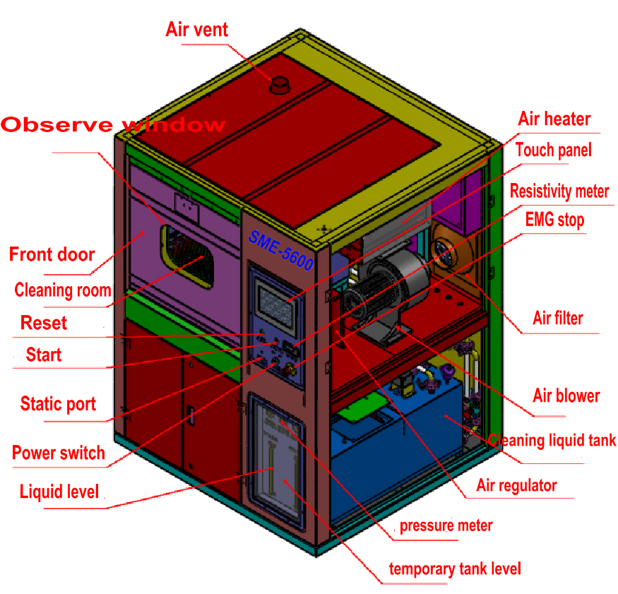

Machine Details
Automatic Water-based Industrial PCBA Cleaning Machine for Solder Flux Removal Automatic Water-based Industrial PCBA Cleaning Machine for Solder Flux Removal

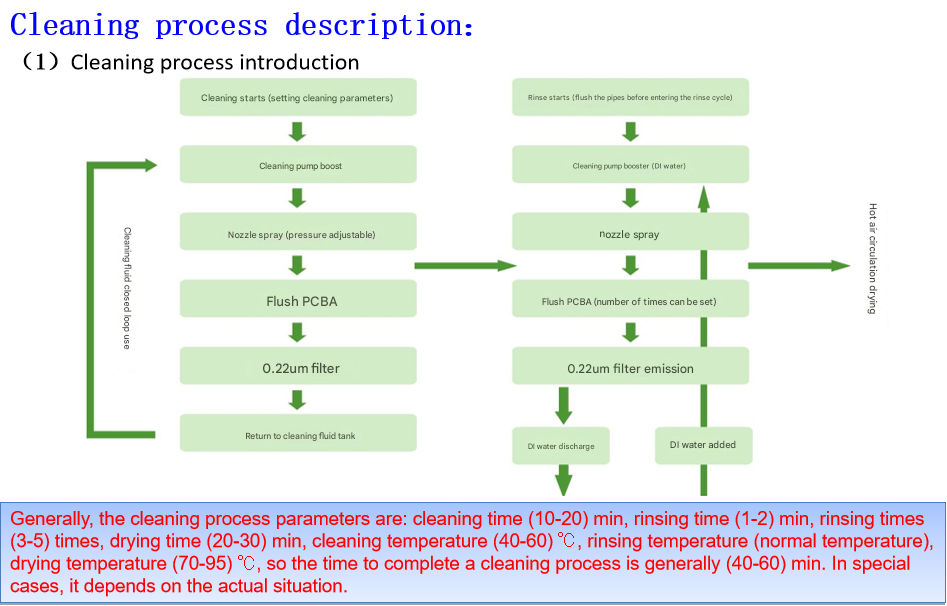

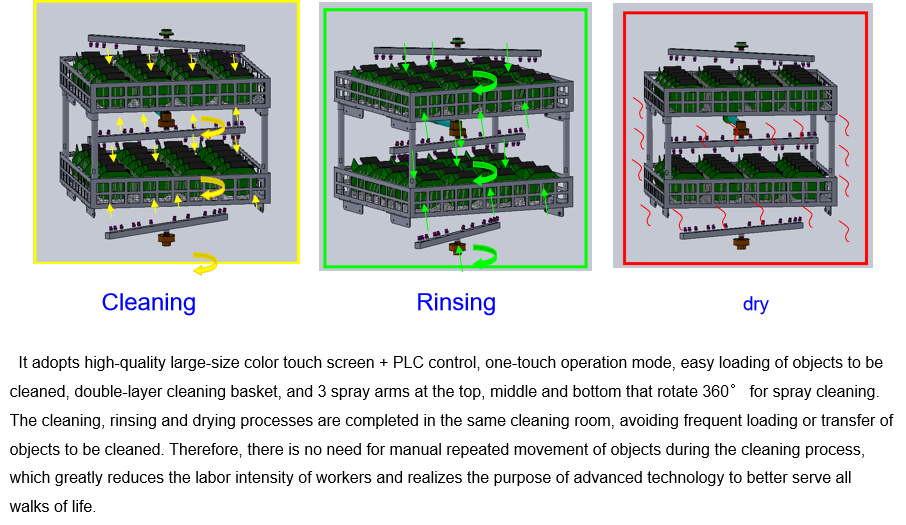

Workflow Process
Automatic Water-based Industrial PCBA Cleaning Machine for Solder Flux Removal Automatic Water-based Industrial PCBA Cleaning Machine for Solder Flux Removal




















Key Features
  • Visible cleaning process through front window with LED lighting
  • Automatic operation: complete clean, rinse, and dry in one compact machine
  • Scientific nozzle design with left/right incremental arrangement for enhanced efficiency
  • Adjustable nozzle pressure to prevent component damage
  • Dilution tank heating system improves cleaning efficiency
  • Comprehensive cleaning system for various flux types and contaminants
  • Flexible dilution addition: manual or automatic ratio setting (5-25%)
  • Temporary tank with auxiliary heating system for efficient liquid management
  • Lower operating costs with built-in filtration and compressed air blow system
  • Concentration liquid compensation function maintains cleaning effectiveness

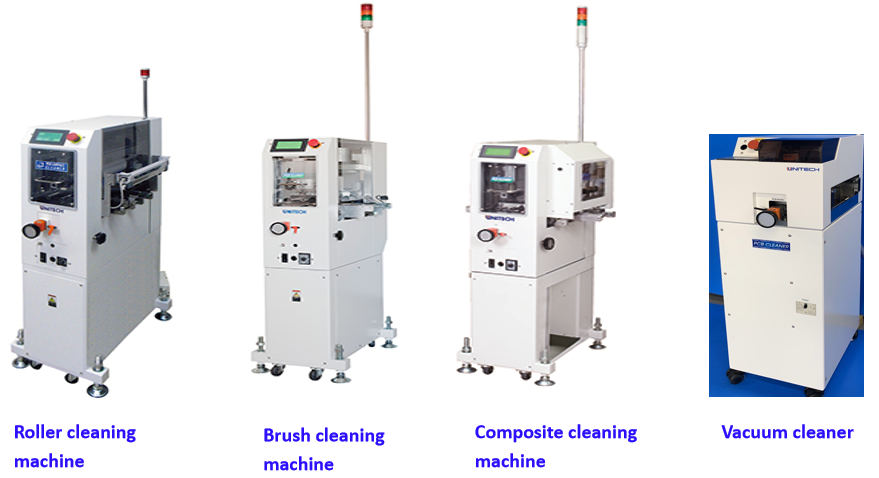

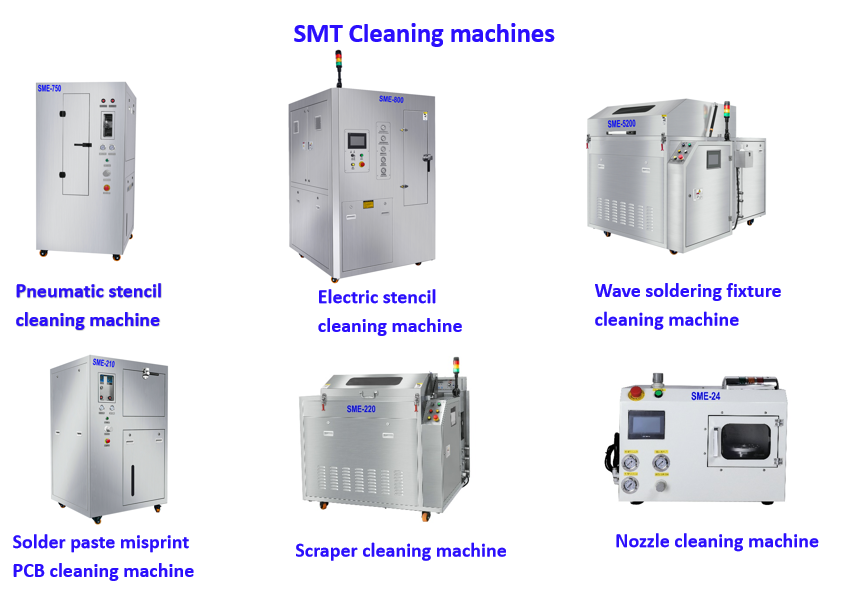

Same Series Products
