Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HXT
MOQ :
1
Price :
CN¥31,358.70
Weight :
60 KG
Voltage :
220 V, 110 V, 380 V, 240 V, 440 V
Frame Dimensions :
700*620*77.5 mm
Frame Travel :
400*400*100 mm
Fixture Dimensions :
250*300 mm
Max Soldering Size :
260*190 mm
Solder Pot Capacity :
5 kg
Solder Pot Dimensions :
265*120*180 mm
Heating Power :
1500 W
Rated Power :
500 W
Operating Voltage :
220 V
Control Method :
Motion control system + computer programming
Programming Method :
Vision scanning and input, computer programming
Flux Spraying :
Precision spraying with line spray valve
Nitrogen Requirement :
99.999%, 1 cubic meter per hour
Description
Product Introduction

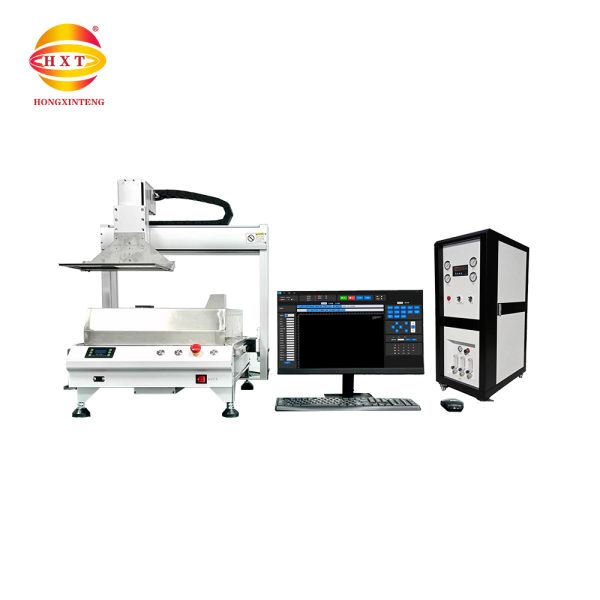

The machine consists of five parts: a frame, a wave soldering furnace, a flux spray valve module, a vision scanning module, and an industrial computer (including a monitor). Unlike other desktop selective wave soldering machines, this machine is controlled and programmed via an industrial computer (with a self-developed system). It utilizes a high-definition camera for vision scanning and input, quickly importing PCB board data into the computer. Programming is achieved quickly using various methods such as point and line inputs. It is easy to learn, simple to operate, and produces faster soldering speeds, more uniform and fuller solder joints, and more consistent quality than manual soldering.
Work video
Product Parameters
Model Number
PCH20
1. Frame Dimensions (L x W x H)
700*620*77.5(mm)
2. Frame Travel
400*400*100(mm)
3. Universal Fixture Dimensions
250*300(mm)
4. Maximum Soldering Size
260*190(mm)
5. Solder Pot Capacity
5kg
6. Solder Pot Dimensions (with Nozzle)
265*120*180(mm)
7. Heating Power
1500W
8. Rated Power
500W
9. Operating Voltage
220V
10. Control Method
Motion control system + computer programming
12. Programming Method
Vision scanning and input, computer programming
13. Flux Spraying
Precision spraying with line spray valve
14. Nitrogen Requirement
Nitrogen content 99.999%, 1 cubic meter per hour
15. Weight
60KG
Product Details
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer

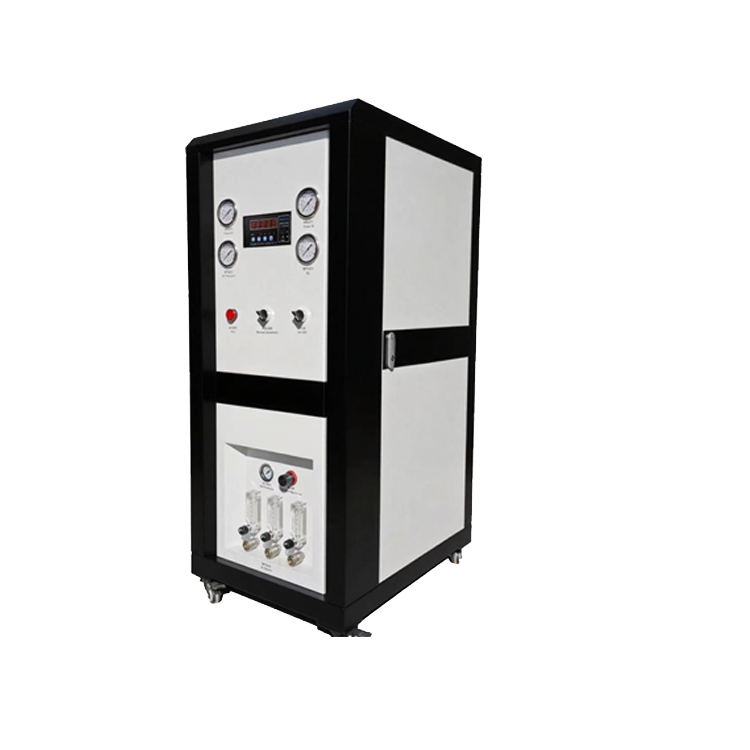

KRZH-Nitrogen Generator (1 to 1)

Stable Performance/Intelligent Operation/Energy Savings/Quality Assurance Easy operation, one-touch start for nitrogen generation, highly intelligent. Equipped with a silicone oil pressure gauge to accurately display the pressure of each gas volume, and a nitrogen outlet equipped with a precision filter. It features a built-in large-capacity tank, dual-tank AB filling of high-quality molecules, and a professional compression device to reduce dusting. An integrated nitrogen generator improves welding quality and aesthetics.
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer

Nitrogen generator specifications

Nitrogen Generator：1-on-1 Specifications Model: YS49-1：Power Supply: AC220V 5OHZ Inlet Pressure: 0.6-0.8 MPa：Power: 20W Nitrogen Pressure: 0.1-0.65 MPa (Adjustable) Laser Gas Capacity: 1 laser welder Maximum Pressure: 0.8 MPa Nitrogen Temperature: ≤10-25°C Minimum Purity: 99.99%：Nitrogen Dew Point: ≤-40°C Rated Purity： 99.995% Operating Environment: -15°C-55°C Maximum Purity： 99.999% Dust Content: ≤0.01PPM System Pressure Differential： ≤0.15 MPa Nitrogen Oil Content： ≤0.002PPM Purity Indicator：Not Included (Standard) / Optional Dimensions：700*450*880mm Nitrogen Output: 1.2 Nm³/h Weight: 75kg Notes: 1. Purity: 99%, Nitrogen Output: 3 Nm³/h: 2. Purity: 99.9%, Nitrogen Output: 2 Nm³/h: 3. Purity: 99.99%, Nitrogen Output: 1.2 Nm³/h: 4. Purity: 99.999%, Nitrogen Output: 1 Nm³/h:

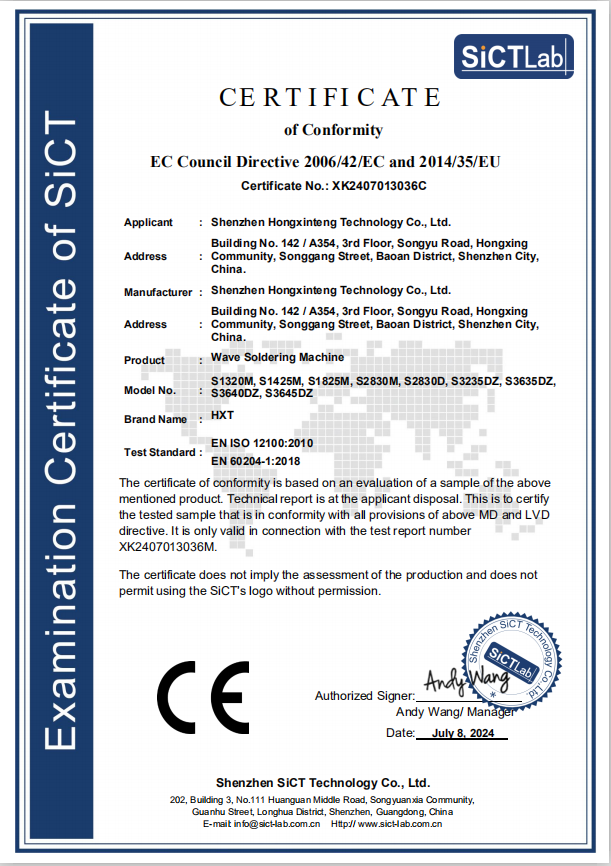

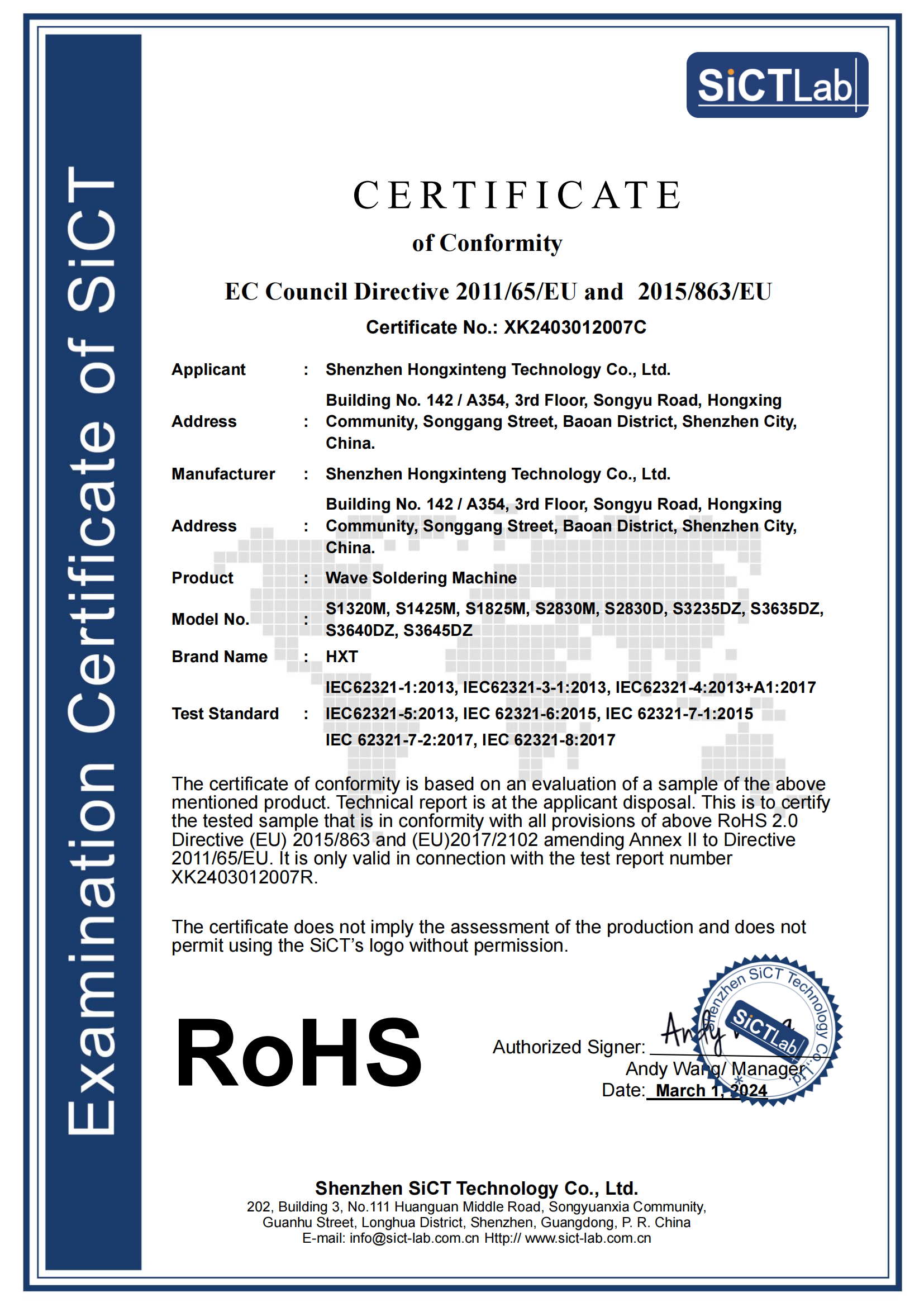

Certificate
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Application
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer

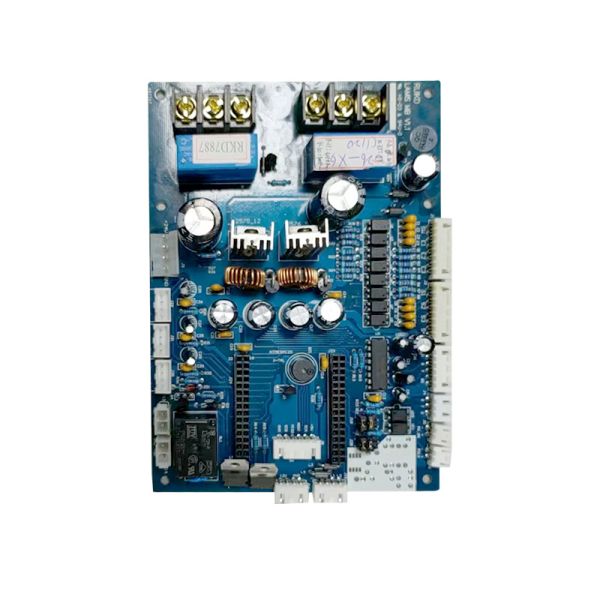

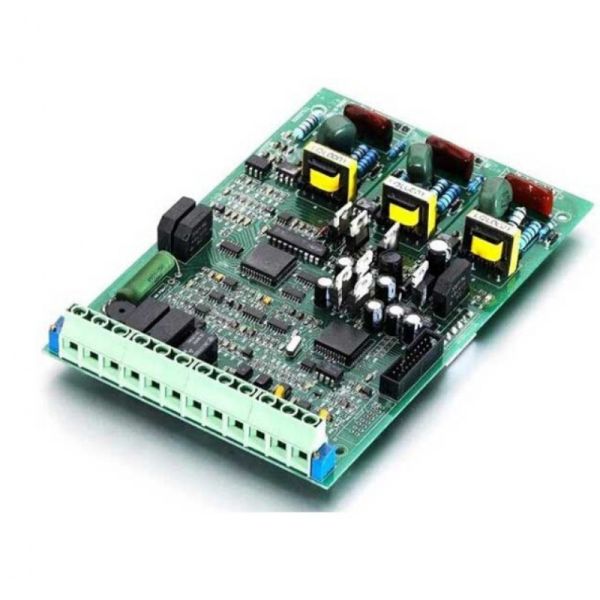

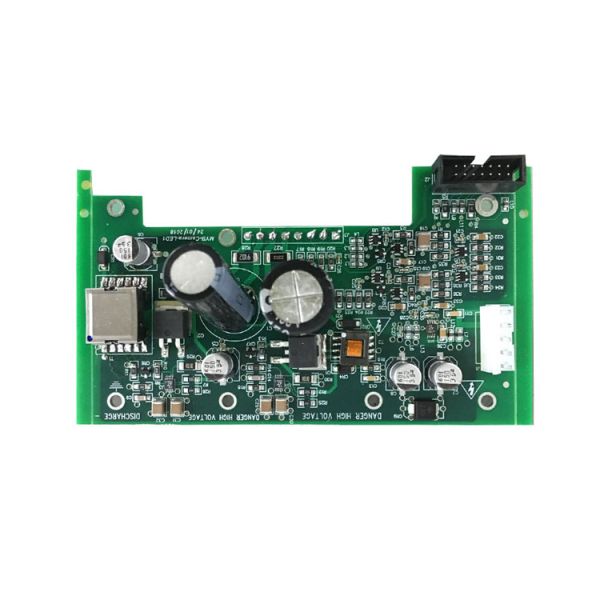

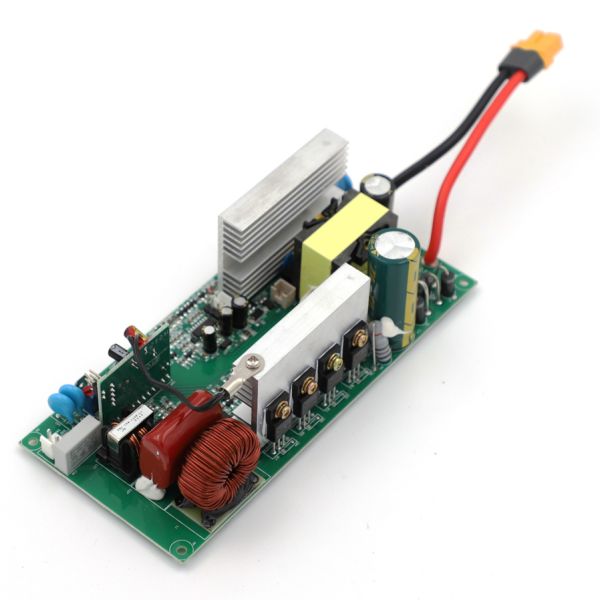

The core value of selective wave soldering lies in its "selectivity" and "precision." It solves the challenges of soldering complex through-hole components requiring high quality and reliability, through-hole soldering on the second side of double-sided mixed-technology PCBs, soldering in areas with shadowing effects, soldering requiring nitrogen protection, and mixed-technology soldering of high-reliability PCBs. It offers irreplaceable advantages in terms of quality, flexibility, and thermal control. Therefore, it is primarily used in high-end electronics manufacturing fields where stringent soldering quality requirements and high product added value are essential.
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
Automatic Selective Soldering Machine with Flux Spray and Vision Scanning for PCB Wave Soldering Controlled by Industrial Computer
