Suction Type Dual Table Single Head Robotic Screwdriver Machine
Suction Type Dual Table Single Head Robotic Screwdriver Machine
Suction Type Dual Table Single Head Robotic Screwdriver Machine
Suction Type Dual Table Single Head Robotic Screwdriver Machine
Specifications
Brand Name :
Winsmart
Model Number :
SMTSD112
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD4000-20000/unit
Payment Terms :
T/T
Supply Ability :
300 units per year
Delivery Time :
20 working days
Packaging Details :
plywood case
Working Stroke :
500x300x300x100mm
Controlsystem :
PLC with Touchscreen Interface
Speed Range :
0-500 Rpm
Material :
Aluminum Alloy Frame
Screw Head :
Any universal type
Productname :
Robotic Screwdriver Machine
Power :
110V or 220V
Color :
Silver
Screw Size :
M1.2-M5
Automationlevel :
Semi-auto
Locking Speed :
1.2-1.8 seconds per screw
Programming Method :
Teach Pendant
Weight :
90 kg
Heads :
1
Torquerange :
0.1 - 20 Nm
Application :
Electronics Assembly, Automotive, Appliances
Condition :
100% New
Axis :
4
Type :
Manual
Description
Suction Type Dual Table Single Head Robotic Screwdriver Machine
Dual Table Single Head Robotic Screwdriver Machine Description:

Automatic screw locking machine is suitable for automobile, machine manufacturing, wireless communication, industrial electrical and other industries


Dual Table Single Head Robotic Screwdriver Machine Features:
  • Dual tables, single screwdriver head, single screw feeder for high productivity.
  • Mainly use the screw automatic feeding system, X Y Z mobile platform, control system and locking system.
  • Strong usage, replace fixtures for different products, the device program stored separately, the corresponding program can be used at any time
  • Good stability, no mis-feeding issue, even if the bad screws cause mis-feeding, non-professionals can operate it in a short time
  • The key parts use high-quality hardware materials through special treatment, the imported original electronic parts to ensure that equipment zero failure.
  • Vacuum type screw feeder for stable running.
Dual Table Single Head Robotic Screwdriver Machine Specifications:
Model SMTSD112
Power Supply 110/220VAC 60HZ
Air Pressure 0.3-0.6Mpa
Power Rate 1000W
Screw Spec M1-M6
Locking Speed 1.2s-1.8s/screw
Positioning Precision ±0.02mm
Working Area 250x200x100mm
Stroke X: 500mm, Y: 500mm, Z: 100mm
Moving Speed X: 800mm/s, Y: 600mm/s, Z: 800mm/s
Machine Dimension 760*860*800mm
Communication Port USB
Machine Weight 100kgs
Dual Table Single Head Robotic Screwdriver Machine Suitable Screws:

It is suitable for cross screw, torx, inner hexagon screw, outer hexagon screw, slotted screw, triangular screw, etc.

Suction Type Dual Table Single Head Robotic Screwdriver Machine

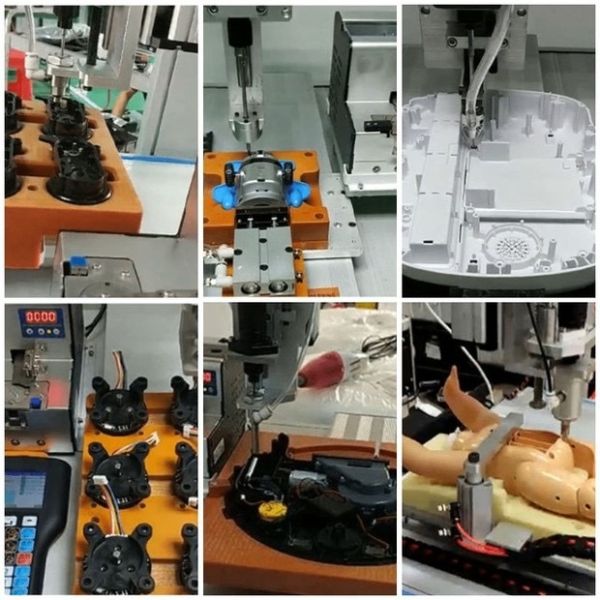

Dual Table Single Head Robotic Screwdriver Machine Applications:

It is suitable for home appliances, automotive electronics, instrumentation, toys, power supply, mobile phones, LED lighting industry, Tablet PC, computer keyboard etc.

Industry Application
Consumer Electronics Assembly of smartphones, tablets, laptops, and wearables.
Automotive Fastening parts in dashboards, ECUs, sensors, and lighting systems.
Home Appliances Assembling washing machines, microwaves, air conditioners.
Computers & Servers Screwdriving in power supplies, cases, and motherboard installations.
Medical Devices High-precision assembly of diagnostic tools, monitors, and enclosures.
Industrial Equipment Assembly of control panels, actuators, and mechanical housings.
Packaging & Logistics Screwing enclosures or mounts in automation systems.

Suction Type Dual Table Single Head Robotic Screwdriver Machine
