6 Axis Robotic Screwdriver Machine Double XYZ Screwdriver Machine
6 Axis Robotic Screwdriver Machine Double XYZ Screwdriver Machine
6 Axis Robotic Screwdriver Machine Double XYZ Screwdriver Machine
6 Axis Robotic Screwdriver Machine Double XYZ Screwdriver Machine
Specifications
Brand Name :
Winsmart
Model Number :
SMTSD229
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD5000-20000/unit
Payment Terms :
T/T
Supply Ability :
300 units per year
Delivery Time :
20 working days
Packaging Details :
plywood case
Working Stroke :
500x300x300x100mm
Controlsystem :
PLC with Touchscreen Interface
Speed Range :
0-500 Rpm
Material :
Aluminum Alloy Frame
Screw Head :
Any universal type
Productname :
Robotic Screwdriver Machine
Power :
110V or 220V
Color :
Silver
Screw Size :
M1.2-M5
Automationlevel :
Semi-auto
Description
6 Axis Robotic Screwdriver Machine Double XYZ Screwdriver Machine
6 Axis Robotic Screwdriver Machine Description:

A 6-Axis Robotic Screwdriver Machine is an advanced automation system that integrates a 6-degree-of-freedom robotic arm with a high-precision electric or pneumatic screwdriver. It is designed to automatically pick, align, and fasten screws into products or assemblies with speed, consistency, and repeatable accuracy.

6 Axis Robotic Screwdriver Machine Double XYZ Screwdriver Machine

6 Axis Robotic Screwdriver Machine Features:
  • 6 Axes, suitable for 2 different screws locking at the same time.
  • Solid frame to ensure stable and precise locking.
  • Adjustable height for feeder and Z axis to support different height products.
  • High speed motion card and touch screen for real time production.
  • Intelligent detection of missing locks and slip teeth.
  • Suitable for M1-M6 screws.
  • Supports flat holes, deep holes, oblique holes, and different flat holes.
  • Screw type: cross screw, torx, inner hexagon screw, outer hexagon screw, slotted screw, triangular screw, etc.
6 Axis Robotic Screwdriver Machine Specifications:
Model SMTSD229
Power Supply 110VAC 60HZ
Air Pressure 0.3-0.6Mpa
Power Rate 1000W
Screw Spec M1-M6
Locking Speed 1-1.6 second/screw
Positioning Precision ±0.02mm
Working Area 250x200x100mm
Stroke X: 500mm, Y: 500mm, Z: 100mm
Moving Speed X: 800mm/s, Y: 600mm/s, Z: 800mm/s
Machine Dimension 695x1030x750mm
Communication Port USB
Machine Weight 150kgs

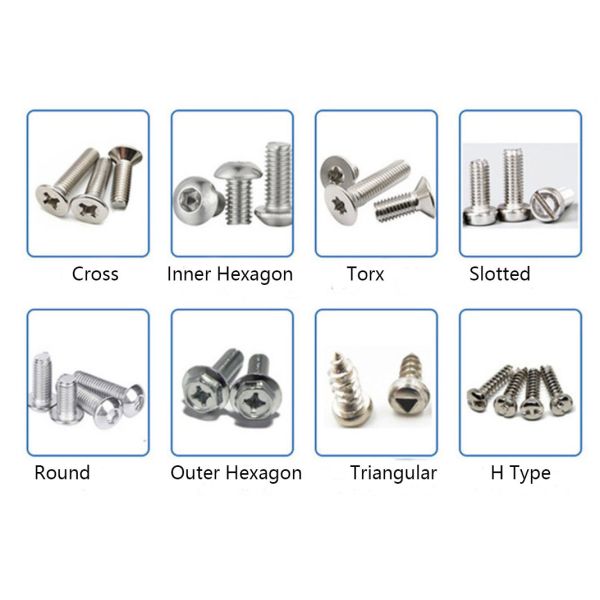

6 Axis Robotic Screwdriver Machine Suitable Screws:

It is suitable for cross screw, torx, inner hexagon screw, outer hexagon screw, slotted screw, triangular screw, etc.

6 Axis Robotic Screwdriver Machine Double XYZ Screwdriver Machine

6 Axis Robotic Screwdriver Machine Applications:

It is suitable for screw locking of various electronic products, such as mobile phones, navigators, calculators, keyboards, tablet computers, LCD TVs, air ducts, LEDs, induction cookers, communications and other industries.

Industry Application
Consumer Electronics Assembly of smartphones, tablets, laptops, and wearables.
Automotive Fastening parts in dashboards, ECUs, sensors, and lighting systems.
Home Appliances Assembling washing machines, microwaves, air conditioners.
Computers & Servers Screwdriving in power supplies, cases, and motherboard installations.
Medical Devices High-precision assembly of diagnostic tools, monitors, and enclosures.
Industrial Equipment Assembly of control panels, actuators, and mechanical housings.
Packaging & Logistics Screwing enclosures or mounts in automation systems.
