1200mm Long LED Strip Aluminum PCB Separator PCB Cutting Machine
1200mm Long LED Strip Aluminum PCB Separator PCB Cutting Machine
1200mm Long LED Strip Aluminum PCB Separator PCB Cutting Machine
1200mm Long LED Strip Aluminum PCB Separator PCB Cutting Machine
1200mm Long LED Strip Aluminum PCB Separator PCB Cutting Machine
1200mm Long LED Strip Aluminum PCB Separator PCB Cutting Machine
Specifications
Brand Name :
Winsmart
Model Number :
SMTD3
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD1000-3000/unit
Payment Terms :
T/T
Supply Ability :
500 units per year
Delivery Time :
1-3 working days
Packaging Details :
plywood case
Separate Thickness :
0.6-3.5mm
Inspection Video :
Provided
Pcb Material :
FR1, FR4, CEM1, CEM3, MCPCB
Warranty :
12 months
Blade Diameter :
60mm
Controlsystem :
Digital control panel with LCD display
Application :
Tab boards
Color :
Blue
Driven Mode :
Motor
Advantage :
Low stress
Pcb Depaneler Certificate :
CE
Ce Approval :
Yes
Separation Speed :
Adjustable speed
Name :
LED PCB Separator
Description
1200mm Long LED Strip Aluminum PCB Separator PCB Cutting Machine
LED Strip PCB Separator Description:

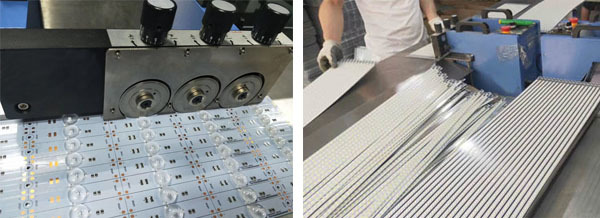

It uses 3 upper blades and 3 lower blades to separate with very low cutting stress to avoid bending issue.

Be dedicated to the separating of aluminum based light bar, high efficiency, long life, without deformation and burrs, greatly saving labor and improving company benefits.

LED Strip PCB Separator Features:
  • Easy operation, high cutting speed. First blade set separate 40% of board, second blade set separate 40% of board, third blade set separate the rest 20% to finish depaneling.
  • 3 blade set share cutting stress as a straight line, to make sure lower stress to avoid bending issue.
  • Very good positioning for smooth cutting even if light v-scoring.
  • Blade is made of imported high speed steel which is durable, life time is 6-36 months.
  • Cutting speed is adjustable according to different application.
  • Precision scale for upper blades adjustment, blades are re-sharpened.
LED Strip PCB Separator Specifications
Model SMTD3
Machine dimension 400x400x330mm
Platform dimension 2400x300x200mm
Max cutting length No limit
PCB material FR4, MCPCB, Copper boards
Cutting speed V0-500mm/s
Power 220V or 110V
Machine weight 45kgs
Wooden case dimension 116x67x58cm
Gross weight 76kgs
LED Strip PCB Separator Applications:

It is widely used in LED industry, applicable for LED aluminum board,copper board,luminous tube,light bar,display board,etc.

1200mm Long LED Strip Aluminum PCB Separator PCB Cutting Machine

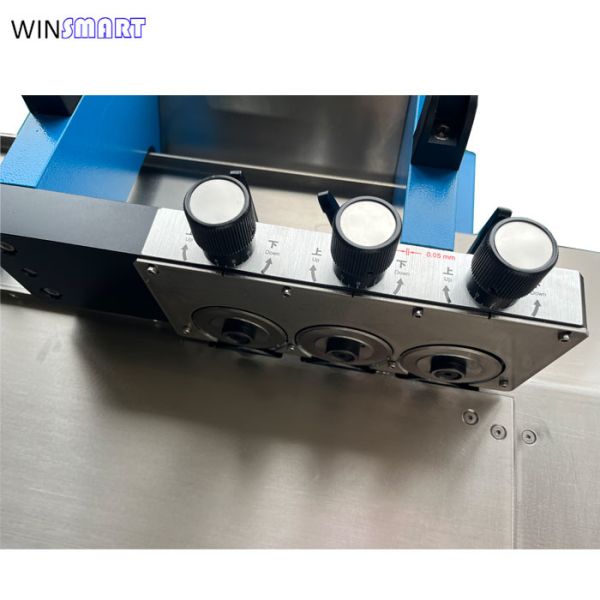

LED Strip PCB Separator Blade Adjustment:
  1. If the separated board is twisted, means that the three groups of knives are overcut, then we need to adjust the third upper knife, and raise the knife a little bit, so that the board can be cut without deformation.
  2. If the separated board is bent, we need to adjust the two blocks on the right. If the board is concave bent, it means that the force of the block to the board edge is small. In this way, the block is closer to the board edge. If the convex bending occurs, it means that the force of the block to the board edge is large, then move the block out a little.
  3. If the board is not cut off at one time, then we need to adjust the third upper knife down a little to make smaller blade clearance.
