Optional Single/Dual Table PCB Depaneling Router Machine for Max 460x410mm Boards
Optional Single/Dual Table PCB Depaneling Router Machine for Max 460x410mm Boards
Optional Single/Dual Table PCB Depaneling Router Machine for Max 460x410mm Boards
Optional Single/Dual Table PCB Depaneling Router Machine for Max 460x410mm Boards
Specifications
Brand Name :
Winsmart
Model Number :
SMTR17
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
USD20000-30000/unit
Payment Terms :
T/T
Supply Ability :
500 units per year
Delivery Time :
14-20 working days
Packaging Details :
plywood case
Change Cutter :
Manual
Vacuum :
Yes
Spindle Quantity :
1
Max Pcb :
460x410mm(Single table)
Coolingsystem :
Air
Routing Bit :
Dia 0.8-3.0mm
Separating Speed :
1-100mm/s
Cutting Width :
2-6mm
Condition :
New
Feeding :
Manual
Weight :
330 kg
Description
Optional Single/Dual Table PCB Depaneling Router Machine for Max 460x410mm Boards
Single/Dual Table PCB Depaneling Router Introduction:

A PCB router machine is very important for factories and enterprises. It can not only help enterprises stabilize their own development, but also solve the difficulties encountered by customers in the process of board division.

Single/Dual Table PCB Depaneling Router Features:
  • Optional single/dual platform
  • PC and CCD vision system
  • Programming with compensation and dust collection
  • Available for max 460mm boards ※ Flexible for different type of products
  • Open type platform for LD/ULD and auto upgrade with robot
Single/Dual Table PCB Depaneling Router Specifications:

Model Number

SMTR17

Machine Size

850(L) x 750(W) x 1455(H)mm

Voltage

380V/50Hz, 2.5KW

Max PCB Size

410x460mm (single table), 260x310mm(dual table)

PCB Thickness

0.4-6mm

Feeding Mode

Manual

PCB Positioning

Customized fixture

Programming

Vision teaching, inline programming

Cutting Spindle

SycoTec 60000rpm/min(standard)

Cooling Type

Self cooling

Dust Collection Mode

Bottom collection

Cutting Speed

1-100mm/s

Cutting Accuracy

±0.01mm

Routing Bit

0.8-3.0 Diameter, right rotation

Repeat Accuracy

±0.02mm

Control System

Industrial PC

Spindle

Germany SycoTec 4015HY

Motion Control

4 axis motion control board

Lead screw

C5 grinding screw lead

Camera

Germany imaging 40W greay camera

LCD

17 inch
Single/Dual Table PCB Depaneling Router Applications:

It is widely used in Medical Electronics, LED Lighting Boards, Automotive Electronics, Consumer Electronics and home household appliances, etc. Taking this automatic PCB depaneling router machine as the overall depaneling production transformation scheme of automotive manufacturing workshop can realize rapid and efficient production in the workshop, greatly reduce the dependence of enterprises on labor force, replace manual breaking with automatic segmentation, and realize double-sided cutting for components with complex structure, greatly improve product quality and improve enterprise production capacity and competitiveness.

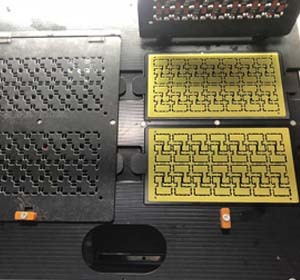

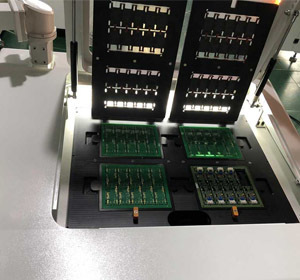

Optional Single/Dual Table PCB Depaneling Router Machine for Max 460x410mm Boards Optional Single/Dual Table PCB Depaneling Router Machine for Max 460x410mm Boards

Single/Dual Table PCB Depaneling Characteristics:
  1. Improve product quality and reduce scrap rate.
  2. It is equipped with high pixel color CCD magnifying glass, auxiliary program teaching and editing functions, with higher accuracy, and the simulation can be modified in one step. Industrial LCD has clear image and large viewing angle.
  3. Equipped with handheld teaching pendant. Program editing can be done manually or imported using G code. It has the functions of importing, exporting, copying board array, editing and modifying, so as to simplify the time and accuracy of program making.
  4. Fully closed, transparent safety door, safe operation and easy observation.
  5. Equipped with powerful dust collection filter and dust collector. The up-down suction method is optional and can solve the chip problem cleanly.
