Dual Table Dual Spindle Inline PCB Depaneling Router with Tray Destacker and Stacker
Inline PCB Depaneling Router Introduction:

It is widely used in electronic product manufacturing industry. Because the traditional manual folding method will produce strong stress, which has a serious impact on the product quality, so the manual folding has been basically replaced by the machine cutting. This inline router system, with loader and unloader for ATE test line, high speed spindle, low stress to separate PCBA and ensure prevision and cleanliness, high volume production helper.

Inline PCB Depaneling Router Features:
  • Cutting path full closed loop, real-time error tracking, feedback, compensation.
  • Using imported split PLC, breaking the traditional computer-based board PLC control card, higher stability and stronger anti-interference.
  • Dual spindles cutting 2 boards at the same time.
  • Automatically identify barcodes and retrieve cutting programs.
  • Has tool detection function and auto change function.
  • Support different program for 2 working tables.
  • Reserve MES port and robot port.
  • Overall path optimization function.
Inline PCB Depaneling Router Specifications:
Model Number SMTIR500
Machine Size Approx 2250(L)x1300(W)x1750(H)mm
Machine Weight Approx 800kgs
Max PCB Size 300x450mm (customized), Dual tables
PCB Thickness 0.4-6mm
Transmission Height 900±50mm
Transmission Direction Left -> Right or Right -> Left
Transportation Speed 1500mm/s
Feeding Mode Section type transportation guide rail
Rail Width Adjustment Auto
Communication Signal SMEMA
PCB Positioning Fixtures positioning
Picking System Vacuum, 40-60 nozzles
Cutting Spindle 100000rpm/min
Cooling Type Self cooling
Automatic Tool Change Yes
Break Knife Checking Yes
Cutting Accuracy ±0.05mm
Routing Bit 0.8-3.0 Diameter
Repeat Accuracy ±0.01mm
Coordinate Moving Speed 1000mm/s
Unloading Mode ESD Belt
Tool Detection Yes
Procedure Programming Gerber Drawing Import/Editing Program by Visual
Air Supply 5-8kgs/cm2
Power Supply AC 380V, 50/60Hz, 3KW

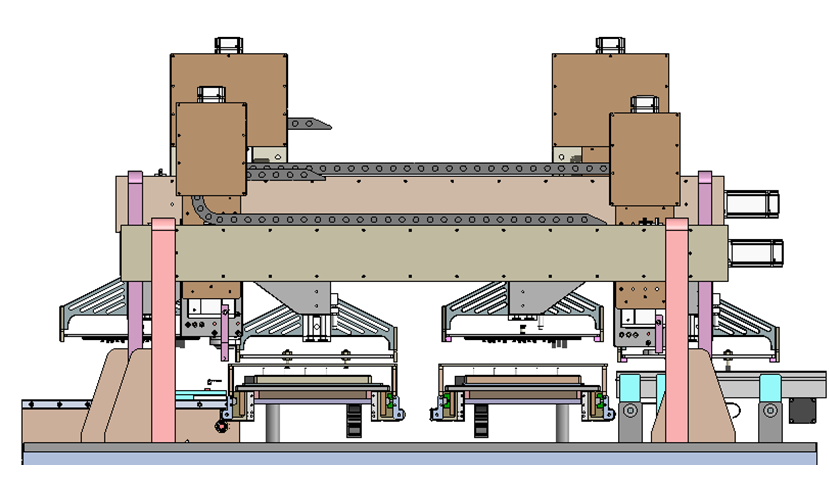

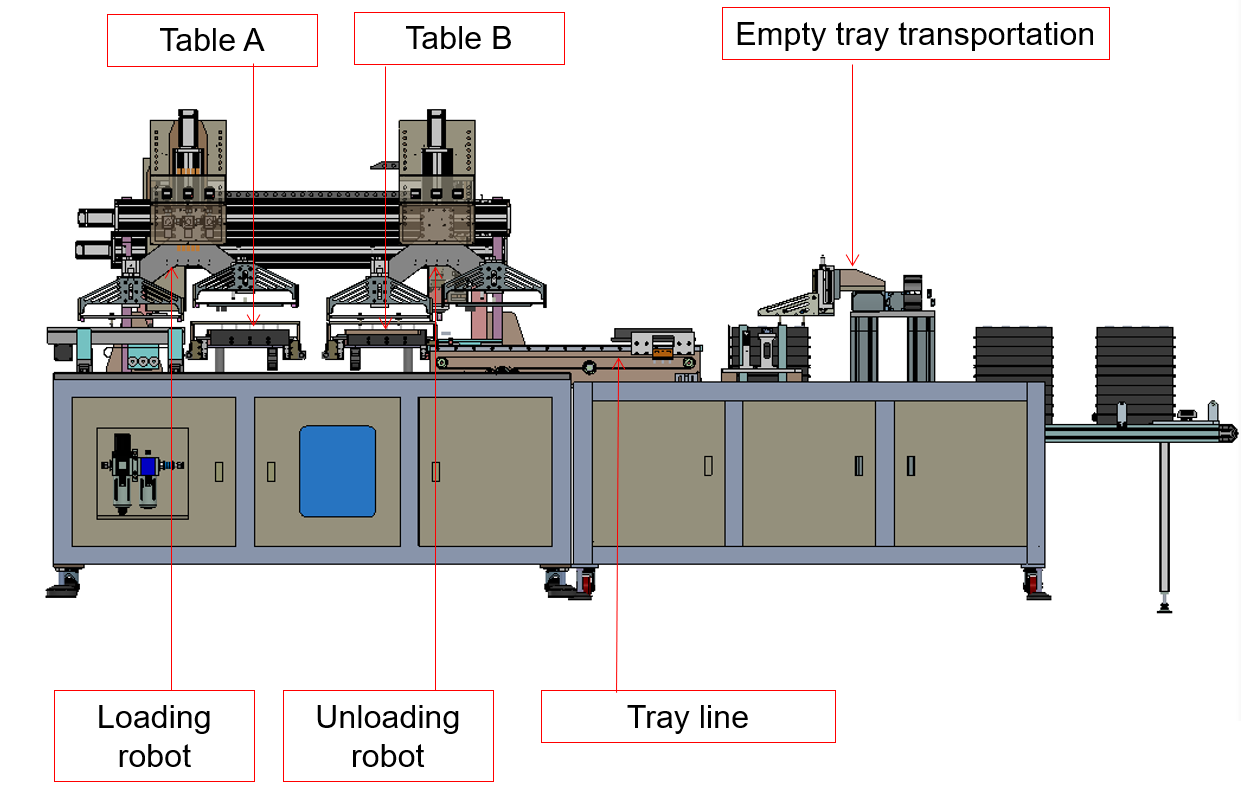

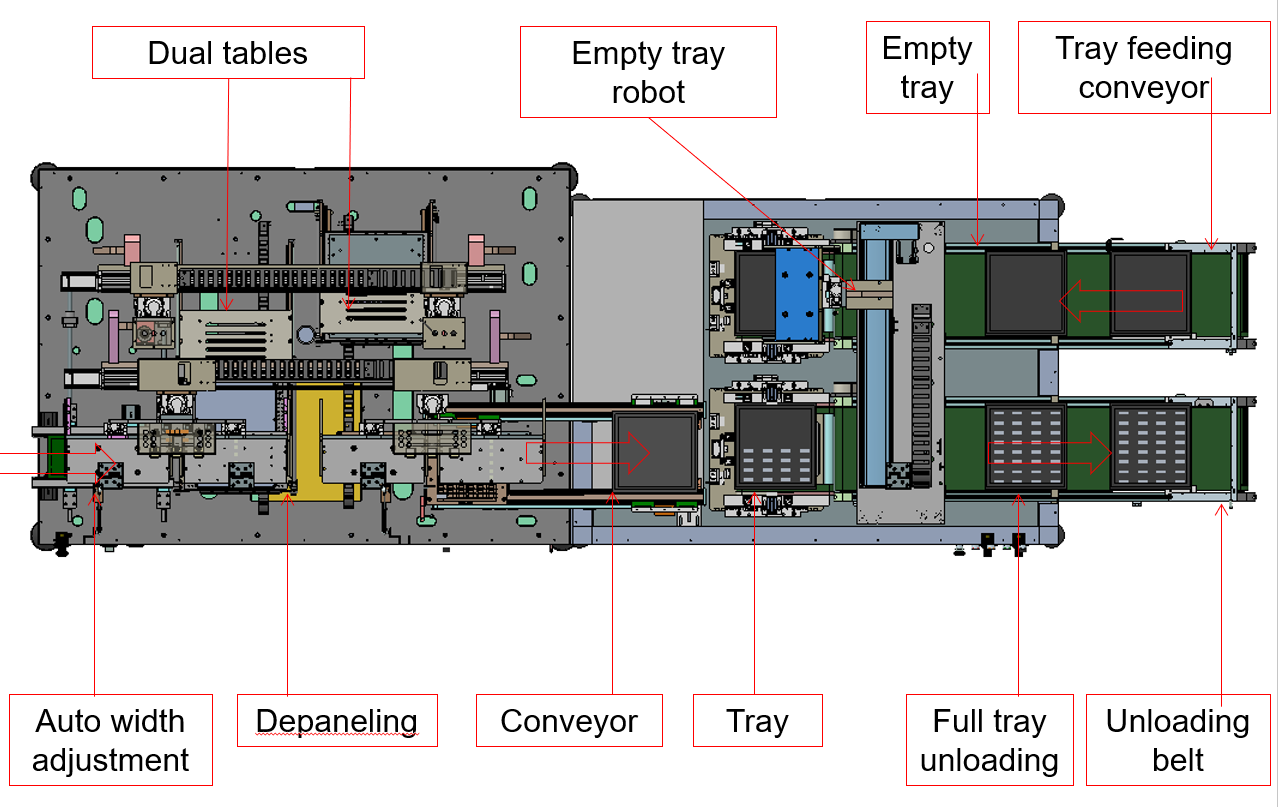

Inline PCB Depaneling Router Structure:

Dual Table Dual Spindle Inline PCB Depaneling Router with Tray Destacker and Stacker
