Single Port Modular Magnetic RJ45 Jack / Female Magnetic Ethernet Jack
Single Port Modular Magnetic RJ45 Jack / Female Magnetic Ethernet Jack
Specifications
Brand Name :
Shareway
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Reel
Product name :
Single port modular jack RJ45 female magnetic connector
Size :
25.3*16.2*13.5
Turns ratio :
1 : 1
Inductance :
350uH MIN
Base material :
Ferrit/ ferrite
Shield :
over 0.01" cooper alloy
Description

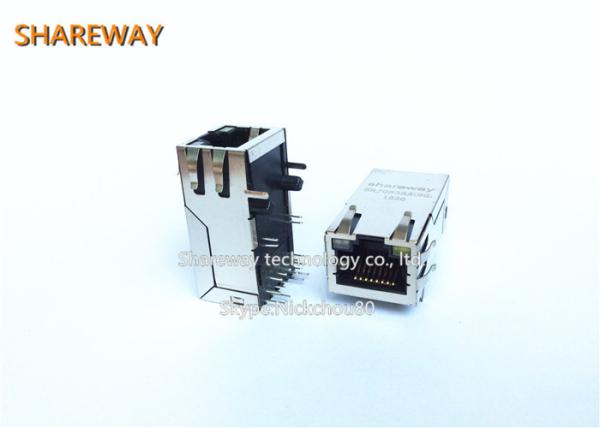

Single port modular jack RJ45 female magnetic connector

C Elektrische Eigenschaften / electrical properties :

properties test conditions value unit tol.
Inductance 100kHz / 100mV @ 8mA
DC-Bias		 OCL 350 μH min.
Turns ratio 100kHz / 100mV TR 1 : 1 Tx 3%
Turns ratio 100kHz / 100mV TR 1 : 1 Rx 3%
Insertion Loss 1-100MHz IL -1,0 dB max.
Return Loss 1-10MHz @ 100Ω RL -18 dB min.
Return Loss 10-30MHz @ 100Ω RL -16,0 dB min.
Return Loss 30-60MHz @ 100Ω RL -13,5 dB min.
Return Loss 60-80MHz @ 100Ω RL -12 dB min.
Common Mode
Rejection		 1-100MHz CCMR -30 dB min.
Crosstalk 1-100MHz CT -30 dB min.

base material: Ferrit/ ferrite

wire : 4UEW 155°C

contact plating : 100% tin w. nickel underpalting 30μ"gold plating on contact area

housing : Thermoplastic UL-94V0

LED : 1,8-2,8 V/ 20mA

Shield : 50μ" nickel over 0.01" cooper alloy

operating temperature : -40°C - + 85°C

Hipot test : 1500Vrms 1min
