JD0-0002NL Magnetic RJ45 Jack , Female To Female POE Magnetic Modular Jack For Switches
JD0-0002NL Magnetic RJ45 Jack , Female To Female POE Magnetic Modular Jack For Switches
Specifications
Brand Name :
Shareway
Model Number :
JD0-0002NL
Certification :
CE UL RoHS ISO9001:2008
Place of Origin :
Guangdong China
MOQ :
100/500/1000
Price :
Supportive
Payment Terms :
TT,Paypal
Supply Ability :
3000K.PCS/Month
Delivery Time :
Stock or 3 weeks
Packaging Details :
Reel
Product name :
JD0-0002NL female to female POE Magnetic Modular Jack For switches
Gender :
female
Inductance :
350uH min
Color :
Silver
Gold Plating :
1.5u-50u
Operating temperature :
-40℃ TO +70℃
Description

JD0-0002NL female to female POE Magnetic Modular Jack For switches

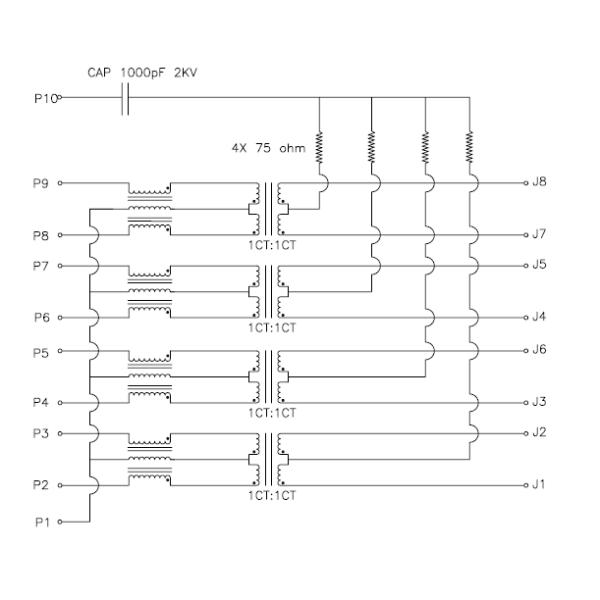

Electronical Specifications:

  1. Turn Ratio @100KHz: (P2-P3):(J1-J2) = 1:1± 5% (P4-P5):(J3-J6) = 1:1± 5% (P6-P7):(J4-J5) = 1:1± 5% (P8-P9):(J7-J8) = 1:1± 5%
  2. Primary Inductance: 350uH MIN @100KHz, 0.1V 8mA DC BIAS
  3. DC Resistance: 1.2 OHMS MAX
  4. Insertion Loss: 1-125MHz -1.0dB TYP
  5. Return Loss: 1-40MHz -16dB MIN 40-60MHz -12dB MIN 60-80MHz -10dB MIN 80-100MHz -8dB MIN
  6. Cross Talk: 1-100MHz -30dB MIN
  7. Common to common mode attrnuation : 1-100MHz -30dB MIN
  8. Isolatioon : PHY Side to Line Side : 2250VDC

LED Specifications:

Standardled Wavelength Forward current Forward V(MAX) TYP
Green 565nm 20mA 2.4V 2.2V
Yellow 590nm 20mA 2.5V 2.1V

JD0-0002NL female to female POE Magnetic Modular Jack For switches

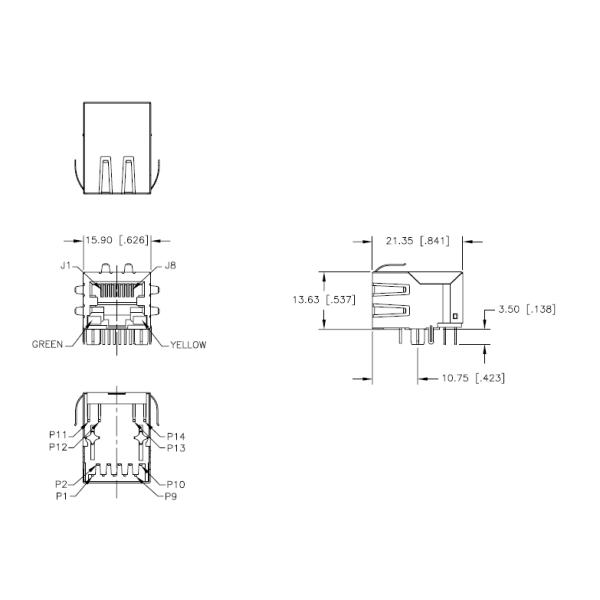

Shape and Dimensions:

JD0-0002NL Magnetic RJ45 Jack , Female To Female POE Magnetic Modular Jack For Switches

JD0-0002NL Magnetic RJ45 Jack , Female To Female POE Magnetic Modular Jack For Switches
