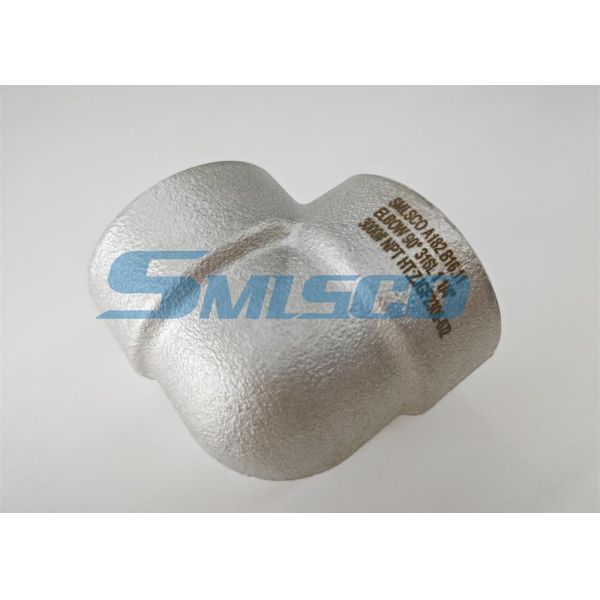

ASTM A182 B16.11 316L ELBOW 90D Forged Fitting For Chemical Industry
ASTM A182 B16.11 316L ELBOW 90D Forged Fitting For Chemical Industry
Specifications
Brand Name :
SMLSCO
Certification :
ISO 9001 & PED
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
MOQ :
1pc
Price :
Above 2usd/kg
Supply Ability :
100 ton/month
Delivery Time :
3 weeks/container
Packaging Details :
Plywood case/pallet
Standard :
A182 B16.11, MSS-SP
Materials :
Austenitic,Duplex Steel ,Nickel Alloy
Surface :
Pickling / Blasting /Tumbling
Process Method :
Forged
Applications :
Connection
Description

ASTM A182 B16.11 316L ELBOW 90D Forged Fitting For Chemical Industry

Stainless Steel Elbow:

In the piping system, the elbow is a tube that changes the direction of thpipeline. According to the angle, there are three most commonly used 45° and 90°,180°, and other abnormal angle elbows such as 60° according to engineering needs.

Outer Diameter
13.7-114.3mm DN8-DN100 1/4''-4''
Standard
A182 B16.11, MSS-SP
Materials
Austenitic,Duplex Steel ,Nickel Alloy
Surface
Pickling / blasting / tumbling
Process Method
Forged
Type
Socket-welded, Threaded, Butt-welding
Certification
ISO 9001 & PED
Delivery Time
two weeks
Applications
connection
Package
Plywood Case
Main Market
Europe,Middle East,Southeast Asia,SouthAmerica.Etc

ASTM A182 B16.11 316L ELBOW 90D Forged Fitting For Chemical Industry

Chemical Composition:

Elements
304L(wt%) / F304L / S30403
304(wt%) / F340 / S30400
316L (wt%) /
F316L / S31603
316(wt%) / F316 / S31600
310 (wt%) / F310 / S31000
(C) Carbon, max
0.03
0.08
0.03
0.08
0.08
(Mn) Manganese, max
2
2
2
2
2
(P) Phosphorus, max
0.045
0.045
0.045
0.045
0.045
(S) Sulfur, max
0.03
0.03
0.03
0.03
0.03
(Si) Silicon, max
1
1
1
1
1
(Ni) Nickel
8.0 - 13.0
8.0 - 11.0
10.0 - 15.0
10.0 - 14.0
19.0 - 22.0
(Cr) Chromium
18.0 - 20.0
18.0 - 20.0
16.0 - 18.0
16.0 - 18.0
24.0 - 26.0
(Mo) Molybdenum
N/A
N/A
2.0 - 3.0
2.0 - 3.0
N/A
(Fe) Iron
N/A
N/A
N/A
N/A
N/A
(Cu) Copper
N/A
N/A
N/A
N/A
N/A
(N) Nitrogen
N/A
N/A
N/A
N/A
N/A

Application:

oil & gas industry, chemical industry, electric power,boilerand heat exchanger,machinery,metallurgy,sanitary construction etc.

Advantages:

1. Excellent corrosion resistance: ideal for challenging environments such as chemical processing, marine applications and seawater treatment.

2. Excellent high temperature performance: maintains structural integrity in high temperature environments, making it suitable for demanding applications in the refining, petrochemical and power industries.

3. Outstanding oxidation resistance: Provides reliable protection against oxidation and corrosion, making it suitable for high temperature heating equipment and gas pipelines.
