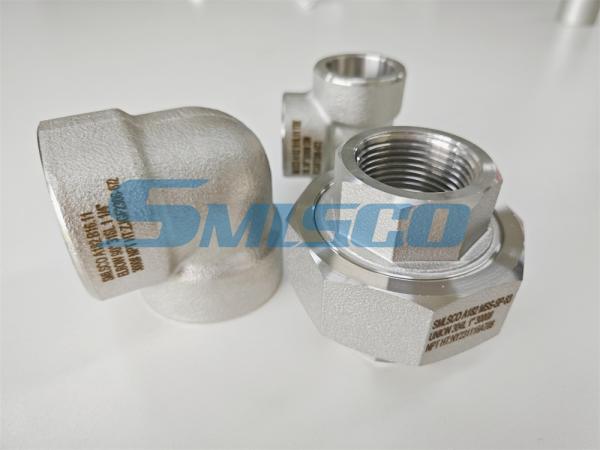

ASTM A182 F316L Socket Weld Elbow Class 3000 Forged Fitting
ASTM A182 F316L Socket Weld Elbow Class 3000 Forged Fitting
Specifications
Brand Name :
SMLSCO
Certification :
ISO PED
MOQ :
1pc
Price :
Above 2usd/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100 ton/month
Delivery Time :
3 weeks/container
Packaging Details :
Plywood case
Material :
F316L
Certificates :
ISO,PED
Brand :
SMLSCO
Price Term :
FOB/CFR/CIF，etc
Payment :
T/T, L/C or as negotiation
Package :
Wooden Box
Description
ASTM A182 F316L Socket Weld Elbow Class 3000 Forged Fitting

SMLSCO Forged Fitting Manufacturing Process
The excellent strength of SMLSCO pipe fittings comes from rigorous forging processes. We use standard round bars as raw materials, which are cut, heated, and then forged as a whole on a forging press. This process greatly refines the internal grain structure of the metal and eliminates potential metallurgical defects. Subsequently, the forged blank undergoes heat treatment and precision CNC machining to form precise socket dimensions and groove angles, ensuring full compliance with the dimensional tolerance requirements of ASME B16.11.


Product Name: Forged Socket Weld Elbow
Material: Stainless Steel F316L / A182 F316L
Standard: ASME B16.11 / ASTM A182
Fitting Type: Socket Weld (SW)
Pressure Rating: Class 3000
Process: Forged and Machined
Application: High-Pressure Piping, Process Skids, Power Generation
Size: ≤80"


What are the Types of Forged Elbow?
Forged elbows are key fittings used to change the direction of fluid in high-pressure piping systems. They are mainly classified based on angle and bending radius. The most common angles are 90 ° (for right angle turns) and 45 ° (for gentle turns). In addition, according to different bending radii, it is also divided into long radius (LR), which has lower fluid resistance; And short radius (SR), suitable for situations with compact installation space. SMLSCO can provide various types of forged elbows according to customers' specific pipeline layout requirements.


ASTM A182 F316L Socket Weld Elbow Class 3000 Forged Fitting


Forged Fitting Pressure Ratings:
The pressure rating of forged pipe fittings follows standards such as ASME B16.11, which is different from the Class system of flanges. The pressure rating of socket weld fittings is usually divided into three levels: Class 3000, 6000, and 9000. Class 3000 is designed specifically for high-pressure conditions and is suitable for systems with thick walled pipelines, capable of withstanding harsh internal pressures. It is widely used in industries such as petroleum, chemical, and power, and is the foundation for ensuring the safe and leak free operation of high-pressure small-diameter pipeline systems.


316L Chemical&Mechanical Properties of F316L
Chemical Composition (wt %), ASTM A182:
Carbon (C): 0.03 max
Manganese (Mn): 2.00 max
Silicon (Si): 1.00 max
Chromium (Cr): 16.00 - 18.00
Nickel (Ni): 10.00 - 14.00
Molybdenum (Mo): 2.00 - 3.00
Mechanical Properties (Minimum), ASTM A182:
Tensile Strength: 485 MPa (70 ksi)
Yield Strength: 170 MPa (25 ksi)
Elongation: 30%
Hardness: 197 HBW max
